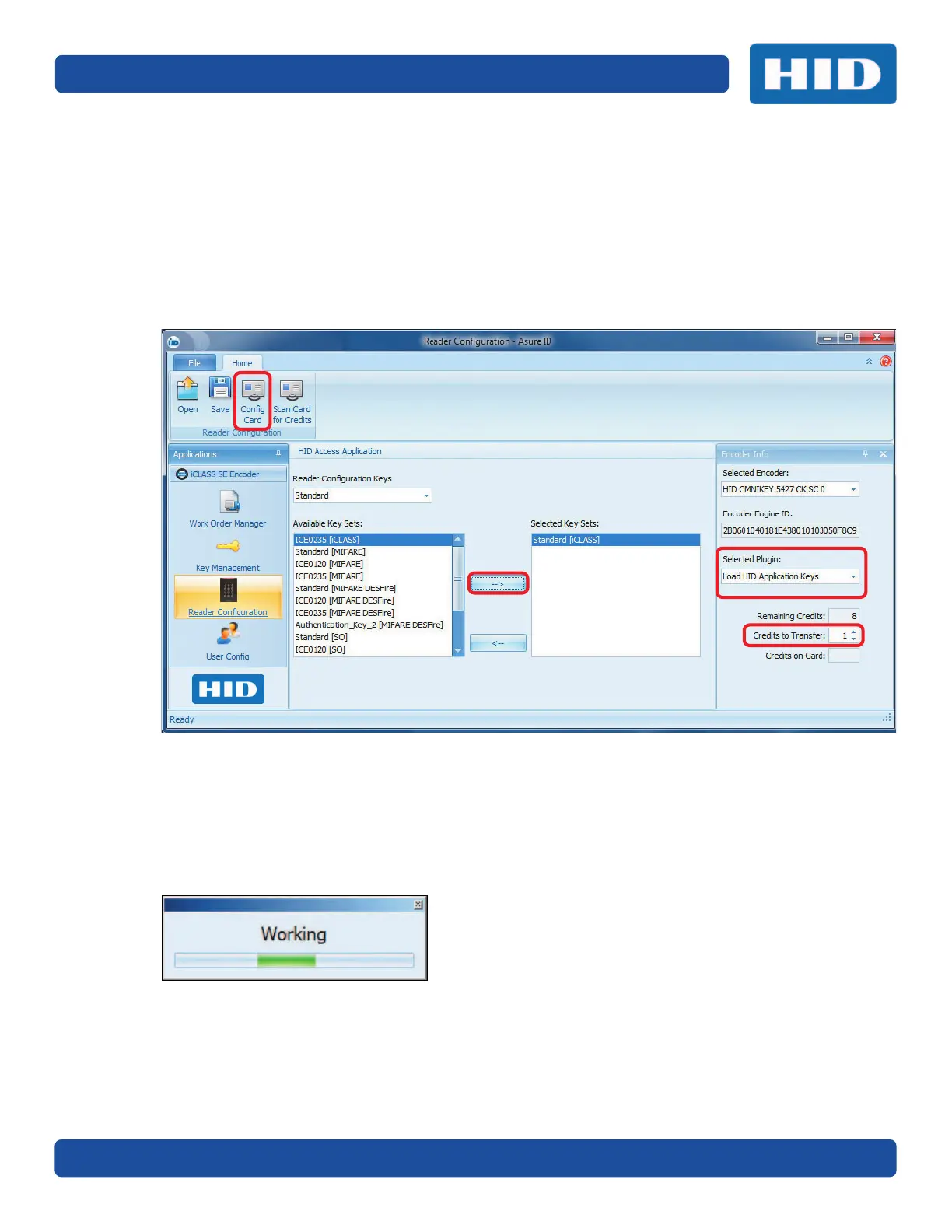

8.8 Load HID Application Keys
This Configuration Plugin is designed to load media and application keys to one or more Encoders.
1. Select Reader Configuration module.
2. Select Load HID Application Keys from the Selected Plugin drop-down menu.
3. Select the currently deployed Reader Configuration Keys from the drop-down menu.
4. Select the desired keys from the Available Key Sets (left) panel, click the arrow which appears
in the Selected Key Sets (right) panel.
5. Select the number of Credits in the Credits to Transfer field.
Note: Each Encoder configuration transaction is one credit. This is the number of Encoders that
can be configured using this configuration card.
6. When complete, place a Reader Configuration Config card on the Encoder.
7. Click Config Card.
8. A Working status displays.
