3. Configuring monitor settings:
Decoding Ability: Set the parameters according to the resolution of the front-end device. If the maximum
resolution of the front-end devices connected is 720P, then the Maximum Ability should be set as 720P.
Output Type: Configure the settings according to the mode that is supported by the monitor.
Division Mode: The standard-definition decoding module (BNC output) supports 1 / 4-division mode, while
the high-definition decoding module (VGA / DVI / HDMI output) supports 1 / 4 / 9 / 16-division mode.
Enable Audio: To enable the audio output.
Audio Window: Select the window for enabling audio output.
4. After having finished the above settings, click Save.
Quick Operation of Monitor Settings:
1. Press the Num + MON keys to select the monitor.
2. Press the Num + MULT keys to select the window-division on the monitor.
Example: You can input the “2+MON, 16+MULT” keys to realize 16-divison display on monitor 2.

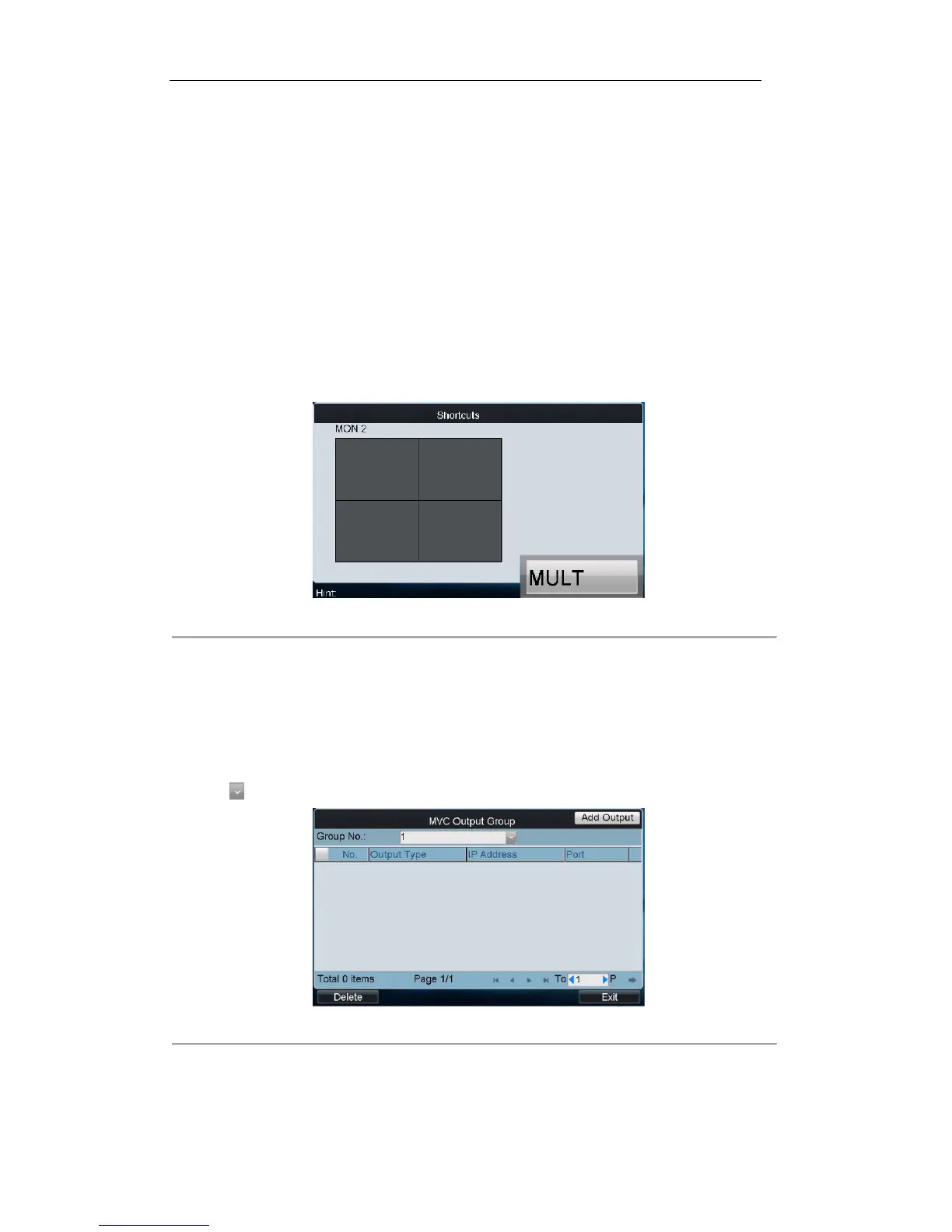

Figure 6. 12 Quick Operation of Monitor Settings
Setting Output Group
Steps:
1. Click Output Group to enter the MVC Output Group interface.
2. Click to select the group No. from the drop-down menu.
Figure 6. 13 MVC Output Group
3. Click the Add Output key to enter the Add Output interface:

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
