DS-1100KI Network Keyboard User Manual
107

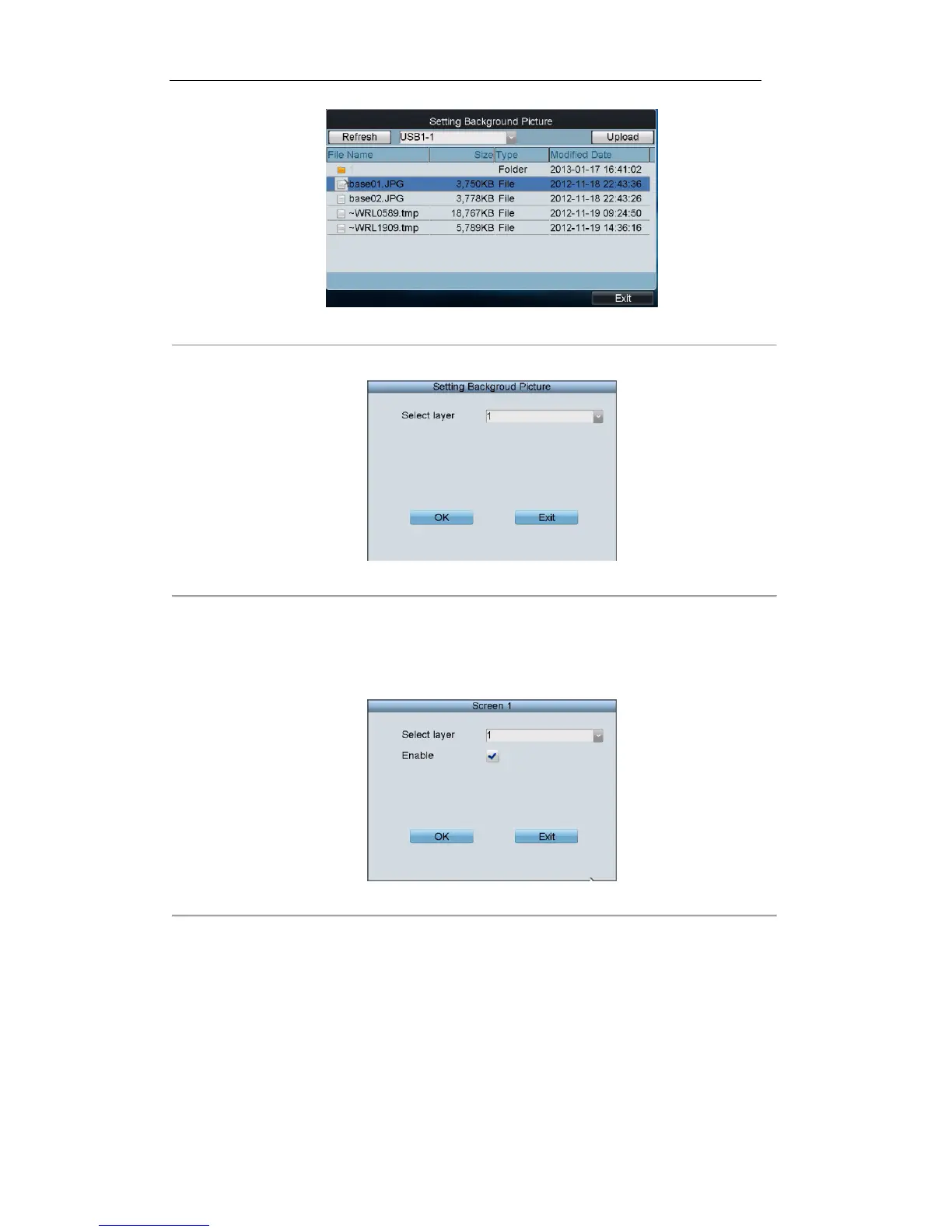

Figure 6. 25 Setting Background Picture Interface (1)
4. Select the picture file from the directory and click the Upload button to select the layer for the picture.
Figure 6. 26 Setting Background Picture Interface (2)
5. Select the layer from the drop-down list. Two base pictures can be uploaded.
6. Select OK to confirm the base picture settings.
7. On the screen settings interface, click the Open Picture button to select the layer and enable the configured
base picture to be shown on the screen display.
Figure 6. 27 screen settings interface
6.2 Control of Analog Matrix
6.2.1 Login
Before you start:
Make sure the analog matrix has been correctly connected to the keyboard before operation.

Table of Contents

Other manuals for HIKVISION DS-1100KI

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-1100KI and is the answer not in the manual?

HIKVISION DS-1100KI Specifications

General IconGeneral
Split keyboardNo
Keyboard layout-
Device interfaceRS-232 + RS-485 + RJ-45
Recommended usageOffice
Keyboard form factorMini
Connectivity technologyWired
Display typeTFT
Product colorBlack
Keyboard styleStraight
Ergonomic designYes
Product typeControl panel
Housing materialPlastic
Quantity per pack1 pc(s)
USB 2.0 ports quantity1
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Operating voltage12 V
Power source typeDC
Weight and Dimensions IconWeight and Dimensions
Depth110 mm
Width435 mm
Height193 mm
Keyboard weight2000 g
Keyboard dimensions (WxDxH)435 x 110 x 193 mm
