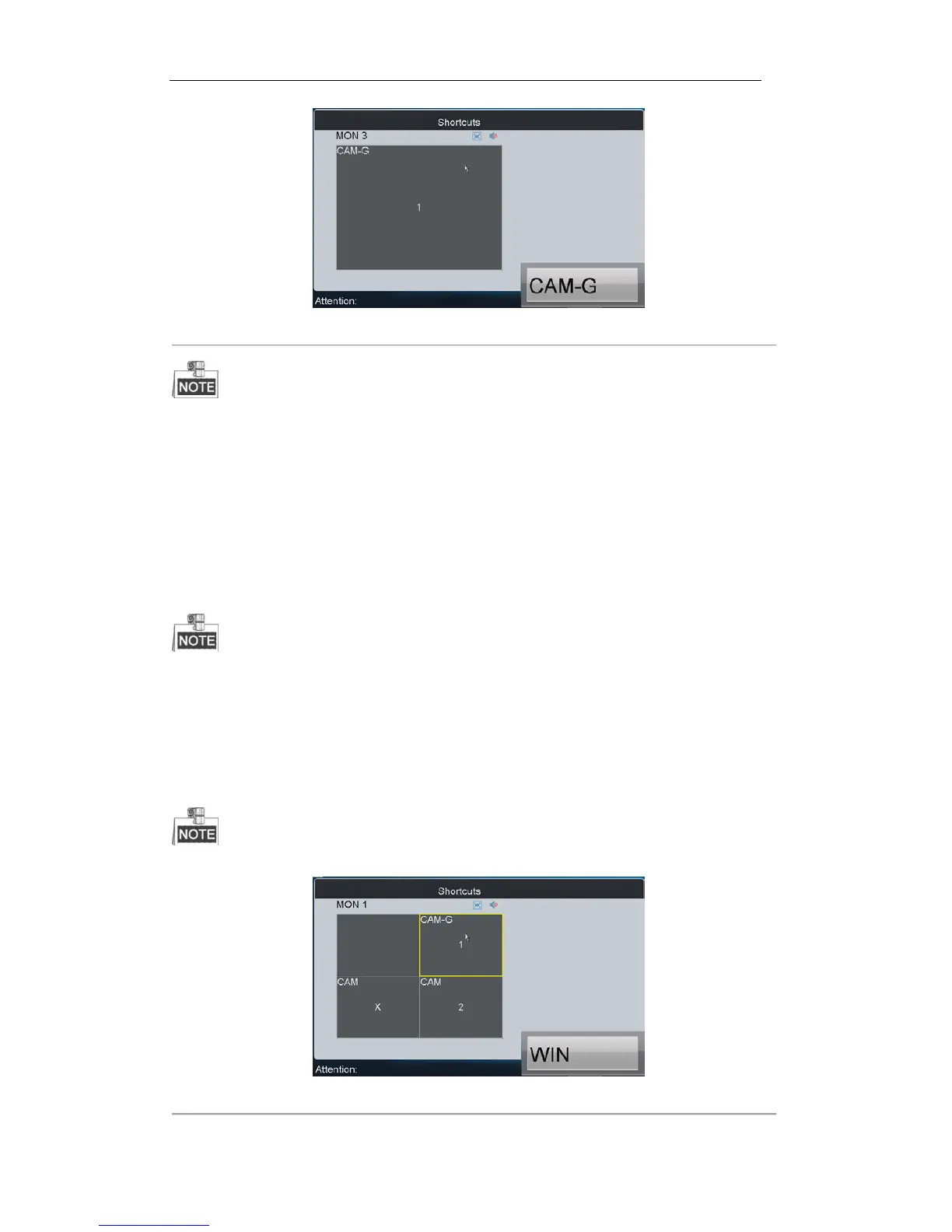

Figure 5. 6 Setting Camera Group to Monitor
 In the local live view mode when you input 0+MON keys, the multi-division display mode is not supported.
When you press the 0+CAM keys, it will stop the dynamic decoding of the current window.
 Corresponding error message will appear on the screen when you perform wrong operation.
5.3.4 Setting Camera Group to Window
The video signal from the camera group can be outputted to and displayed on the selected window of monitor in
cycle.
The dwell time for the cycle view is set in the input group setting interface, refer to 4.3.4 Setting Input
Group.
Steps:
1. Press the Num + MON keys to select the monitor.
2. Press the Num + WIN keys or directly touch on the screen to select the display window.
3. Press the Num + CAM-G keys to select the camera group.
Example: You can input the “1+MON, 2+WIN, 3+CAM-G” keys to decode the video signal from camera group 3 and
display it on window 2 of the monitor 1.
In the local live view mode when you input 0+MON keys, the cycle view function is not supported.
When you press the 0+CAM keys, it will stop the dynamic decoding of the current window.
Figure 5. 7 Setting Camera Group to Window

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
