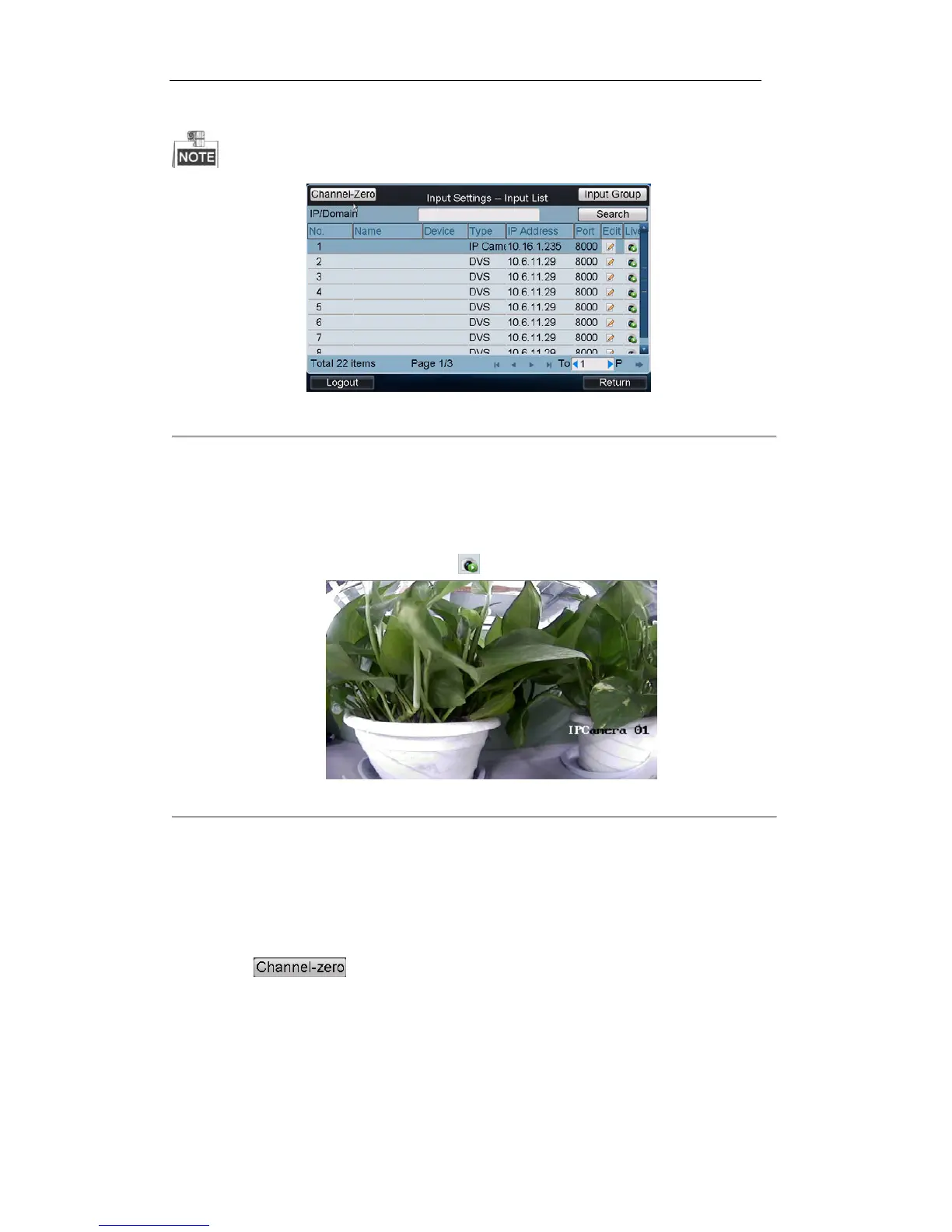

DS-1100KI Network Keyboard User Manual
59
Search button.
The camera name shown in the Camera Name is obtained from the corresponding device.
Figure 4. 41 Input Settings Interface
4.3.1 Starting Local Live View
Steps:
1. Select a camera from the input list and click the icon to start the local live view.
Figure 4. 42 Live View
2. You can press the NEXT or PREV button on the keyboard to view the video of the next or previous camera.
4.3.2 Live View by Channel-zero
Steps:
1. Click the button on the Input Settings-Input List interface to enter the Channel-zero
settings interface:

Table of Contents

Other manuals for HIKVISION DS-1100KI

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-1100KI and is the answer not in the manual?

HIKVISION DS-1100KI Specifications

General IconGeneral
Split keyboardNo
Keyboard layout-
Device interfaceRS-232 + RS-485 + RJ-45
Recommended usageOffice
Keyboard form factorMini
Connectivity technologyWired
Display typeTFT
Product colorBlack
Keyboard styleStraight
Ergonomic designYes
Product typeControl panel
Housing materialPlastic
Quantity per pack1 pc(s)
USB 2.0 ports quantity1
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Operating voltage12 V
Power source typeDC
Weight and Dimensions IconWeight and Dimensions
Depth110 mm
Width435 mm
Height193 mm
Keyboard weight2000 g
Keyboard dimensions (WxDxH)435 x 110 x 193 mm
