DS-1100KI Network Keyboard User Manual
132
Keyboard.
 Local Config File: Use and edit the configuration file of the keyboard which has been exported to PC or local
storage device via U-flash disk.
 Remote Config File: Operate and edit the configuration file of the keyboard which has been exported to PC
or local storage device via network.
 Update Keyboard: Upgrade the keyboard via network.
8.3.1 Login by Local Configuration File
Before you start
Make sure the configuration file (kbCfg.bin) of the keyboard has been exported to your PC or local storage device.
Please refer to Chapter 3.5.4 Importing/Exporting Configuration File for exporting the config file.
Steps:

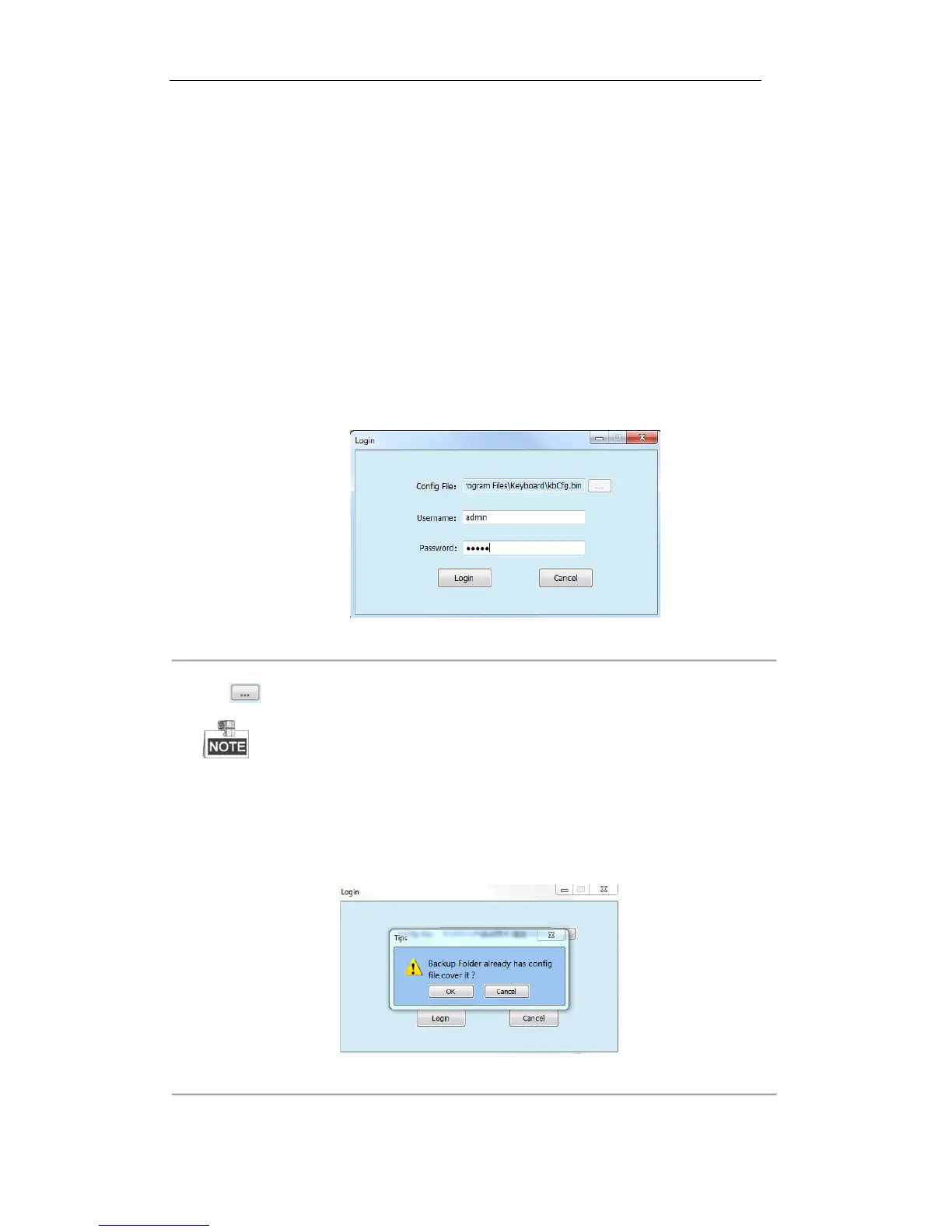

1. Click Local Config File icon to enter the following Login interface:
Figure 8. 2 Login by Local Configuration File
2. Click to select the destination directory of the Config File from your PC or local storage device.
The Config File must be in kbCfg format.
3. Input the admin and password for login.
4. Click Login.
The configuration file will be backed up in the backup folder by default. If the file has already existed in the backup
destination folder, corresponding message box will pop up. Click OK to replace the existing file, or Cancel to keep
the original file.
Figure 8. 3 Message Box Interface

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
