HIKVISION DS-1100KI User Manual

DS-1100KI Network Keyboard User Manual
69
5. Click Search to search the matched video files.
(1) The searching results can be viewed on the Playback File List interface.

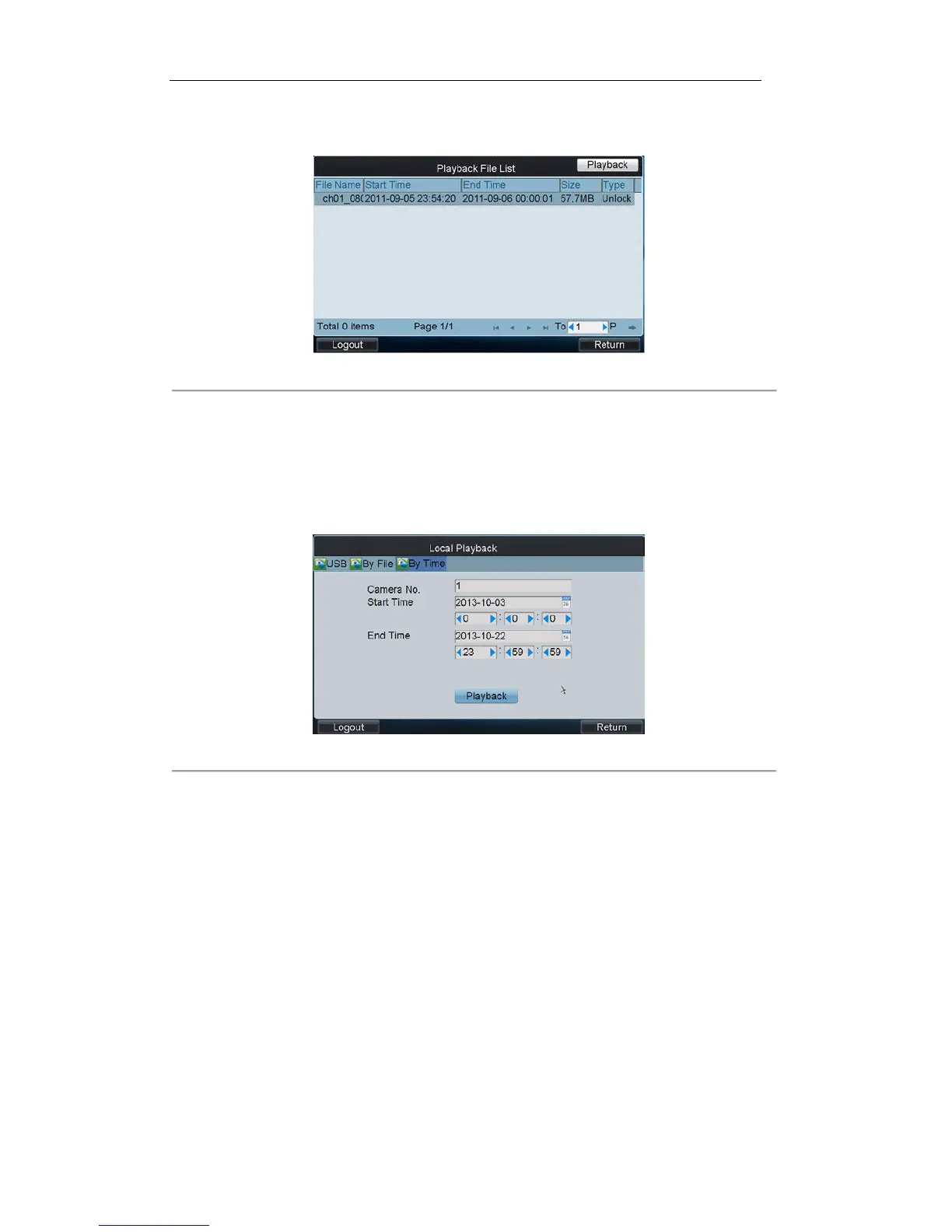

Figure 4. 63 Playback File List
(2) Select the file for playback from the list and click Playback to play back the video file.
4.6.3 Playback by Time
1. Click the By Time tab on the Local Playback interface to enter the Playback by Time interface.
Figure 4. 64 Playback by Time
2. Input the Camera No. for playback.
3. Set the start time and end time of the video files for playback.
4. Click Playback to play back the recoding file.
4.7 Advanced Settings
Click Advanced on the main interface to enter the Advanced Settings interface where you can configure the
password, AUX key, live view performance and PTZ speed control settings.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
