DS-1100KI Network Keyboard User Manual
104

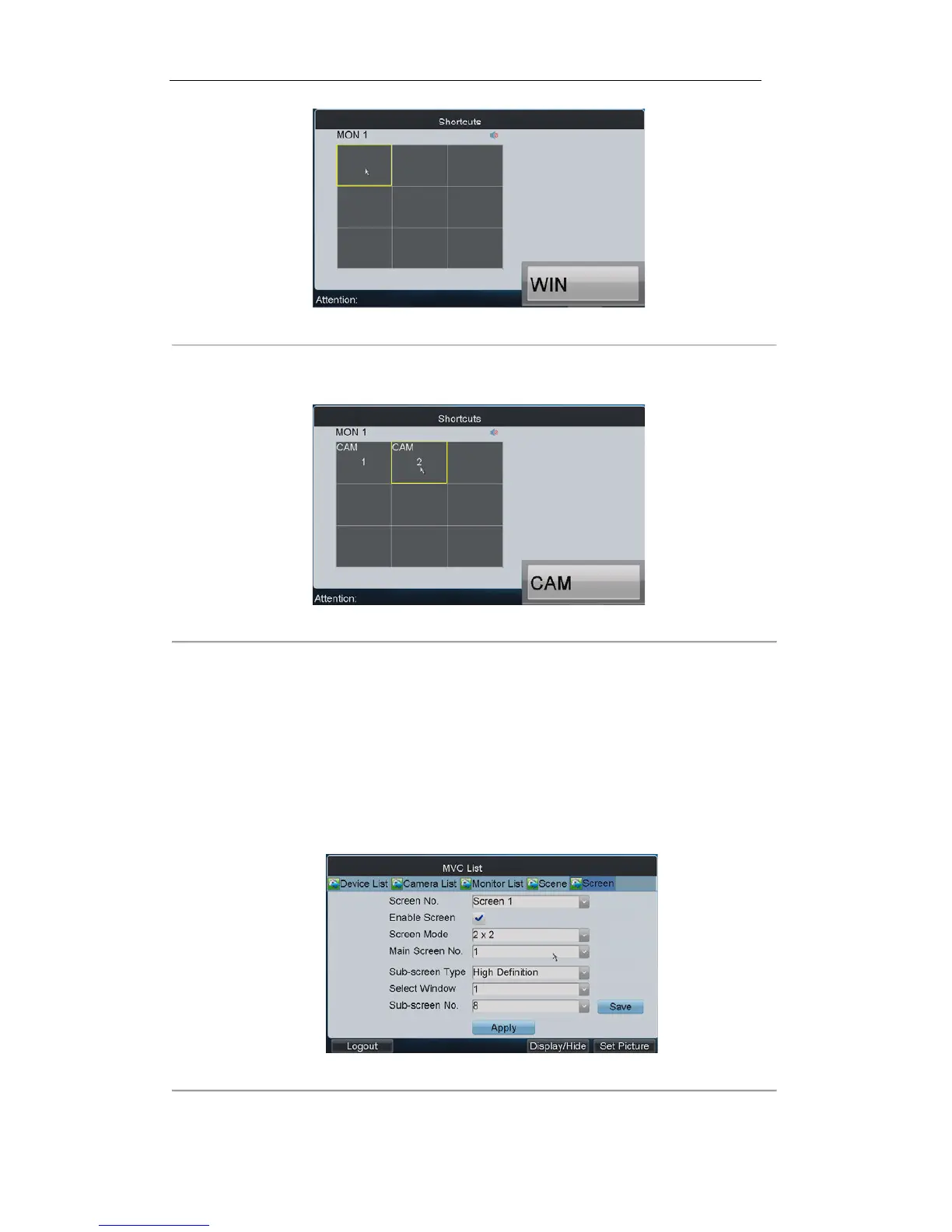

Figure 6. 19 Shortcuts Operation Interface
5. Press the Num + WIN keys or click on the window to select the window No.
6. Press the Num + CAM keys to select the camera No. of which the video is displayed on the selected window.
Figure 6. 20 Shortcuts Operation Interface
7. Repeat Step4~6 to configure the screen settings for the other windows of the scene.
6.1.6 Screen Settings
Configuring Screen Settings
Click the Screen tab to configure video display on screen.
Figure 6. 21 Configuring Screen Settings
Steps:

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
