HIKVISION DS-1100KI User Manual

DS-1100KI Network Keyboard User Manual
21

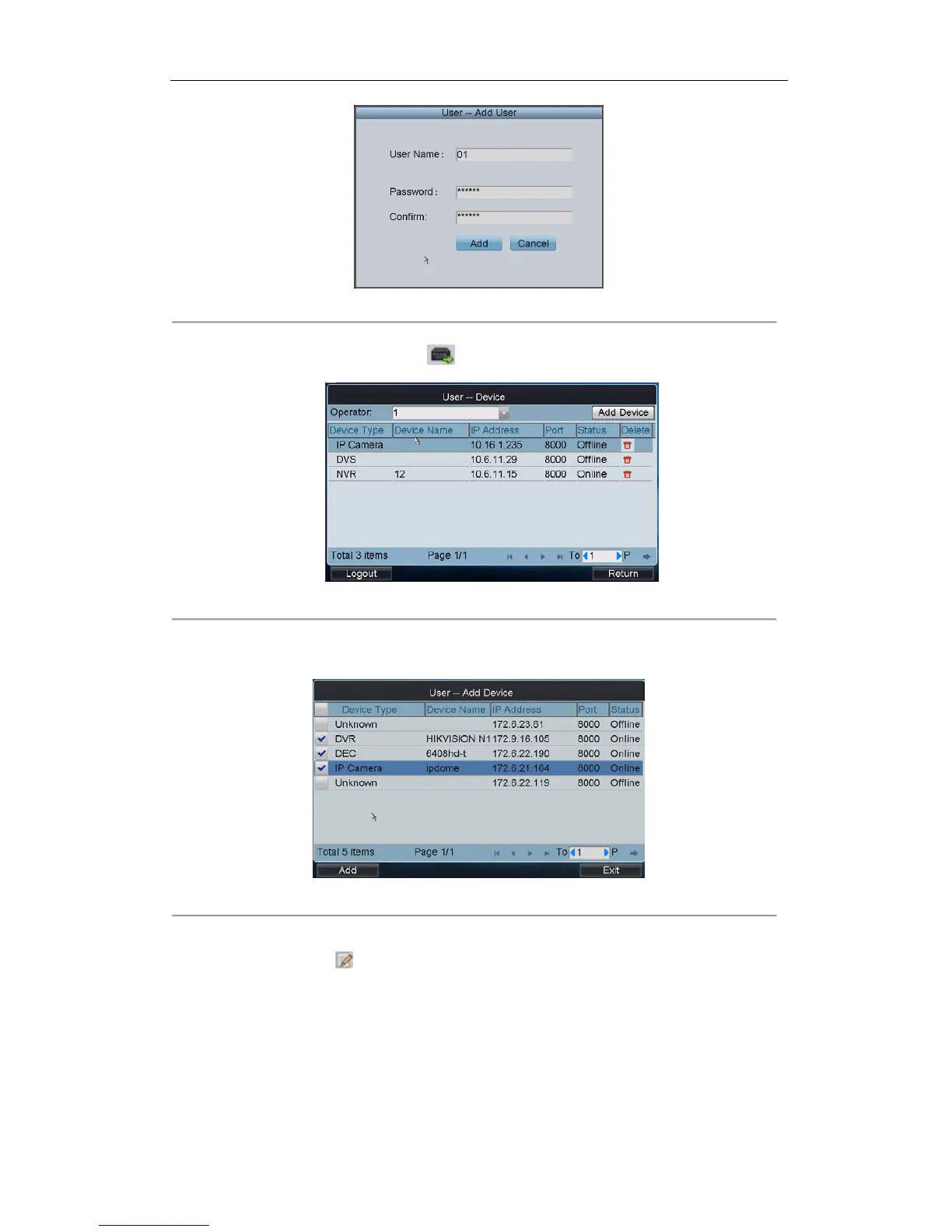

Figure 2. 17 User-Add User
11. Return to the User List interface, and click of the selected user to enter the User-Device interface.
Figure 2. 18 User-Device
12. Click Add Device to enter the User-Add Device interface. Select the device by clicking the checkbox, and click
Add to add the device for the current user.
Figure 2. 19 User-Add Device
13. The added device (s) for the current user can be displayed on the User List interface.
14. You can directly click the (Login) icon of a user to switch its operating interface.
Or you can click Logout on the admin main interface, the message box “Logout Now?” will pop up. Click Yes
to confirm the logout, or No to cancel the operation.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
