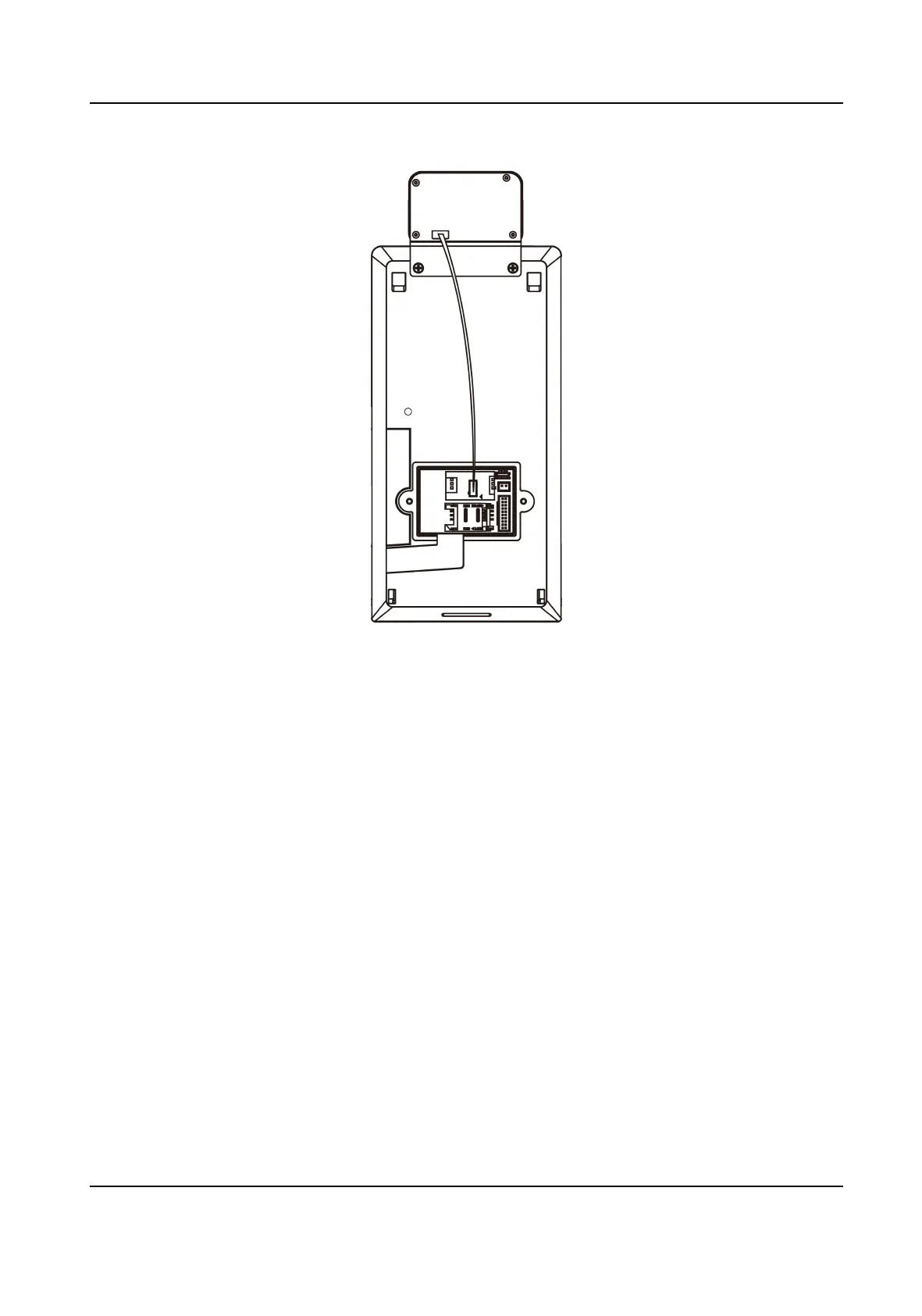

Figure 3-1 Connect Thermographic Module
3. Use 5 supplied screws (4_KA4×22-SUS) to secure the mounng plate on the gang box.
4. Route the cable through the cable hole of the mounng plate, and connect to corresponding
external devices' cables.
5. Align the device with the
mounng plate and hang the device on the mounng plate. Make sure
the two sheets on each side of the mounng plate have been in the slots at the back of the
device.
