3.5 PASS or FAIL Determination
────────────────────────────────────────────────────


Out
p
ut volta
g
e
Time
Comparative
volta
g
evalue
Flashin
g
A
pproximately 5 seconds


Out
p
ut volta
g
e
Time
Flashin
g
Testin
g
time when it set u
p
Comparative
volta
g
evalue
NOTE

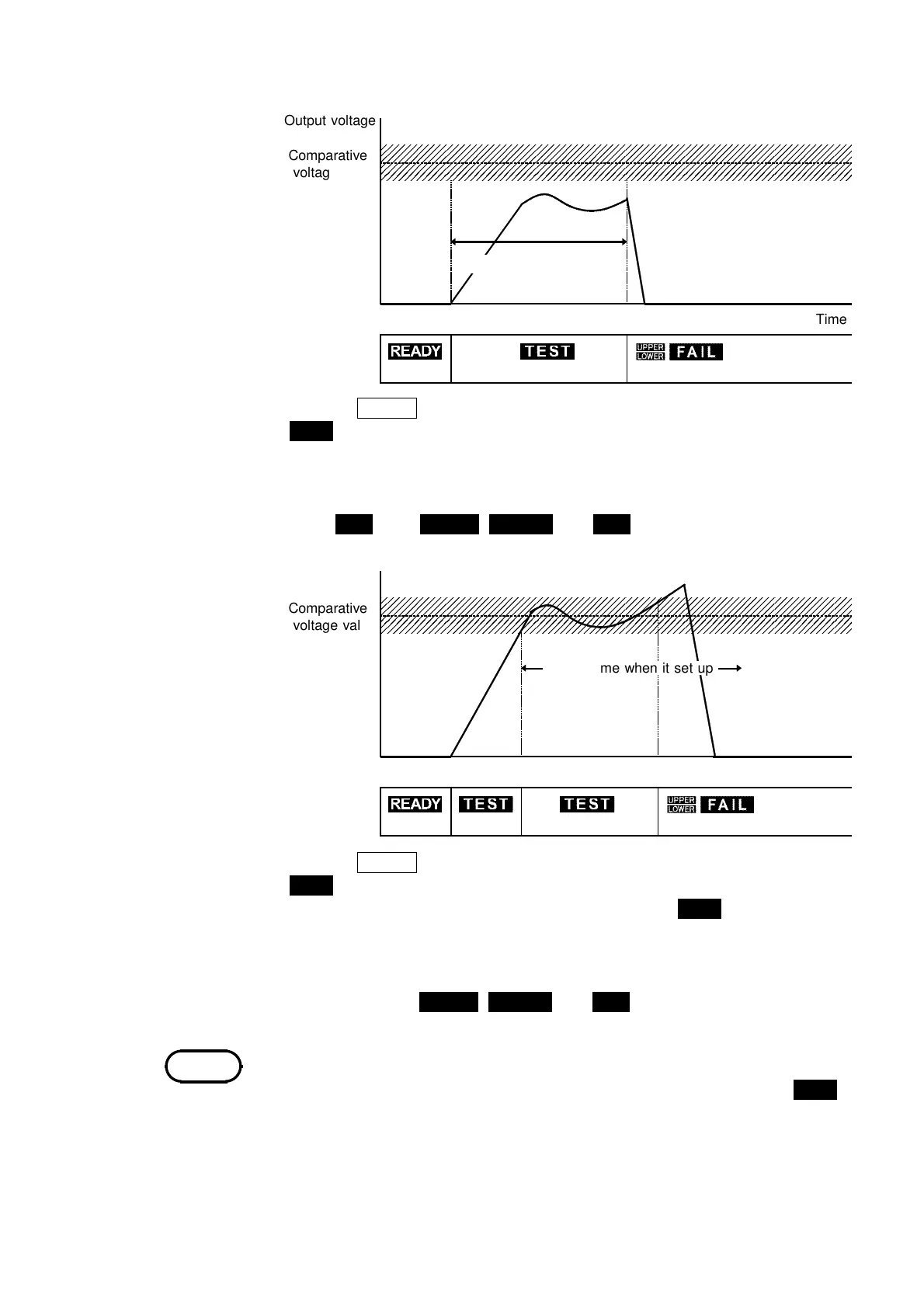

FAIL Screening Using the Comparative-Voltage Value
(1) Press the
START
key to start a test.
(2) TEST will flicker until the output voltage switches to the comparative-voltage
range.
(3) If the output voltage fails to switch to this range in 5 seconds, the unit switches
to the FAIL state and stops outputting a voltage.
(4) In the FAIL state, UPPER, LOWER,andFAIL light up to indicate that an
improper voltage has been output.
(1) Press the
START
key to start a test.
(2) TEST will flicker until the output voltage switches to the comparative-voltage
range. When the output voltage switches to this range, TEST lights up and the
subtraction timer begins counting down the test time.
(3) If the output voltage deviates from the comparative-voltage range during the test,
the unit immediately stops outputting a voltage and the test is terminated.
(4) In the FAIL state, UPPER, LOWER,andFAIL light up to indicate that an
improper voltage has been output.
･
If the optional "Voltage Comparator Position" function is set to "1: End of test
time", since the unit shifts to the TEST state whenever voltage is output, TEST
does not flash before the output-voltage value reaches the comparative-voltage
value range.
･
If the optional "Voltage Comparator Position" function is set to "1: End of test
time", this function checks whether the output voltage is within the standard
voltage range only when the test is terminated.
