Appendix 1 Precautions for Making Custom Test Leads
A1
Appendix

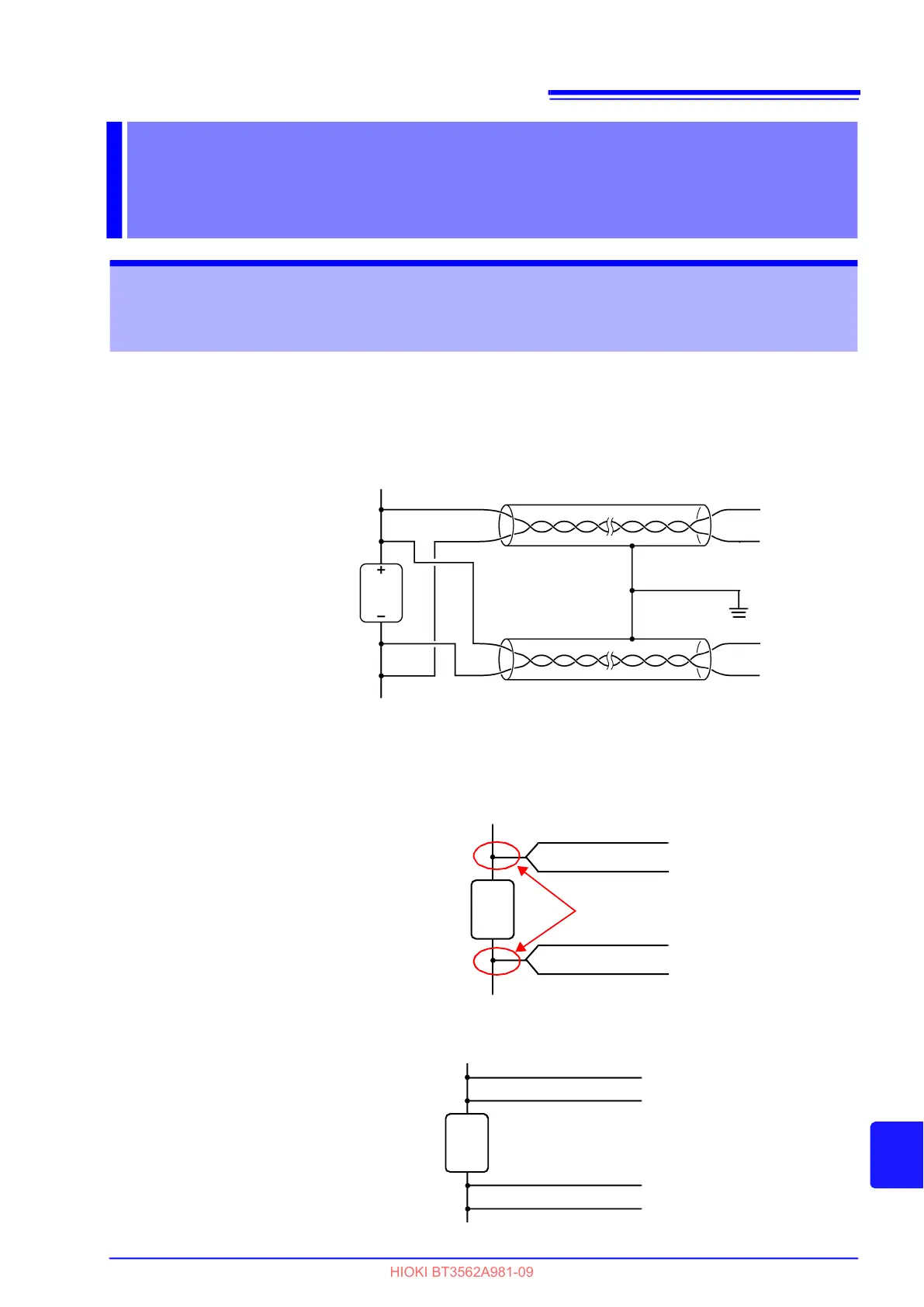

Bear the following in mind when making custom test leads.
Be sure to twist together the SOURCE-H and L leads, and the SENSE-H and
L leads. Also, connect the shields of all leads to the ground.
The four-terminal design requires that all four terminals be used for measure-
ment. Attempting to measure with two terminals (the two lines in the middle)
may result in unstable or inconsistent measurements due to the effects of test
lead contact resistance.
When connecting to a test object, connect SOURCE-H and SOURCE-L
toward the outside, and SENSE-H and SENSE-L toward the inside.
Appendix
Appendix 1 Precautions for Making Custom Test
Leads
SOURCE-H
SENSE-H
SENSE-L
SOURCE-L
Shield
Shield
SOURCE-H
SOURCE-L
SENSE-H
SENSE-L
H
L
H
L
SOURCE-H
SENSE-H
SENSE-L
SOURCE-L
+
-
Wrong Connection
Probe tip and connection points
Resistance
(Battery)
SENSE-H
SOURCE-H
SOURCE-L
SENSE-L
+
-
Resistance
(Battery)
