Appendix 9 Test Lead Options
A15
Appendix

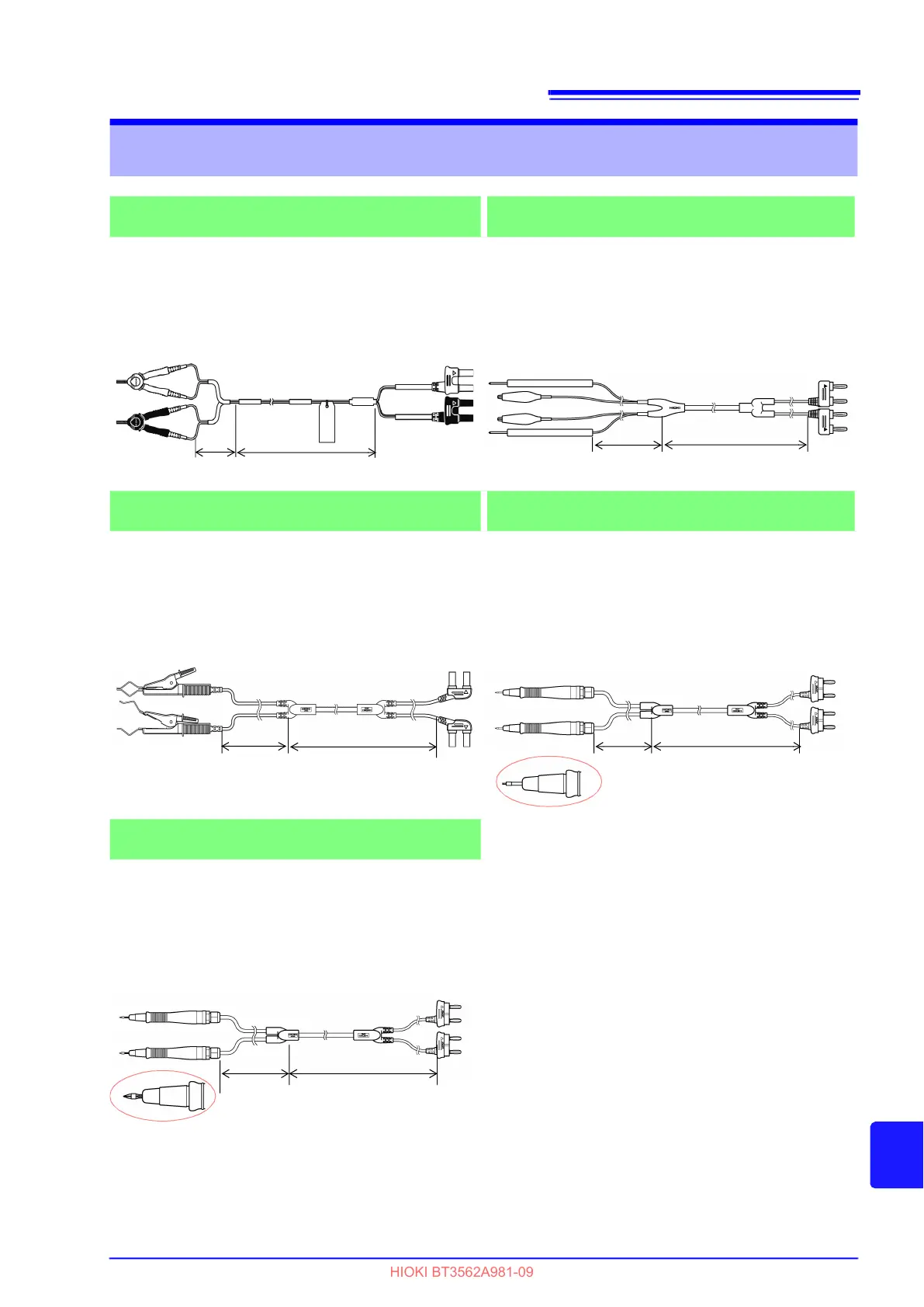

Appendix 9 Test Lead Options
Model L2107 CLIP TYPE LEAD
(60 V DC or less)
Model 9453 FOUR TERMINAL LEAD
(60 V DC or less)
These leads have clip tips. Four-terminal measure-
ments are provided just by clipping on to the test ob-
ject.
Maximum clip diameter: 8 mm
The SOURCE leads of this four-terminal lead set have
covered alligator clips, and the SENSE leads have
standard test probes. Use for measuring printed cir-
cuit board pattern resistance, and where SOURCE
and SENSE leads need to be connected separately.
Bifurcation-to-probe length: approx. 300 mm
Plug-to-bifurcation length: approx. 800 mm
Model 9467 LARGE CLIP TYPE LEAD
(50 V DC or less)
Model 9770 PIN TYPE LEAD
(60 V DC or less)
These leads are designed to attach to test object with
large diameter contacts. Four-terminal measurements
can be made just by clipping.
Bifurcation-to-probe length: approx. 250 mm
Plug-to-bifurcation length: approx. 850 mm
Maximum clip diameter: approx. 29 mm
Even on flat contact points that cannot be clipped to,
or on test objects with small contacts such as relay
terminals or connectors, four-terminal measurements
are available by just pressing.
Bifurcation-to-probe length: approx.250 mm
Plug-to-bifurcation length: approx.400 mm
Pin base:  1.8 mm
Model 9771 PIN TYPE LEAD
(60 V DC or less)
The tips have a four-terminal design developed for
floating-foot testing of ICs mounted on boards. Resis-
tance can be correctly measured even with small test
objects.
Bifurcation-to-probe length: approx. 250 mm
Plug-to-bifurcation length: approx.400 mm
Between pin bases: 0.2 mm
745 mm
130 mm
300 mm
800 mm
850 mm250 mm
400 mm250 mm
Tip pin
*Tip pins can be exchanged ahead.
400 mm250 mm
Tip pin
*Tip pins can be exchanged ahead.
HIOKI BT3562A981-09
