Chapter 2 Measurement Preparations
This procedure describes instrument preparations such as making connections and turning power on.
Measurement
Preparations
Chapter 2

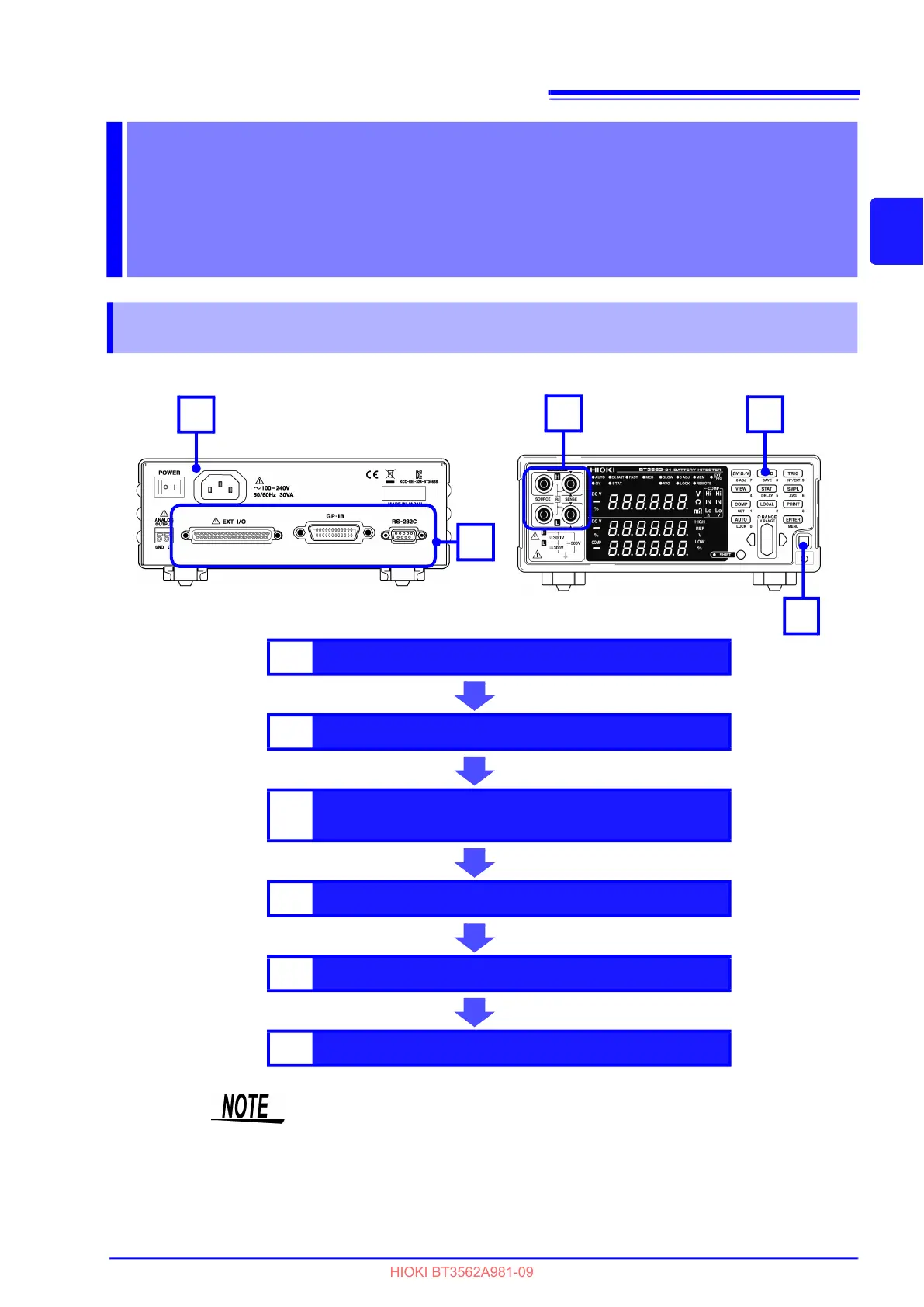

2.1 Preparation Flowchart
Rear Panel
2
1
4
(p.21)(p.20)
(p.22)
3
5
Front Panel
1
Connecting the power cord.
(p.20)
2
Connect the test leads to the instrument.
(p.21)
3
Connect the EXT I/O connector and inter-
face connector.
(p.102)
4
Turn the power on.
(p.22)
5
Set measurement settings.
(p.25)
6
Start measurement.
Verify that the instrument’s line frequency is correctly set when using it for the
first time and after initialization following repair or recalibration.
See "2.5 Selecting the Line Frequency" (p.24).
