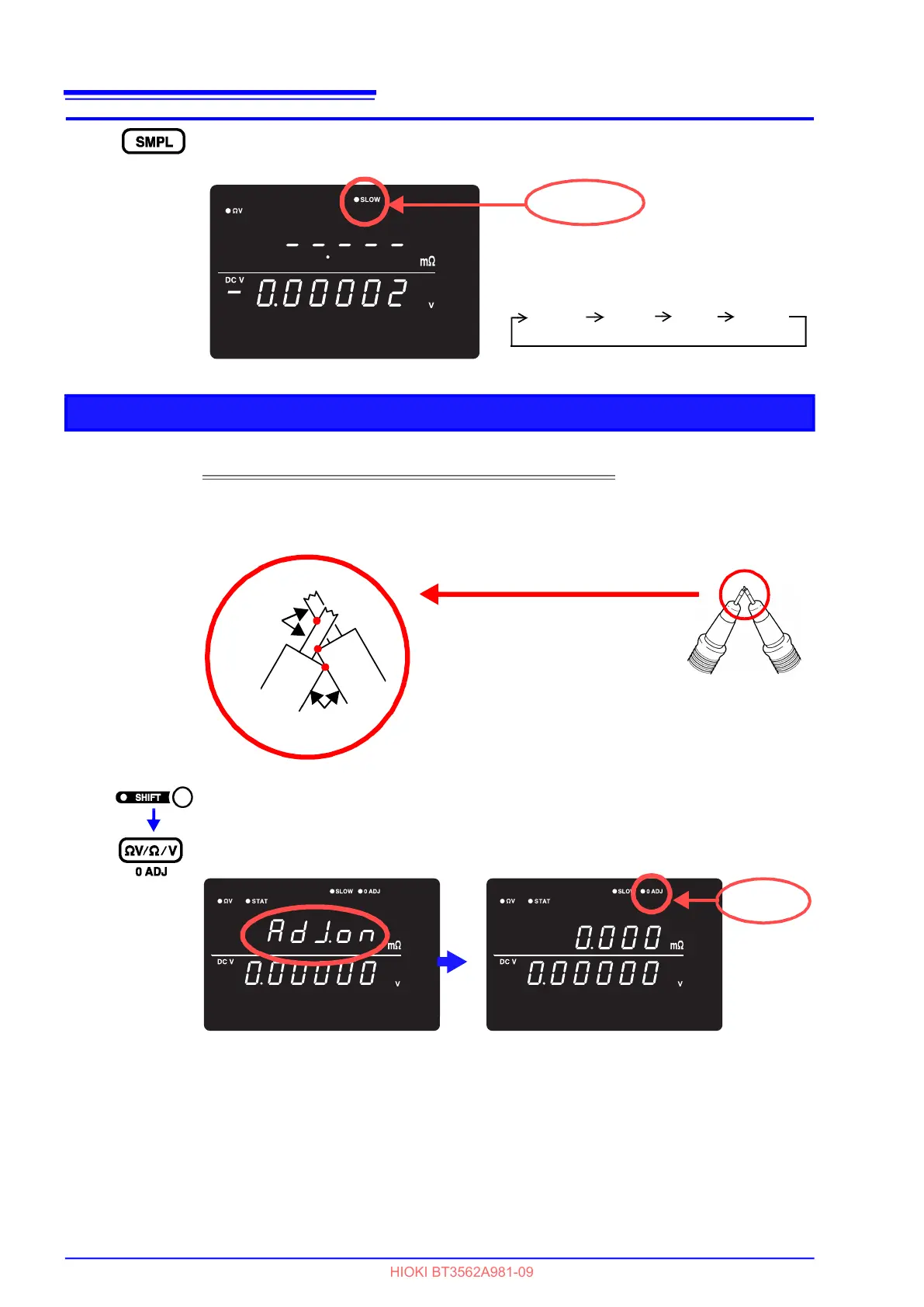

3.2 Basic Measurement Example
28
9
Set the sampling rate. (Here, SLOW is selected.)
See "3.5 Setting Sampling Rate" (p.34).
The sampling rate changes each time
you press this key.
EX.FAST
FAST
SLOW
MED
SLOW lit
Zero-Adjustment
10
Short the test leads together.
Proper Zero-Adjustment is not possible with incorrect wiring.
See "3.6 Zero-Adjust Function" (p.35).
Example: Model 9770 Pin Type Lead
11
(The SHIFT indicator lights up.)
Execute Zero-Adjust.
After zero-adjustment, the display returns to the measurement mode.
“Err.02” appears if Zero-Adjustment fails. Verify that the test lead tips are properly shorted,
and try zero-adjustment again.
Bring the pins into contact at 3 points.
• Internal conductor and internal conductor
• Internal conductor and external conductor
• External conductor and external conductor
Model 9770
Internal
conductor
External
conductor
0ADJ lit
To Next Page
