3.2 Basic Measurement Example
27
3
Chapter 3 Measurement

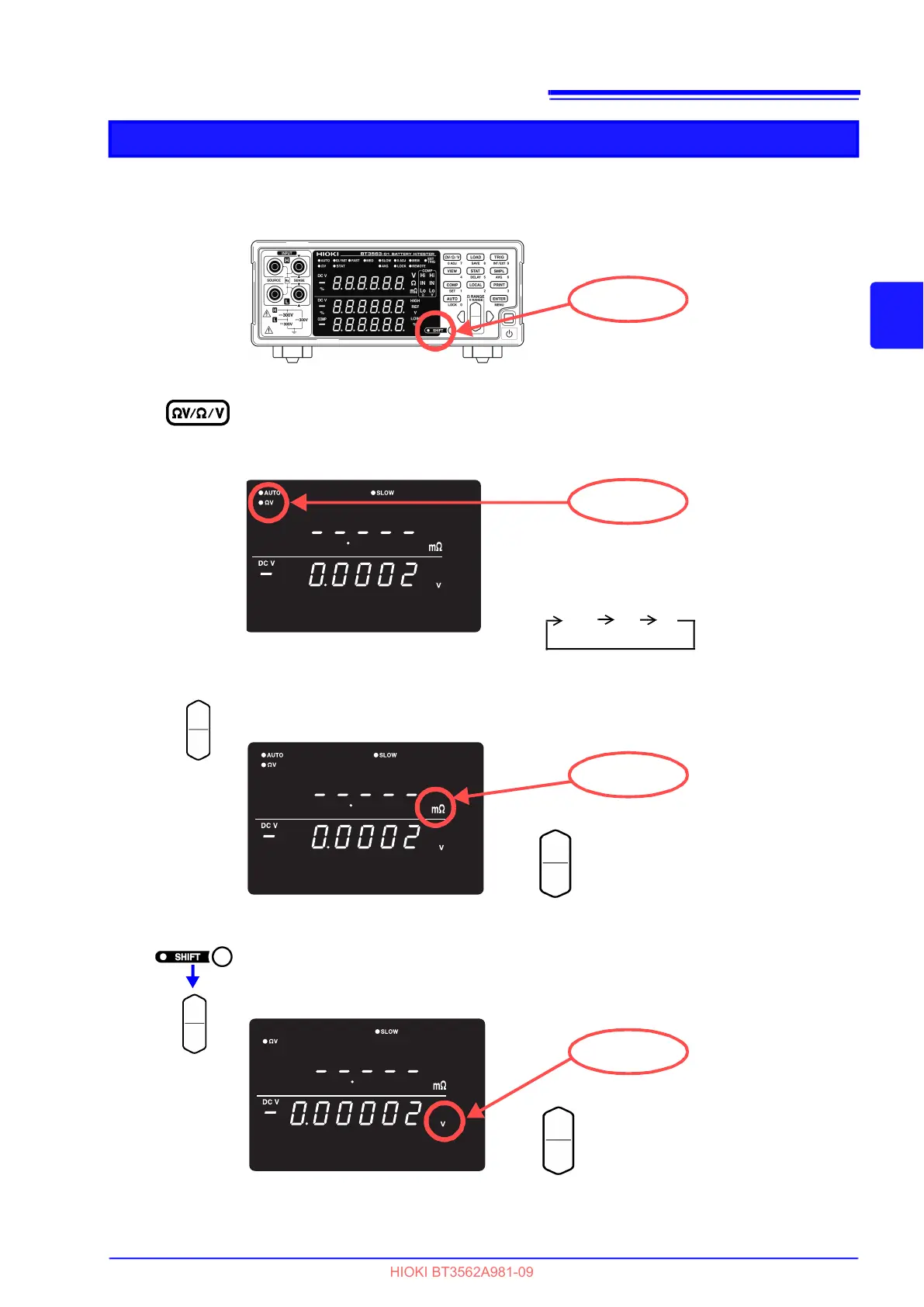

Instrument Settings
5
Confirm the SHIFT lamp is not lit.
If this is lit, press the SHIFT key to turn it off.
6
Select the Resistance Measurement mode.
(Here, resistance and voltage measurement is selected.)
See "3.3 Selecting Measurement Mode" (p.30).
7
Set the measurement range. (Here, 30 m range is selected.)
See "3.4 Setting Measurement Range" (p.31).
8
(SHIFT Lamp lit)
Set the voltage measurement range. (Here, the 6 V setting has been selected.）
See "Voltage measurement range" (p.32)
SHIFT not lit
The measurement mode changes each time
you press this key. Select to measure only
resistance, or V to measure only voltage.
V
V
V lit
Increase the resistance measurement range.
Decrease the resistance measurement range.
m lit
Increase the voltage measurement range.
Decrease the voltage measurement range.
V lit
To Next Page
