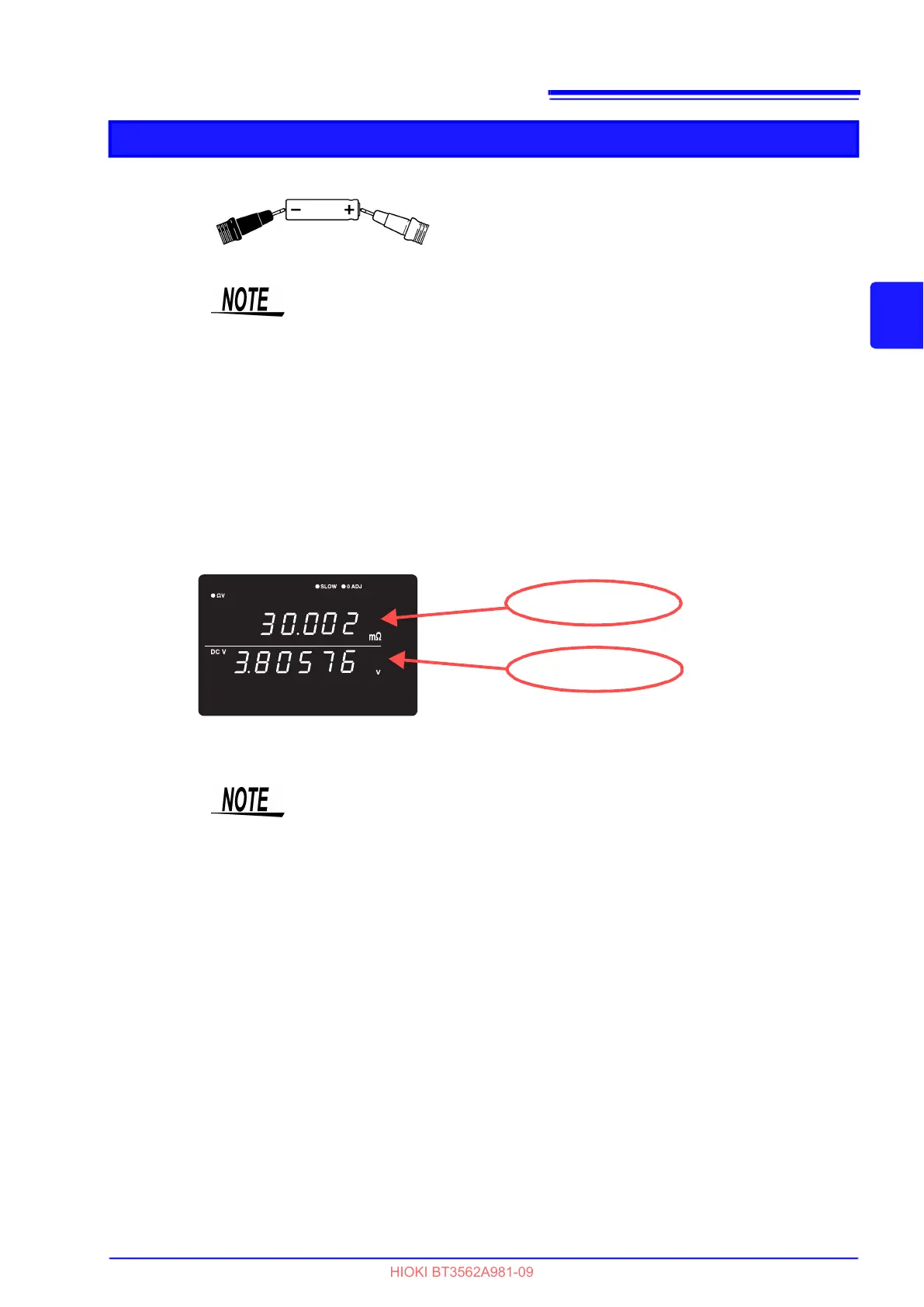

3.2 Basic Measurement Example
29
3
Chapter 3 Measurement
Measurement
12
Connect the test leads to a battery.
Open-terminal voltages for the instrument are as follows:
3 m
and 30 m ranges: 25 V peak
300 m
range: 7 V peak
3
to 3000 range: 4 V peak
These voltages derive from the load associated with charging the 1.2 F
capacitor inside the instrument.
• The open-terminal voltage for the 3 m
, 30 m, and 300 m ranges peaks at
4 V approximately 500 ms after the terminal is placed in the open state.
• When building a measurement line using scanners, use a relay with a dielec-
tric strength that is greater than or equal to the open-terminal voltage for the
range being used.
13
Read the measured resistance and voltage.
See "3.7 Displaying Measurement Results" (p.38).
See "10.3 Error Display" (p.191).
Measured Resistance
Measured Voltage
Please refer to "Before returning for repair." of "Measured value is unstable."
(p.190) as a measurement and attention.
To Next Page
