4.1 Comparator Function
58
In V mode, both resistance and voltage measurement values are displayed.
Although comparator setting values are not normally displayed when the com-
parator is enabled, they can be displayed for confirmation by the display switch-
ing function.

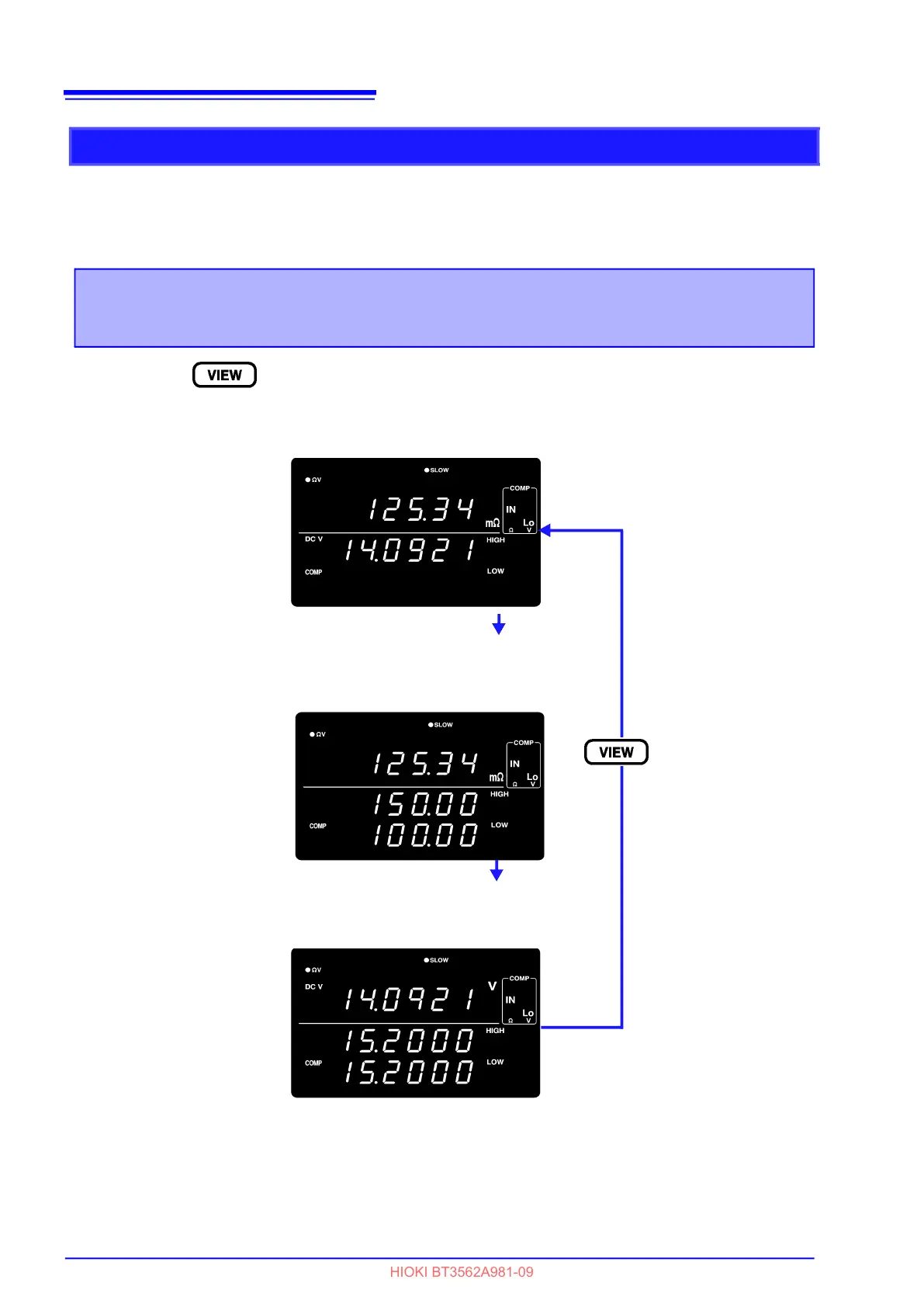

Switching Between Measurement Value and Comparator Setting Displays
Example:
Resistance: Upper threshold value 150.00 m
, Lower threshold value 100.00 m
Voltage: Upper threshold value 15.2000 V, Lower threshold value 15.0000 V
Press this key to switch the display between measurement values
and comparator setting values.
Measurement display switching is available only with the comparator
enabled, and in the V mode.
Use it to confirm comparator setting values.
Resistance and voltage measurement display
(Shows resistance and voltage measurement values simultaneously)
Resistance measurement and comparator
display (Shows resistance measurement and
resistance comparator setting values)
Voltage measurement and comparator dis-
play (Shows voltage measurement and volt-
age comparator setting values)
