Appendix 9 Test Lead Options
A16

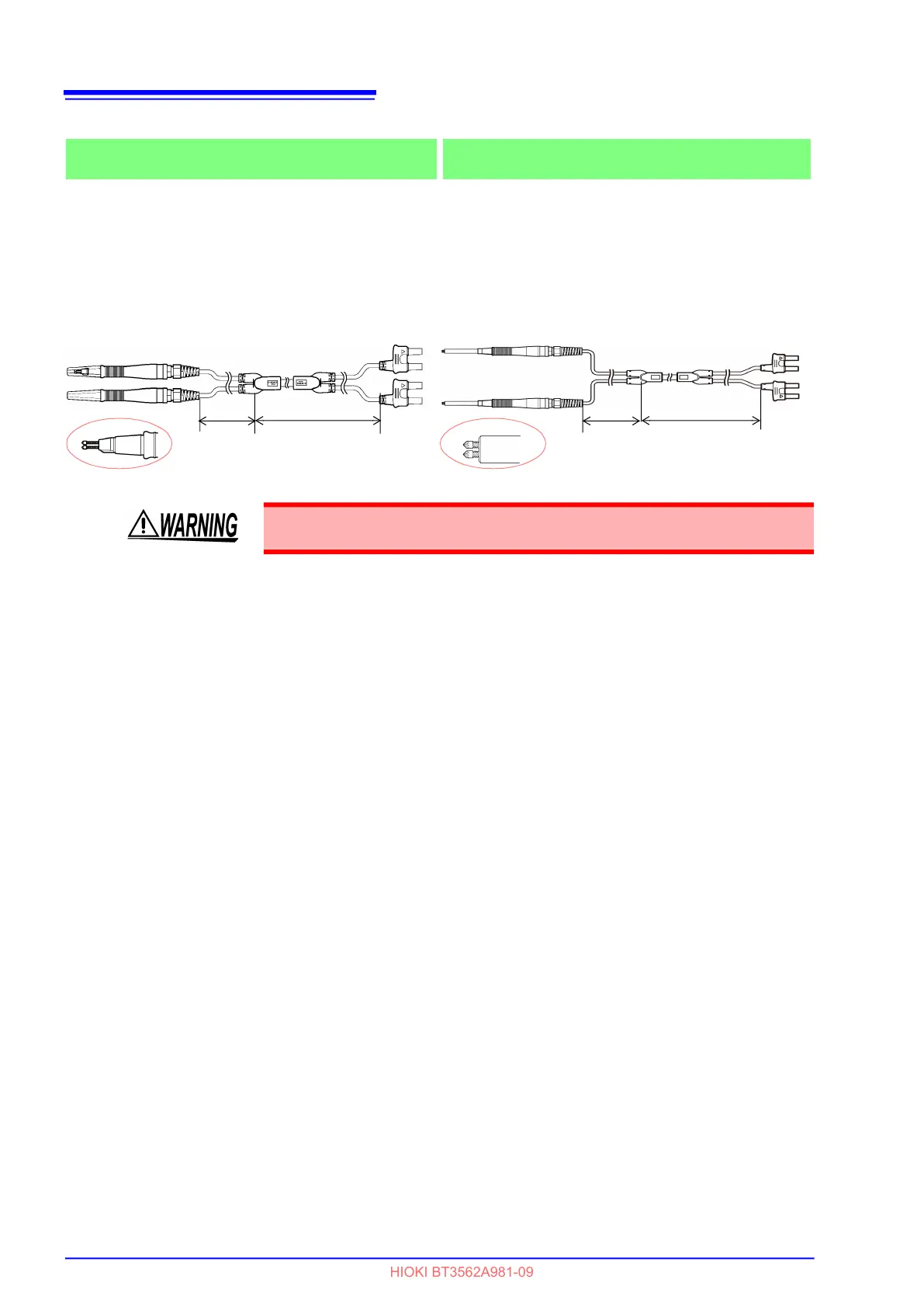

Model L2100 PIN TYPE LEAD
(1000 V DC or less)
Model L2110 PIN TYPE LEAD
(1000 V DC or less)
These high-voltage pin-shaped leads incorporate a
four-terminal design and can be used with up to 1000
V DC, making them ideal for use with high-voltage
battery packs and cells with high input-to-ground volt-
ages. The parallel two-pin type tips provide stable
contact with the target object.
Bifurcation-to-probe length: approx. 300mm
Plug-to-bifurcation length: approx. 850 mm
Between pin bases: 2.5 mm
hese high-voltage pin-shaped leads incorporate a
four-terminal design and can be used with up to 1000
V DC, making them ideal for use with high-voltage
battery packs and cells with high input-to-ground volt-
ages. The parallel two-pin type tips provide stable
contact with the target object.
Bifurcation-to-probe length: approx. 750 mm
Plug-to-bifurcation length: approx. 850 mm
Between pin bases: 2.5 mm
850 mm300 mm
Tip pin
*Tip pins can be exchanged ahead.
850 mm750 mm
Tip pin
*Tip pins can be exchanged ahead.
Use measurement leads at or below their rated voltage.
HIOKI BT3562A981-09
