4.1 Comparator Function
49
4
Chapter 4 Applied Measurement
8

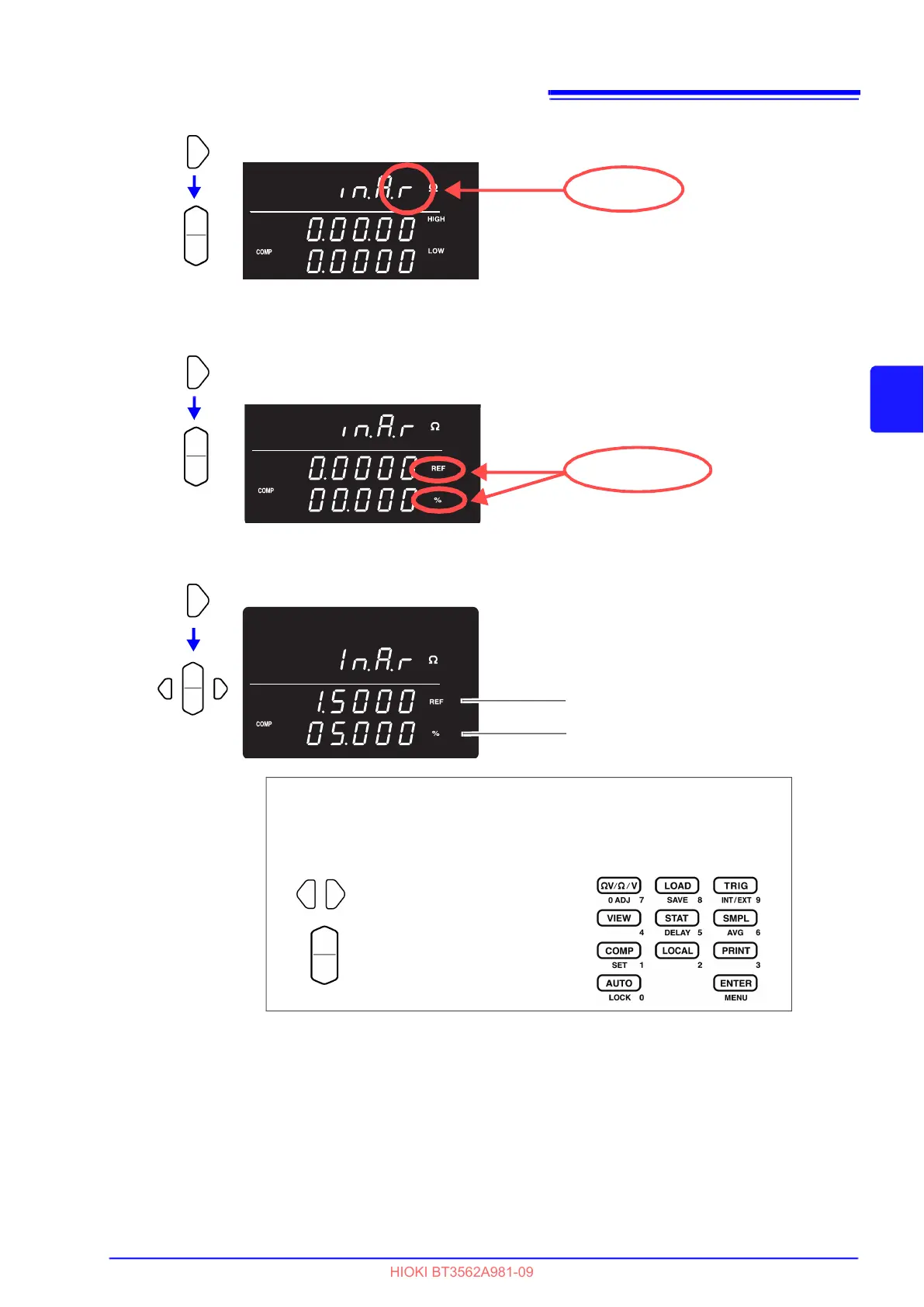

Press so that the indicated position blinks, and select resistance.
r............. Resistance
u ............ Voltage
9
Press so that the indicated position blinks, and select the comparison method for
the comparator (here, REF/%).
HIGH, LOW..... Compare by upper and lower thresholds (default setting)
REF, % ............ Compare by reference value and tolerance
10
Switch to the Ref/% threshold setting display, and specify the thresholds.
To enter the current measurement as the setting value: AUTO key
(Press on a screen other than the upper/lower threshold setting display.)
To enter the result of statistical calculation as the setting value: STAT key
(Press on a screen other than the upper/lower threshold setting display.)
See " Upper and Lower Thresholds Setting (by Reference Value and Tolerance)" (p.54).
r flashing
REF & % flashing
Or
numeric
keypads
For this example,
Reference value: 1.5
Tolerance: 5%
Select a digit
Select numerical value
Select a digit to change by mov-
ing the blinking location, then se-
lect the new numerical value.
Using the RANGE keys: Using the numeric keypads:
Press the numeric keys cor-
responding to the digits to
be entered.
To Next Page
