3.2 Basic Measurement Example
23
3
Chapter 3 Measurement
Instrument Settings
5

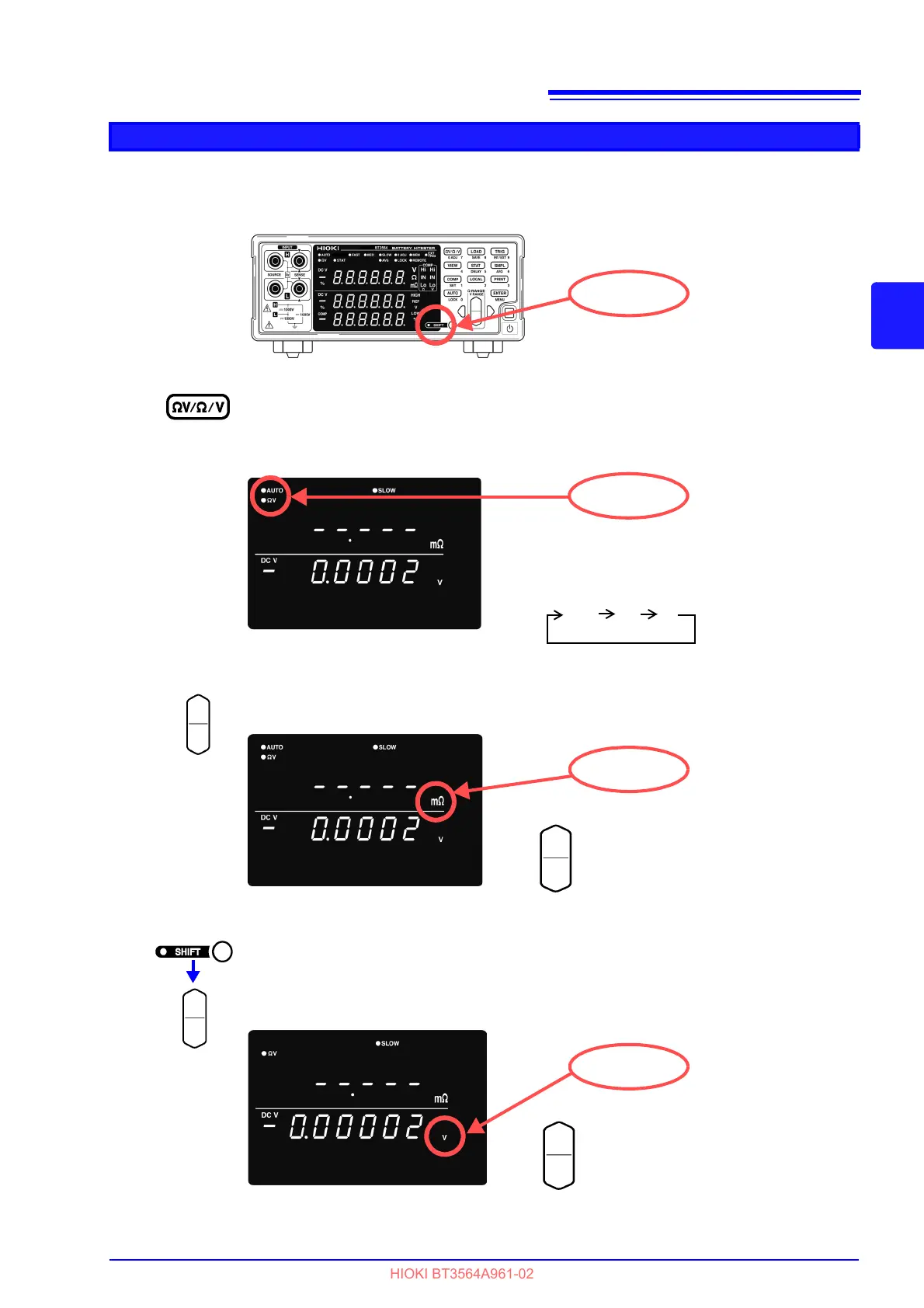

Confirm the SHIFT lamp is not lit.
If this is lit, press the SHIFT key to turn it off.
6
Select the measurement mode.
(for this example, resistance and voltage measurement is selected.)
See "3.3 Selecting Measurement Mode" ( p.26).
7
Set the measurement range. (for this example, 30 m range is selected.)
See "3.4 Setting Measurement Range" ( p.27).
8
(SHIFT Lamp lit)
Set the voltage measurement range. (for this example, the 10 V setting has been
selected.）
See "Voltage measurement range" ( p.28)
SHIFT not lit
The measurement mode changes each time
you press this key. Select  to measure only
resistance, or V to measure only voltage.
V

V
V lit
Increase the resistance measurement range.
Decrease the resistance measurement range.
m lit
Increase the voltage measurement range.
Decrease the voltage measurement range.
V lit
