7.1 Connecting Analog Output
93
7
Chapter 7 Analog Output
The Model BT3564 is capable of generating analog output for measured resis-
tance values. Changes in resistance values can be recorded by connecting the
instrument's analog output to a logger or similar device.
This section descries how to connect cables to the analog output terminals on
the instrument's rear panel.
Analog Output Chapter 7
To avoid electrical shock and instrument damage, turn the instrument and con-
nected equipment off and/or disconnect the probes from the test object before
connecting the analog output terminals.
To avoid damaging the instrument, do not short the output terminals or input volt-
age to them.

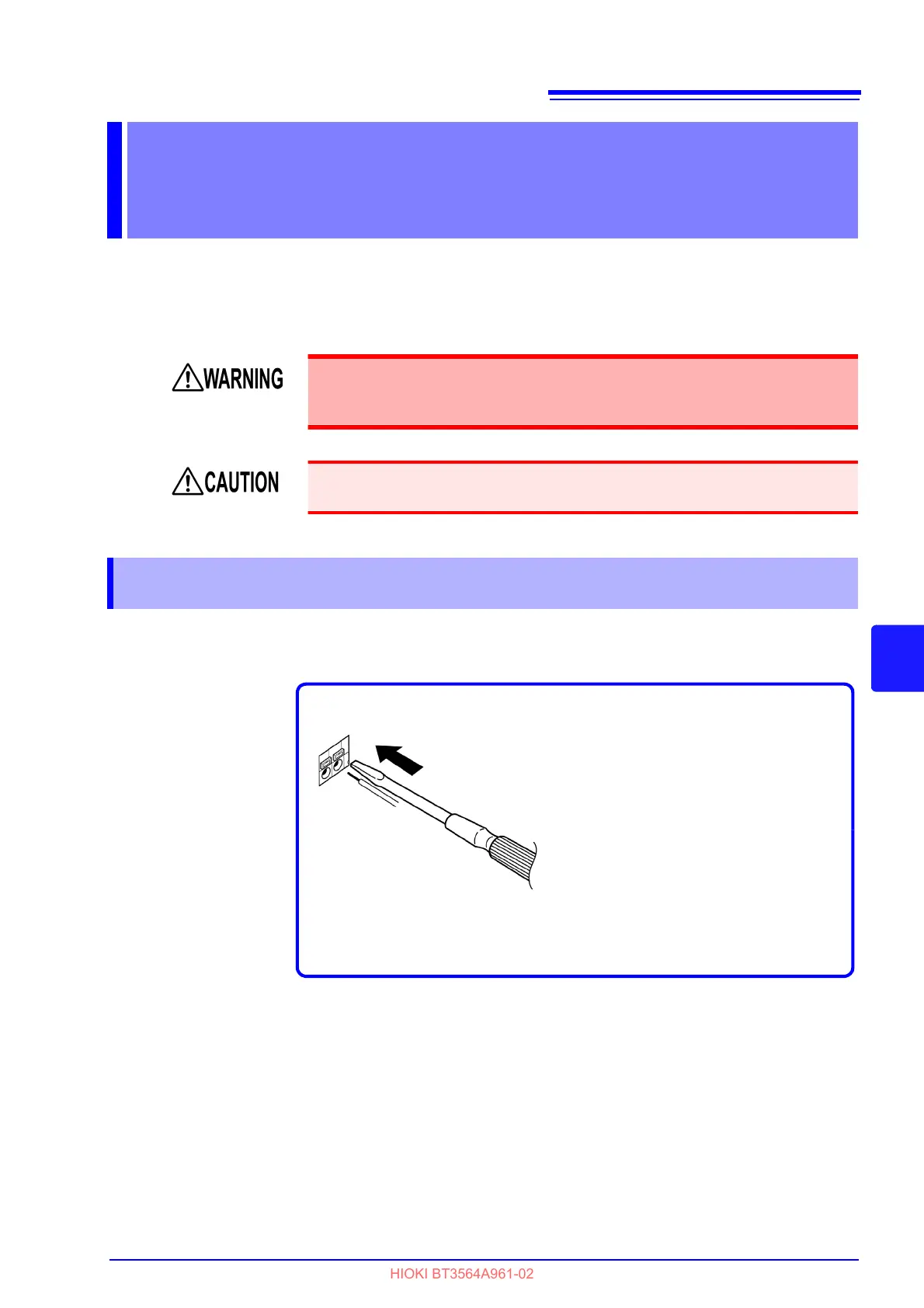

7.1 Connecting Analog Output
1
Push down on the button with a
flat-head screwdriver or similar
tool.
2
Insert the wire into the connec-
tion port while holding the but-
ton down.
3
Release the button to lock the
wire in place. A similar proce-
dure can be used to remove the
lead.
Recommended wire type : AWG16 (1.2 mm diameter) solid conductor, AWG16
(1.25 mm
2
) stranded conductor
Compatible wire types : AWG26 (0.4 mm diameter) to AWG16 (1.2 mm di-
ameter) solid conductor, AWG24 (0.2 mm
2
) to
AWG16 (1.25 mm
2
) stranded conductor
Standard bare wire length : 11 mm
