4.1 Comparator Function
41
4
Chapter 4 Applied Measurement
This example describes the comparator setting method.

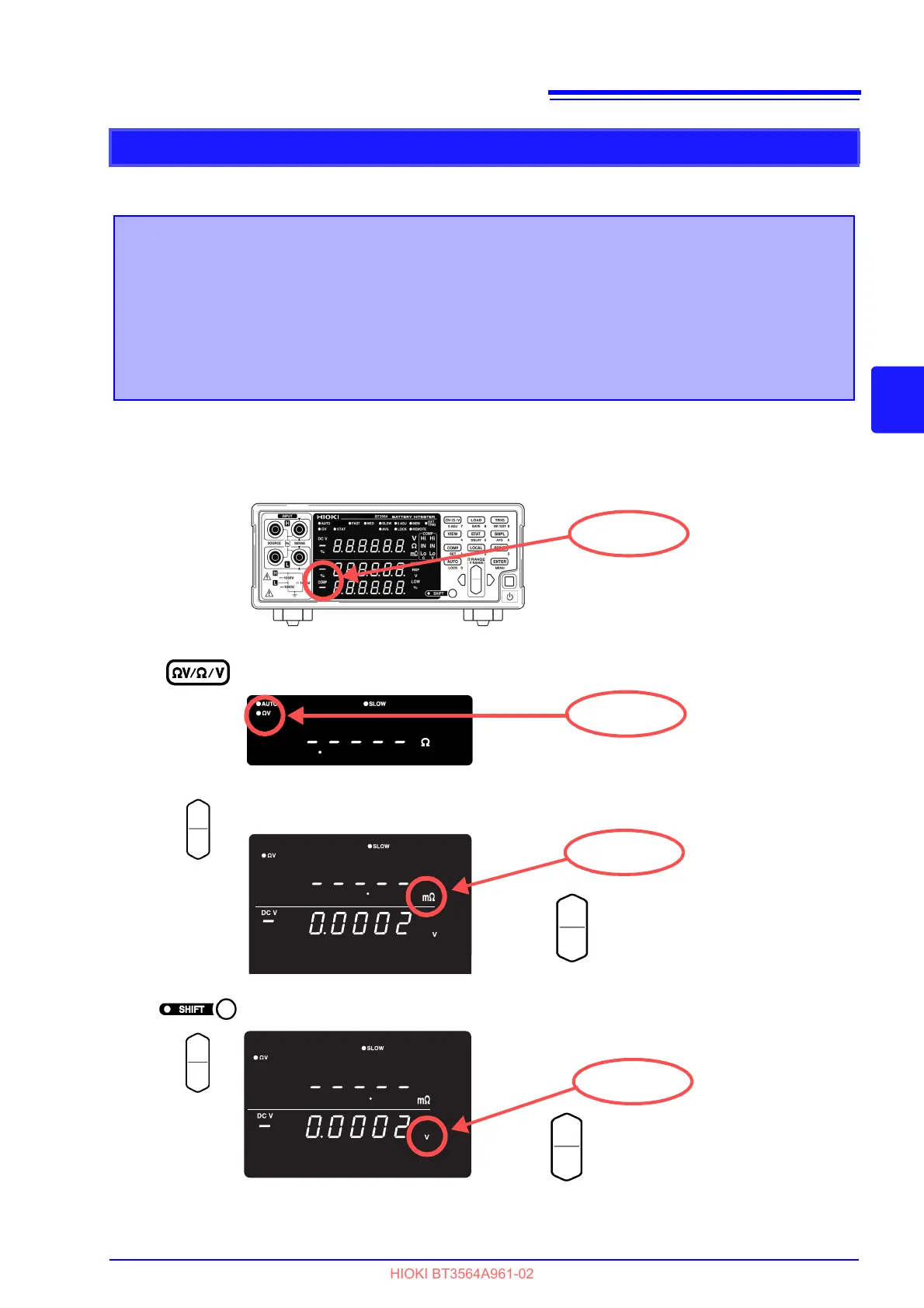

Comparator Setting Example 1 (Upper and Lower Threshold Judgment)
Example:
Set the upper and lower thresholds for resistance and voltage in the V mode (300
m range), and indicate whether the measurement value exceeds the upper or
lower thresholds by sounding the beeper.
Resistance : Upper threshold value 150.00 m, Lower threshold value 100.00 m
Voltage : Upper threshold value 15.2000 V, Lower threshold value 15.0000 V
1
Confirm that the comparator function is off.
(Settings cannot be changed while the Comparator function is enabled. Press the COMP
key to disable the comparator function.)
2
Select the V measurement mode.
3
Select the resistance measurement range (for this example, the 300 m range).
4
Select the voltage measurement range (for this example, the 100 V range).
COMP not lit
V lit
Increase the resistance measurement range.
Decrease the resistance measurement range.
m lit
V lit
Increase the resistance measurement range.
Decrease the resistance measurement range.
