3.2 Basic Measurement Example
22
The following example describes the measurement process.
Example: Measuring resistance and voltage of a 30 m lithium-ion battery
3.2 Basic Measurement Example
Required items: Lithium-ion battery (30 m)
Test leads: Model 9770 Pin Type Lead are used here.
Measurement
conditions:
Measurement mode.................. V (Resistance and Voltage measurement)
Range ....................................... 30 m
, 10 V
Sampling rage .......................... SLOW
Zero adjustment........................ Enabled

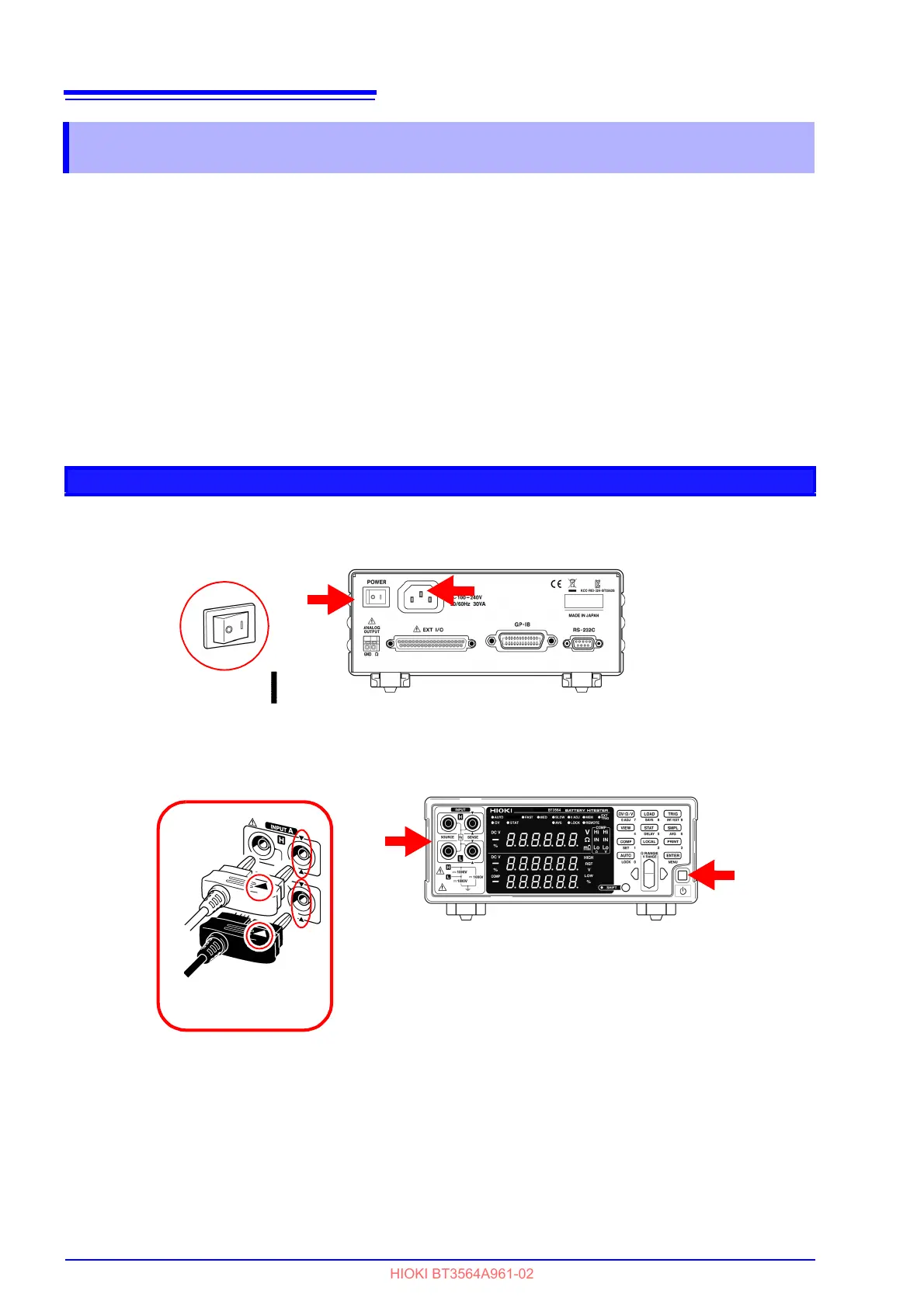

Preparations
1
Connect the power cord.
See "2.2 Connecting the Power Cord" ( p.16).
2
Connect the test leads.
See "2.3 Connecting the Optional Test Leads" ( p.17).
3
Turn the main power switch on.
See "2.4 Turning the Power On and Off" ( p.18).
See "2.5 Selecting the Line Frequency" ( p.20).
4
Cancel the standby state.
See "Cancelling the Standby State" ( p.19).
3
1
Power ON
2
4
Black Lead
Red Lead
Example: Model 9770
