7-29 ● Recovery Filter Replacement
7.10 Recovery Filter Replacement
1

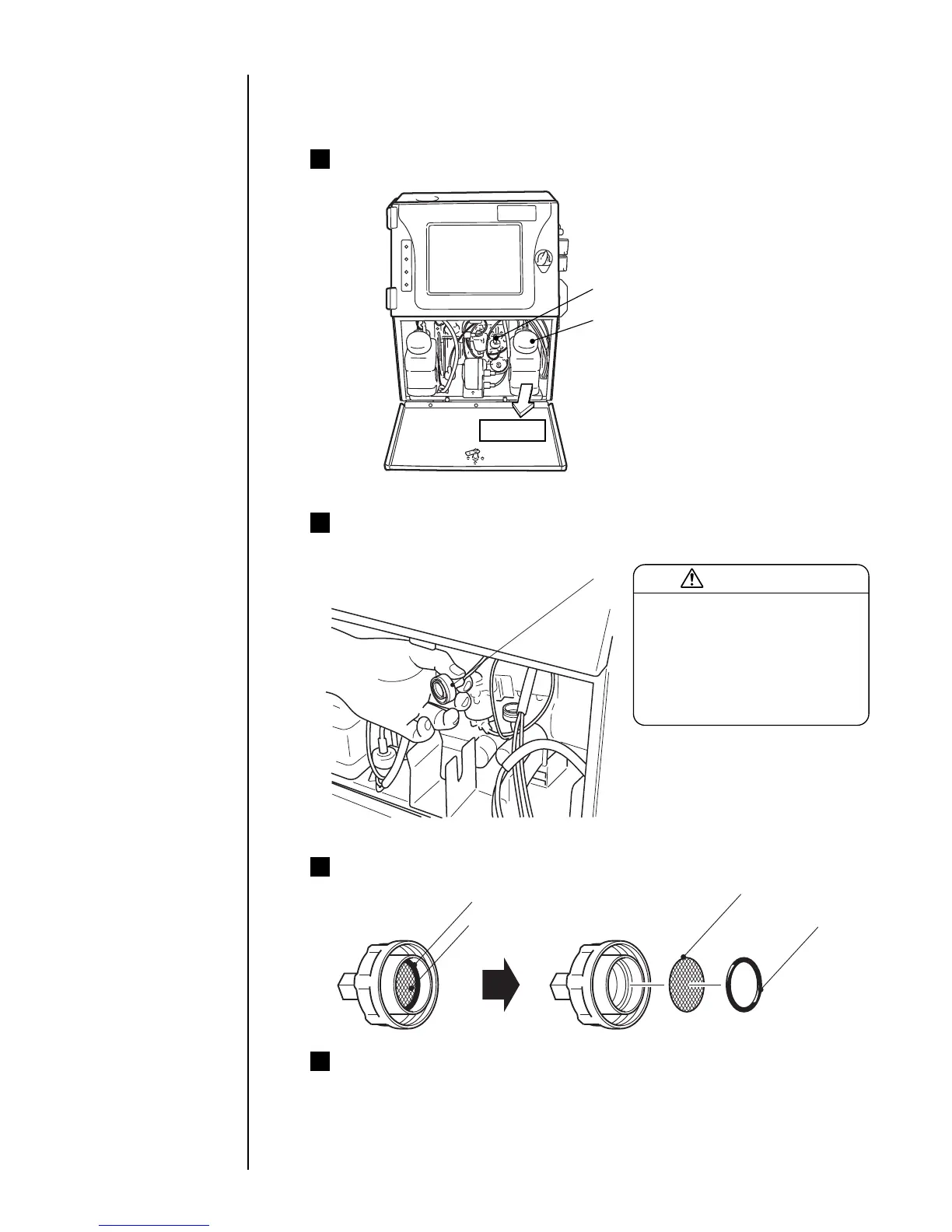

Pull out the makeup ink reservoir forward and out.
Pull out.
Makeup ink reservoir
Recovery filter
2
Rotate the nut of the recovery filter and pull it forward and out.
3
Remove the O ring and filter with tweezers and mount new ones.
4
Return it to its original state, and check to see that there is no leak
of the ink in operation.
* Tighten the nut securely by hand.
If ink is accidentally spilt, wipe
it up promptly with wiping
paper or something similar.
In addition, do not close the
maintenance cover until you
are sure that the wiped portion
has completely dried.
