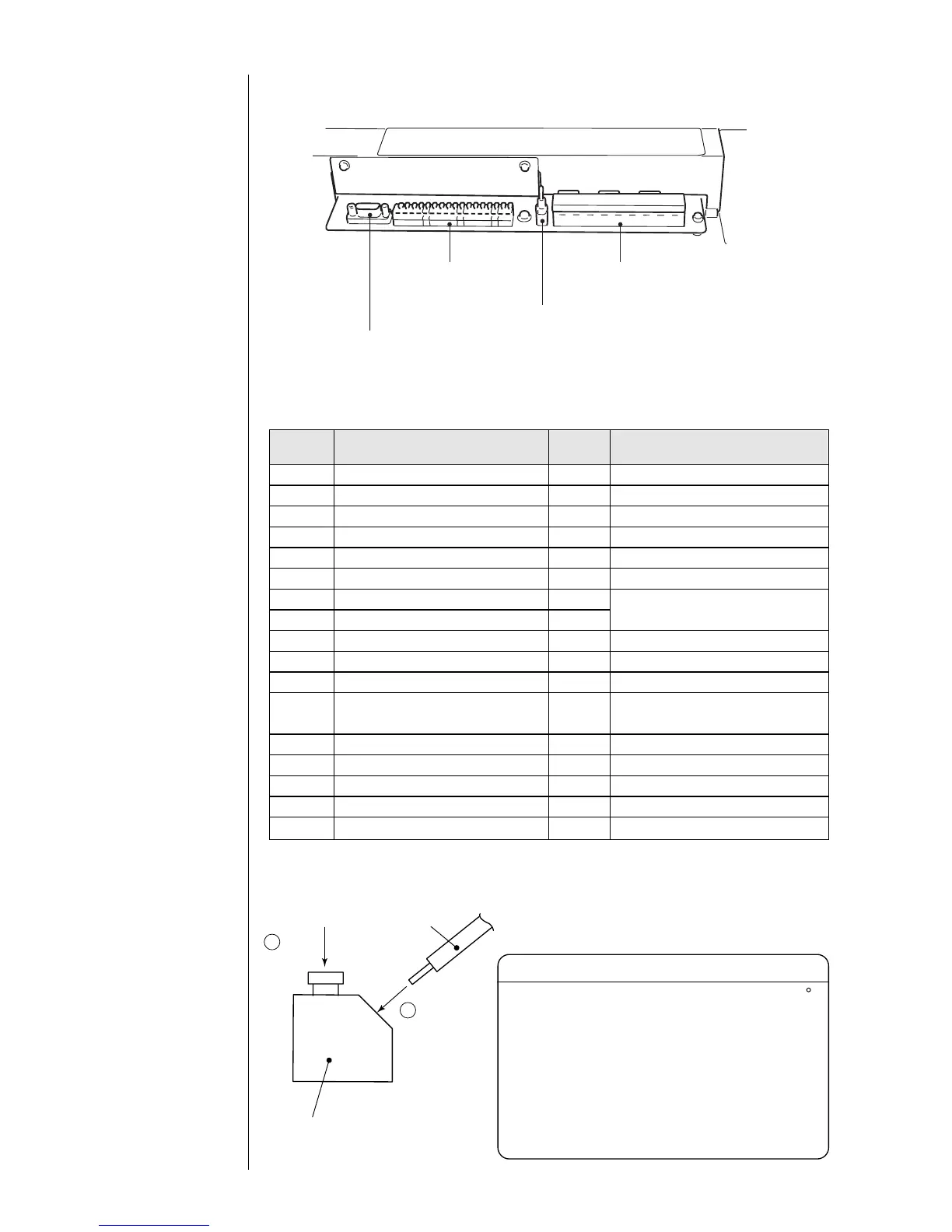

Connection of signals 1-25
¡
Layout of connectors for connection
Communication connector
External connection
terminal block 1
(TB1)
1#
17#
1#
9#
External connection
terminal block 2
(TB2)
SW1
¡
Connection to the external connection terminal block (TB1)
Pin
Name
Input/
Remarks
number output
1 Print target detector power supply Output 12 VDC; maximum: 80 mA
2 Print target detector Input
3 Print target detector ground −−
4 Printing stop Input
5 Signal ground −−
6 Encoder power supply Output 12 VDC; maximum: 80 mA
7 Encoder signal (totem pole) Input
8 Encoder signal (open collector) Input
9 Encoder ground −−
10 Deflection voltage ON/OFF Input
11 Reverse direction printing signal Input
12
Printing-in-progress/
Output Make a choice with an operating key.
printing-complete signal
13 Signal ground −−
14 Run Input
15 Reset (Clear) Input
16 Stop Input
17 Online Output
Use either one.
• Applicable cable size : AWG26 to 14 (φ0.4 to 1.6)
• Wire covering to be stripped : 9mm
Terminal block
(TB1)
Wire
Push
1
2
Insert
UL Notice
Use UL Listed wire with 30V rating or more, 60 C
rating or more and VW-1 or FT-1 notation.
The length must be 3m or less. When length is
3m or more, use the wire of CL2 or CM grade of
the NEC standard. But the power supply line
from IJP to the exterior (No. 1 and No. 6 pin of
TB1) and connection lines with equipment of a
factory (conveyer etc.) can use only the wire of
CL2 grade.
