9-12

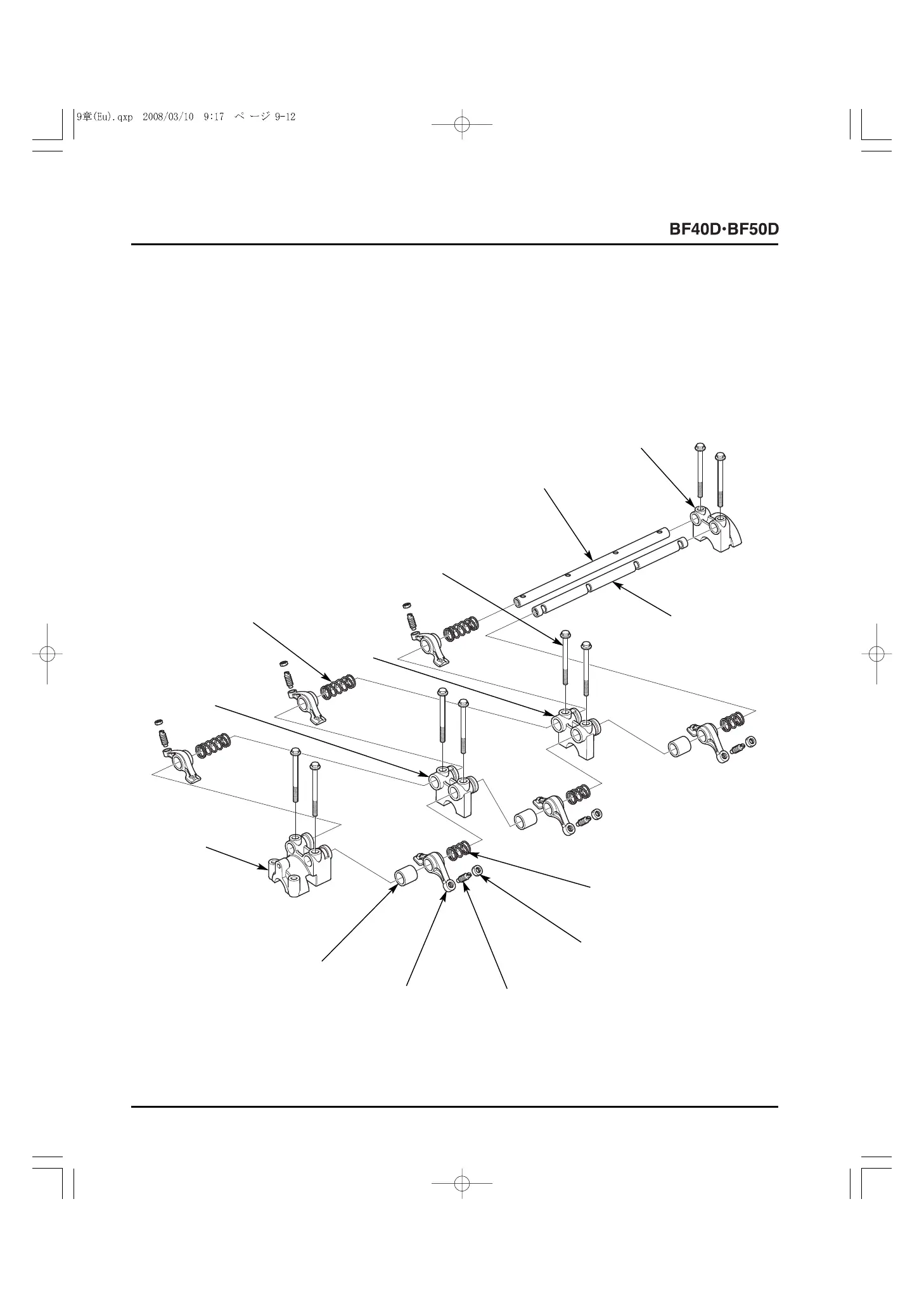

ROCKER SHAFT ASSEMBLY DISASSEMBLY/REASSEMBLY
• Note the location of each part before disassembly. Do not confuse the parts and install them in their original position.
• Check each rocker arm for wear or damage in the part where it contacts with the camshaft.
Apply molybdenum disulfide oil to the outer surface of the rocker shaft and to the part of each rocker arm where it
contacts with the camshaft on reassembly.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
[10]
ROCKER
ARM (6)
[6]
INTAKE ROCKER
SHAFT
[4]
EXHAUST ROCKER SHAFT
[9]
VALVE ADJUSTING
SCREW (6)
[8]
VALVE ADJUSTING
LOCK NUT (6)
[7]
ROCKER ARM
SPRING A (3)
[2]
ROCKER ARM
SPRING B (3)
[11]
ROCKER
COLLAR (3)
[3]
NO.2 CAM
HOLDER
[1]
NO.3 CAM
HOLDER
[12]
NO.4 CAM
HOLDER
[5]
NO.1 CAM HOLDER
6 x 70 (8)
110
