Honda BF40D - Remote Control Box

15-3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

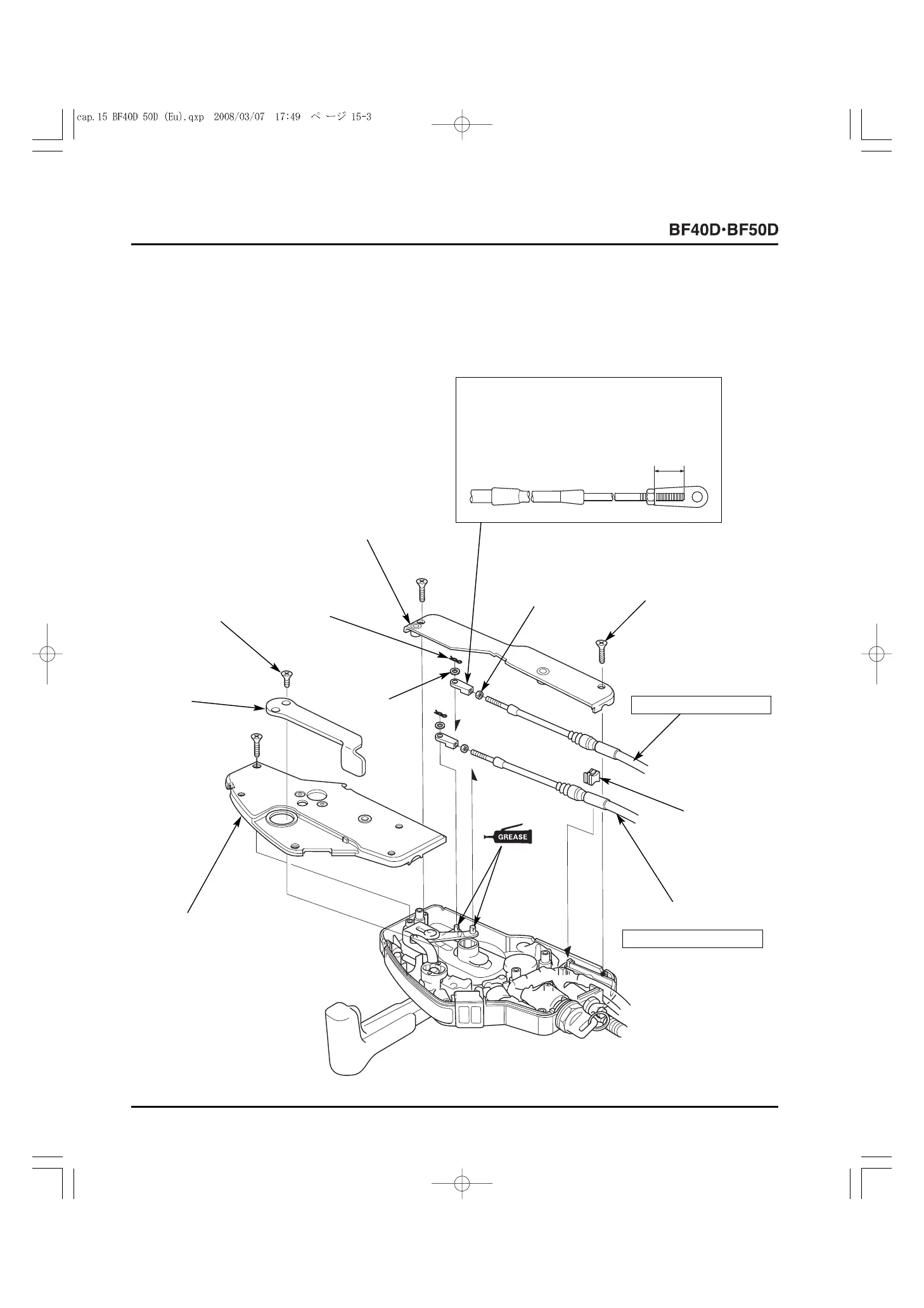

2. REMOTE CONTROL BOX
a. DISASSEMBLY/REASSEMBLY
• REMOTE CONTROL CABLE
[2]
10-32 UNF
LOCK NUT
[3]
5 x 25 mm SELF-
TAPPING SCREW (7)
[4]
REMOTE CONTROL
CABLE [THROTTLE SIDE]
[5]
CABLE CLAMP
SPACER
[12]
REMOTE CONTROL
BOX COVER C
[11]
6 mm LOCK
PIN (2)
[10]
6 mm
WASHER (2)
[7]
REMOTE CONTROL
BOX COVER B
[8]
FAST IDLE
LEVER
[9]
5 x 12 mm FLAT
SCREW (2)
[6]
REMOTE CONTROL CABLE
[SHIFT SIDE]
ADJUSTMENT: P. 3-20
[1]
SHIFT PIVOT (2)
INSTALLATION:
Screw in the shift pivot 8 mm (0.3 in) or more
onto the threaded end of the cable.
ADJUSTMENT: P. 3-17
[1]-1
8 mm (0.3 in)
or more
546
