Honda BF40D - Stern Bracket;Swivel Case

13-6
2. STERN BRACKET/SWIVEL CASE
a. REMOVAL
[POWER TRIM/TILT TYPE]
Remove the following parts.
- Engine assembly (P. 6-2)
- Engine under case (P. 12-4)
- Mount case (P. 13-2)

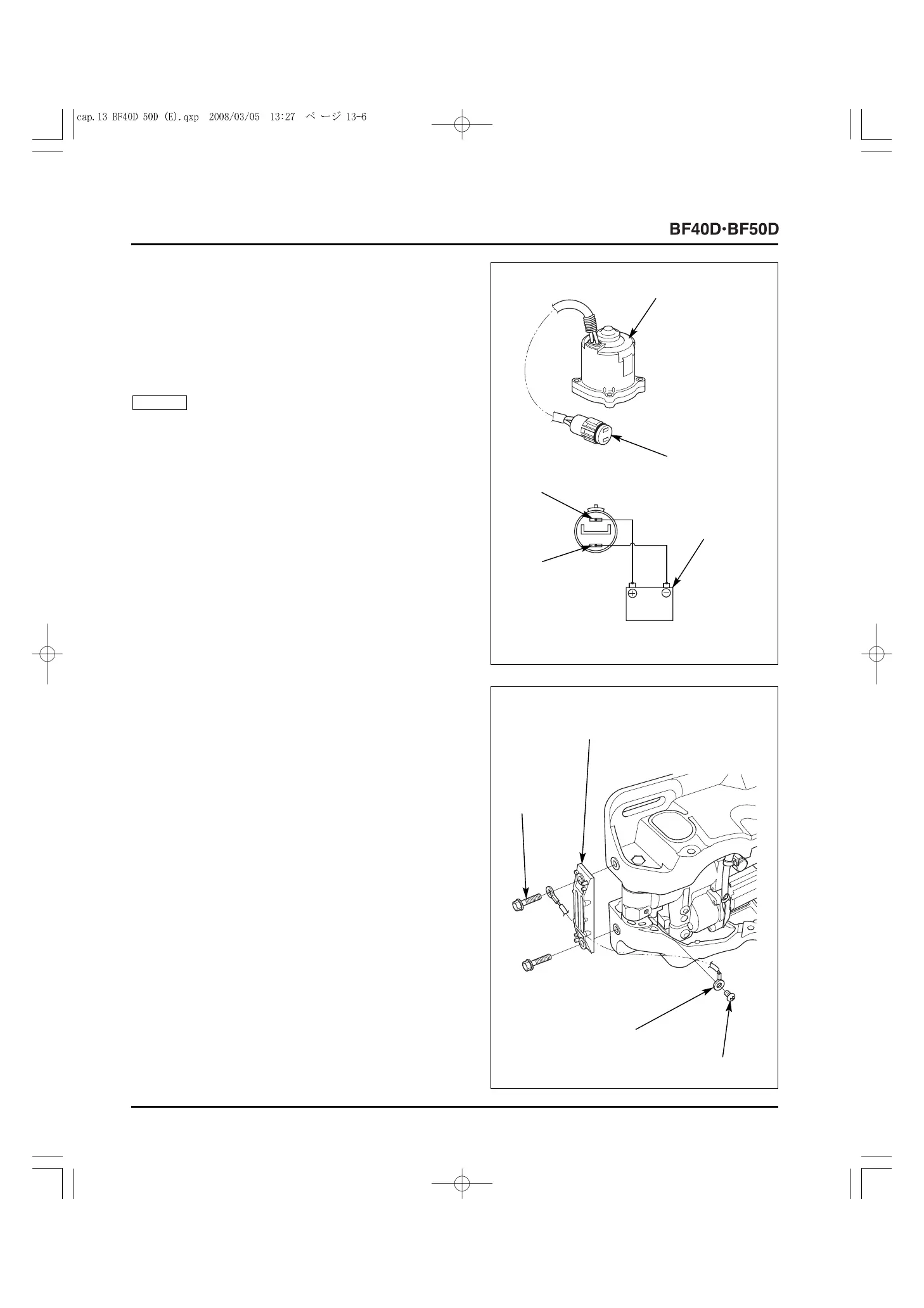

Use a known-good battery to connect it to the connector
terminals. Take care not to short-circuit the terminals.
1) Connect the battery positive (+) cable to the green terminal
of the power tilt motor 2P connector and the battery
negative (
- ) cable to the blue terminal. Raise the swivel
case assembly to the uppermost position (the piston rod of
the power trim/tilt assembly is extended fully).
2) After raising the swivel case assembly to the uppermost
position, disconnect the battery cables from the power tilt
motor 2P connector terminals.
NOTICE
[2]
POWER TILT
MOTOR 2P
CONNECTOR
[4]
Viewed from the terminal side
G
Bu
3) Remove the 6 x 8 mm screw.
4) Remove the two 6 x 23 mm flange bolts. Disconnect the 116
mm lead wire and remove the anode metal. Check the
anode metal for corrosion. Replace the anode metal with a
new one if it is corroded excessively.
[1]
ANODE METAL
[2]
6 x 8 mm SCREW
6 x 23 (2)
[3]
116 mm LEAD WIRE
[3]
12V BATTERY
[1]
POWER TILT MOTOR
358
