Honda BF40D - Cylinder Head Assembly Removal

9-4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

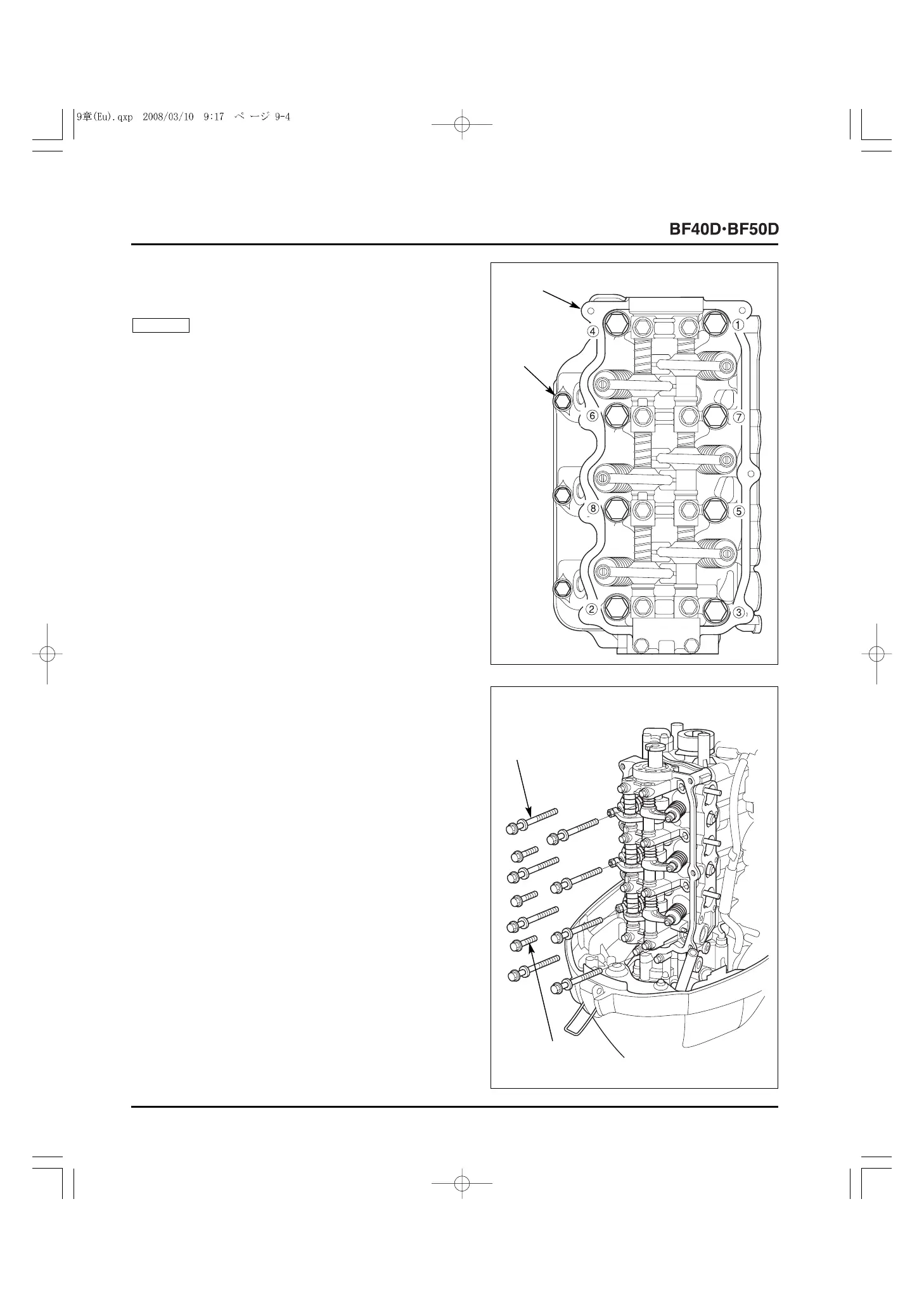

2. CYLINDER HEAD ASSEMBLY
REMOVAL
Remove the cylinder head assembly while the engine is cold to
prevent warpage by heat.
Remove the following parts.
- Engine cover (P. 4-2)
- Alternator cover (P. 7-2)
- Fuel strainer (low pressure side)/fuel pump (low pressure
side)/fuel tube (P. 5-112)
- Cylinder head cover (P. 9-2)
- Pulser rotor/pulser coil (P. 7-22)
- Silencer/throttle body/intake manifold (P. 5-89)
1) Move the shift to the "N" (Neutral) position.
2) Turn the alternator rotor counterclockwise to bring the
No.1 cylinder piston to the top dead center of its
compression stroke (P. 3-10).
3) Loosen the three 8 x 40 mm flange bolts.
4) Loosen the eight 10 x 85 mm bolt-washers in two or three
steps in the numbered sequence shown.
NOTICE
5) Remove the eight 10 x 85 mm bolt-washers and the three 8
x 40 mm flange bolts from the cylinder head assembly.
[1]
10 x 85 mm BOLT-WASHER (8)
8 x 40 (3)
[1]
10 x 85 mm BOLT-
WASHER (8)
8 x 40 (3)
