Honda BF40D - Shift Rod

12-2

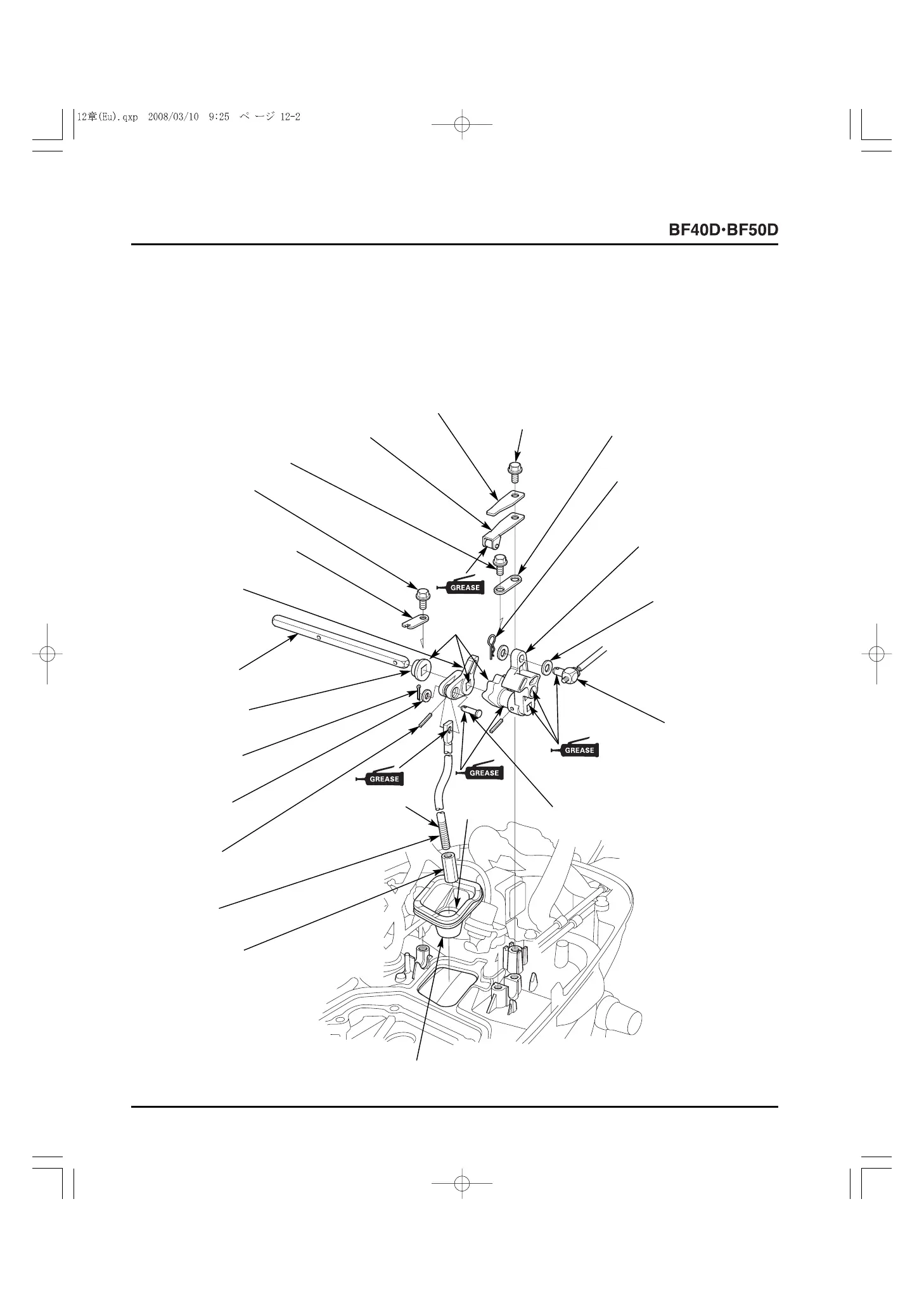

1. SHIFT ROD
a. DISASSEMBLY/REASSEMBLY
1) Remove the remote control cable [throttle/shift side] (P. 17-2).
2) Remove the throttle arm bracket assembly (P. 17-8).
3) Remove the tiller handle [Tiller handle type only] (P. 16-6).
4) Remove the engine assembly from the outboard motor (P. 6-2).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
[8]
SHIFT PIVOT (2)
[7]
6 mm WASHER (2)
[5]
6 mm LOCK PIN
[16]
1.6 mm SPLIT PIN
[15]
5 mm WASHER
[13]
SHIFT ROD A
[12]
SHIFT ROD JOINT
[11]
UNDER CASE GROMMET E
[18]
SHIFT SHAFT
[17]
SHAFT BUSHING
[14]
3 x 20 mm
SPRING PIN (2)
[10]
5 x 17 mm PIN
[6]
SHIFT LINK B
[2]
DETENT SPRING
[3]
DETENT ASSISTED SPRING
6 x 12 (2)
[19]
SHIFT ARM
[4]
SHIFT PLATE
6 x 12
6 x 12
[1]
SHIFT SHAFT PLATE
[9]
(MARINE
GREASE)
[9]
(MARINE GREASE)
[9]
(MARINE
GREASE)
[9]
(MARINE
GREASE)
