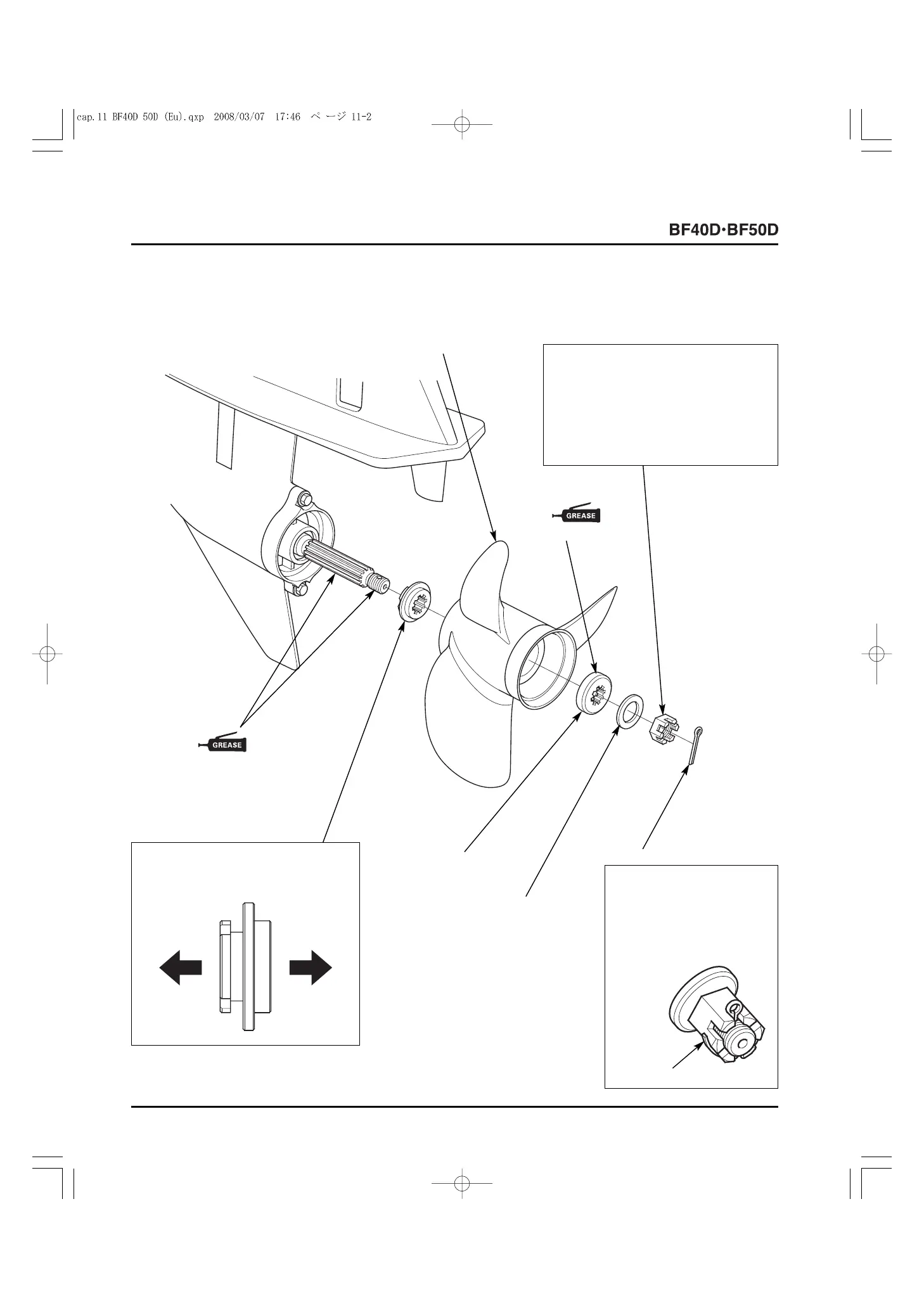

1. PROPELLER
a. REMOVAL/INSTALLATION
[4]
4 mm SPLIT PIN
INSTALLATION:
• Replace with a new one on
reassembly.
• Be sure to use the genuine
part (stainless steel) and
bend the pin ends as shown
to stake the nut.
[1]
PROPELLER
[4]-1
4 mm SPLIT PIN
[5]
18.5 mm WASHER
[6]
10 mm SPACER
[3]
18 mm CASTLE NUT
INSTALLATION:
TORQUE:
1 N
.
m (0.1 kgf
.
m, 0.7 lbf
.
ft)
If it is hard to set the split pin after
tightening the castle nut to the specified
torque, tighten the castle nut additionally
until the split pin can be set.
MAX. TORQUE:
35 N
.
m (3.6 kgf
.
m, 26 lbf
.
ft)
[8] (Apply marine grease to
the spline and threads.)
[7]
PROPELLER THRUST WASHER
INSTALLATION:
Install the propeller thrust washer as
shown.
[7]-1
GEAR
CASE SIDE
[7]-2
PROPELLER
SIDE
[2]
(MARINE GREASE)
