Honda BF40D - Mount Case

13-2
1. MOUNT CASE
a. REMOVAL
Remove the following parts.
- Engine assembly (P. 6-2)
- Engine under case (P. 12-4)
1) Remove the two 10 mm self-locking nuts, and remove the mount case assembly.
2) Remove the eight 6 mm hex bolts, and remove the 6 mm washers, upper mount holders, upper rubber mount As, 10
x 130 mm special bolts and the upper rubber mount Bs.

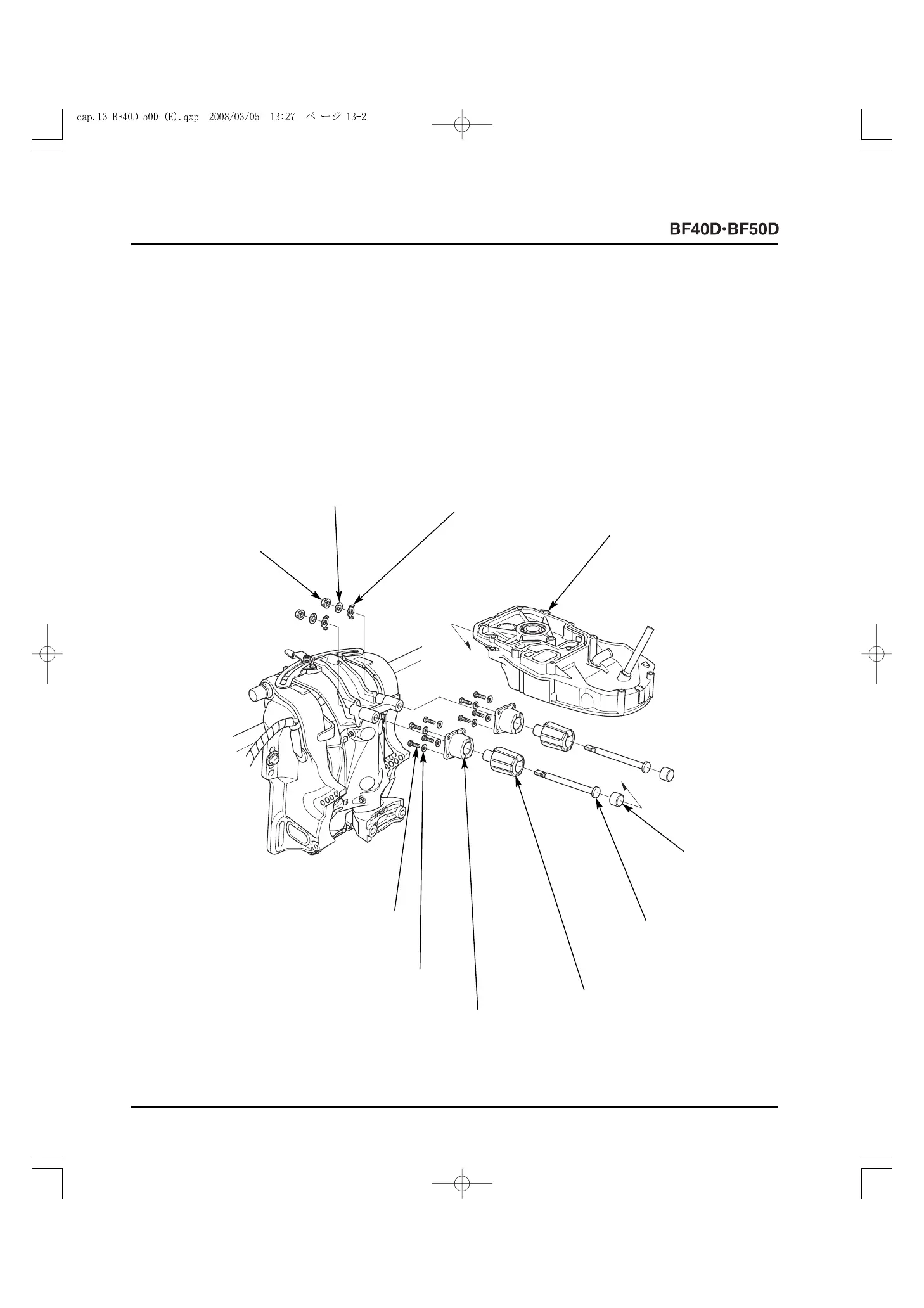

[7]
UPPER RUBBER
MOUNT A (2)
[8]
UPPER MOUNT
HOLDER (2)
[4]
MOUNT CASE ASSEMBLY
[1]
10 mm
SELF-LOCKING NUT (2)
[3]
SPECIAL WASHER (2)
[6]
10 x 130 mm
SPECIAL BOLT (2)
[5]
UPPER RUBBER
MOUNT B (2)
[2]
10 mm WASHER (2)
[9]
6 mm WASHER (8)
[10]
6 mm HEX BOLT (8)
350
