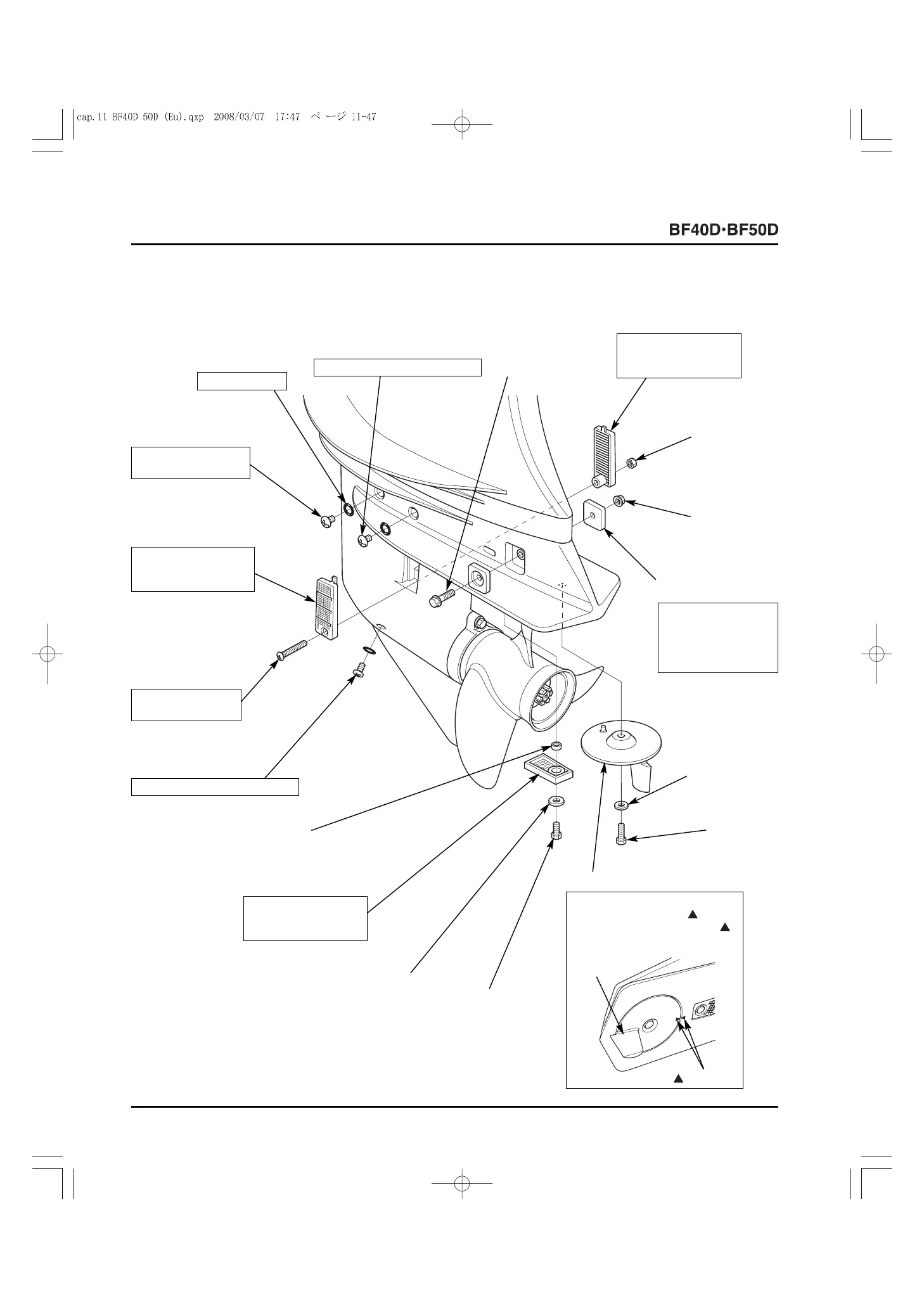

10. ANODE METAL/WATER SCREEN/TRIM TAB
a. REMOVAL/INSTALLATION
[14]
WATER BOTTOM
SCREEN COLLAR
[12]
PIVOT WASHER
[11]
6 x 16 mm HEX BOLT
[9]
8 x 20 mm
HEX BOLT
[8]
8 mm WASHER
6 x 25
[5]
5 mm SELF-
LOCKING NUT
[6]
6 mm SELF-
LOCKING NUT
[7]
GEAR CASE ANODE
METAL (2)
INSPECTION:
Replace the anode
metal with a new
one if it is corroded
excessively.
[10]
TRIM TAB
INSTALLATION:
Install aligning the " " mark
on the trim tab with the " "
mark on the gear case.
[10]-2
" " MARKS
[10]-1
TRIM TAB
[1]
OIL CHECK BOLT
6.5 N
.
m (0.7 kgf
.
m,
4.8 lbf
.
ft)
[2]
6.9 x 1.45 mm
O-RING (3)
Do not reuse.
[3]
FLUSHING BOLT
6.5 N
.
m (0.7 kgf
.
m, 4.8 lbf
.
ft)
[16]
5 x 40 mm
OVAL SCREW
1 N
.
m (0.1 kgf
.
m,
0.7 lbf
.
ft)
[17]
L. WATER SCREEN
INSPECTION:
Check for blockage
before installation.
[15]
DRAIN PLUG BOLT
6.5 N
.
m (0.7 kgf
.
m, 4.8 lbf
.
ft)
[4]
R. WATER SCREEN
INSPECTION:
Check for blockage
before installation.
[13]
WATER BOTTOM
SCREEN
INSPECTION:
Check for blockage
before installation.
