Honda BF40D - Oil Case

11-56
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

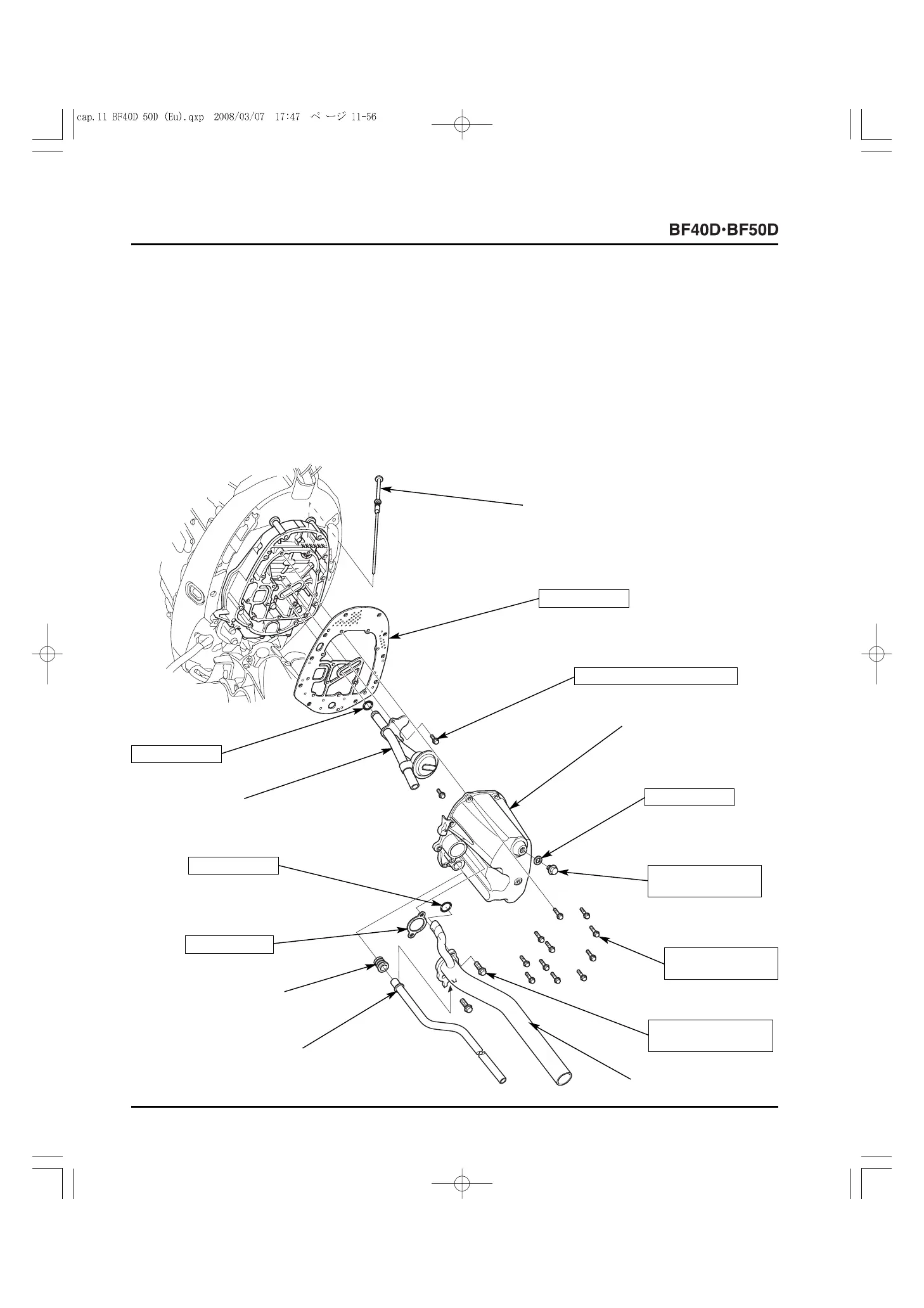

12. OIL CASE
a. REMOVAL
- Engine cover (P. 4-2)
- Gear case assembly/extension separator [Semi-long/extra-long shaft types only] (P. 11-3)
- Extension case/lower rubber mount (P. 11-48)
1) Drain the engine oil from the oil case (P. 3-4)
2) Remove the two 8 x 25 mm flange bolts, and remove the exhaust pipe and exhaust pipe gasket.
3) Disconnect the water tube from the oil case, and remove the water tube grommet from the oil case.
4) Remove the eleven 6 x 25 mm flange bolts, and remove the oil case from the primary gear case.
[11]
OIL STRAINER
[1]
OIL LEVEL GAUGE
[3]
OIL CASE
[6]
EXHAUST PIPE
[7]
WATER TUBE
[8]
WATER TUBE
GROMMET
8 x 25 (2)
26.5 N
.
m (2.7 kgf
.
m,
20 lbf
.
ft)
6 x 25 (11)
10 N
.
m (1.0 kgf
.
m,
7 lbf
.
ft)
[5]
OIL DRAIN PLUG BOLT
23 N
.
m (2.3 kgf
.
m,
17 lbf
.
ft)
[4]
12 mm DRAIN
PLUG WASHER
Do not reuse.
6 x 16 (2)
13 N
.
m (1.3 kgf
.
m, 10 lbf
.
ft)
[2]
OIL CASE GASKET
Do not reuse.
[12]
13.8 x 2.5 mm
O-RING
Do not reuse.
[9]
EXHAUST PIPE
GASKET
Do not reuse.
[10]
O-RING
Do not reuse.
332
