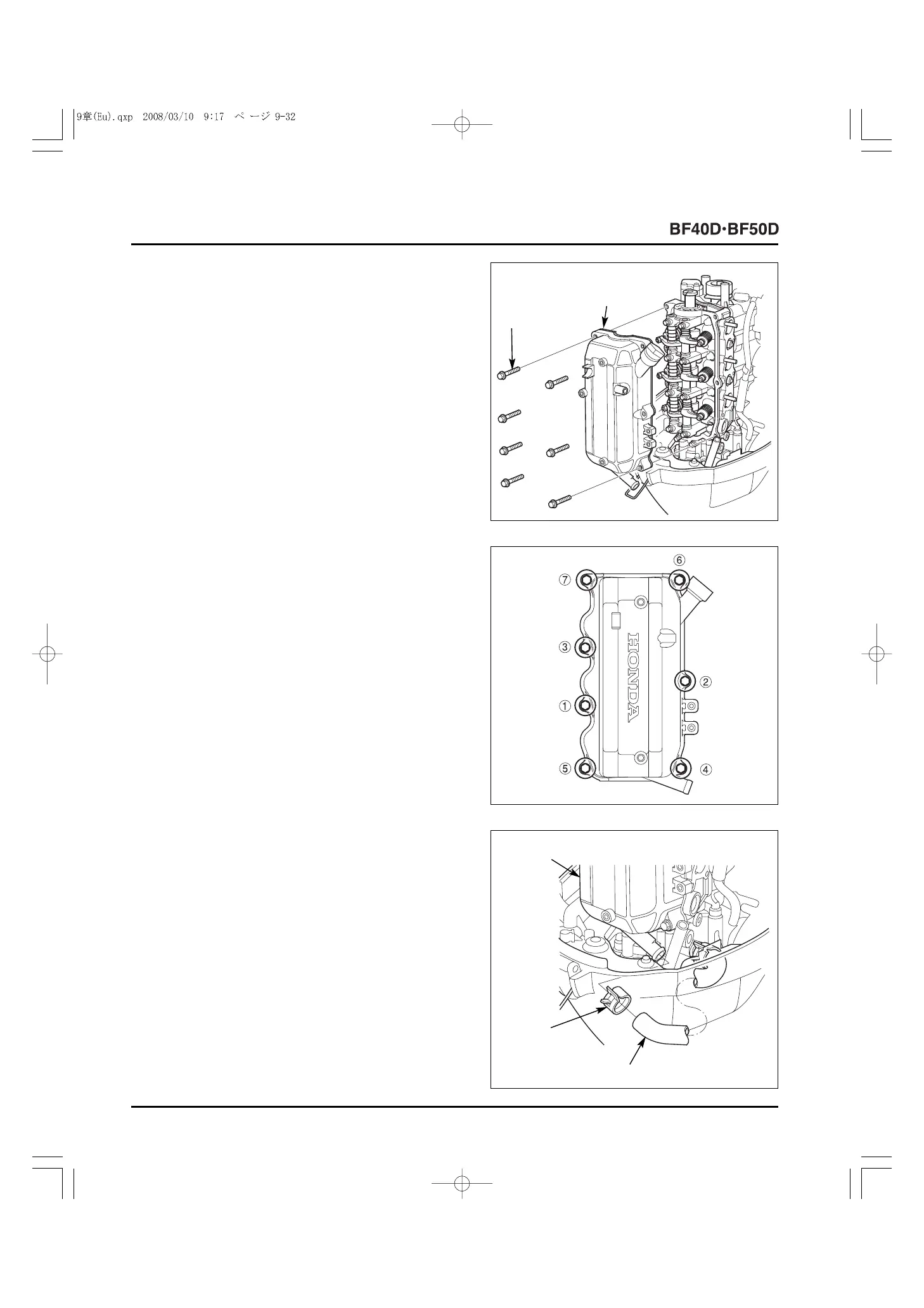

5) Install the cylinder head cover on the cylinder head.
6) After installation, move the cylinder head cover lightly from
side to side making sure that the gasket seats properly.
7) Loosely tighten the seven 6 x 35 mm flange bolts on the
cylinder head cover.
9) Insert the oil tube up to the base into the cylinder head
cover.
Clamp the oil tube securely using the tube clamp D21.
8) Tighten the seven 6 x 35 mm flange bolts in two or three
steps in the numbered sequence shown. Tighten to the
specified torque.
TORQUE: 12 N
.
m (1.2 kgf
.
m, 9 lbf
.
ft)
6 x 35 (7)
[1]
CYLINDER HEAD
COVER
[1]
CYLINDER HEAD COVER
[3]
OIL TUBE
[2]
TUBE CLAMP
D21
