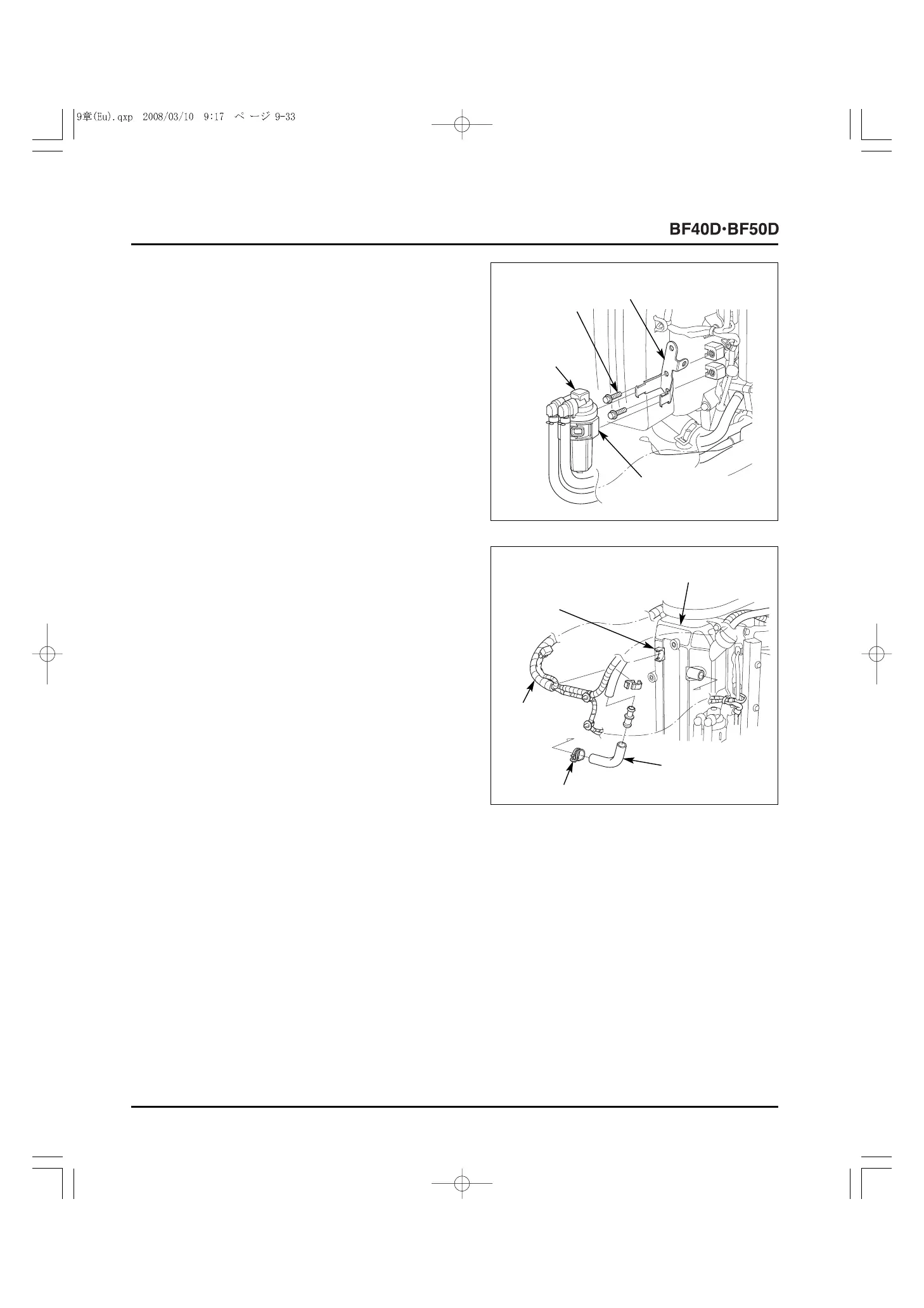

10) Set the fuel strainer stay on the cylinder head cover, and
tighten the two 6 x 14 mm flange bolts securely.
Install the fuel strainer (low pressure side) and the strainer
suspension as a set on the fuel strainer stay.
11) Insert the breather tube up to the base of the cylinder head
cover, and clamp with the tube clamp D17.
Install the main wire harness in the recess in the cylinder
head cover.
• Check that the fuel tube clamp A, that clamps the breather
tube B and the main wire harness, is set on the painted
part of the breather tube B securely (P. 2-83).
12) Install the following parts.
- Ignition coil/regulator/rectifier (P. 18-23)
- Alternator cover (P. 7-2)
- Engine cover (P. 4-2)
[2]
FUEL STRAINER STAY
6 x 14 (2)
[3]
STRAINER SUSPENSION
[1]
FUEL STRAINER
(LOW PRESSURE
SIDE)
[2]
CYLINDER HEAD COVER
[3]
BREATHER TUBE
[4]
TUBE CLAMP D17
[1]
RECESS
[5]
MAIN
WIRE
HARNESS
To Next Page
