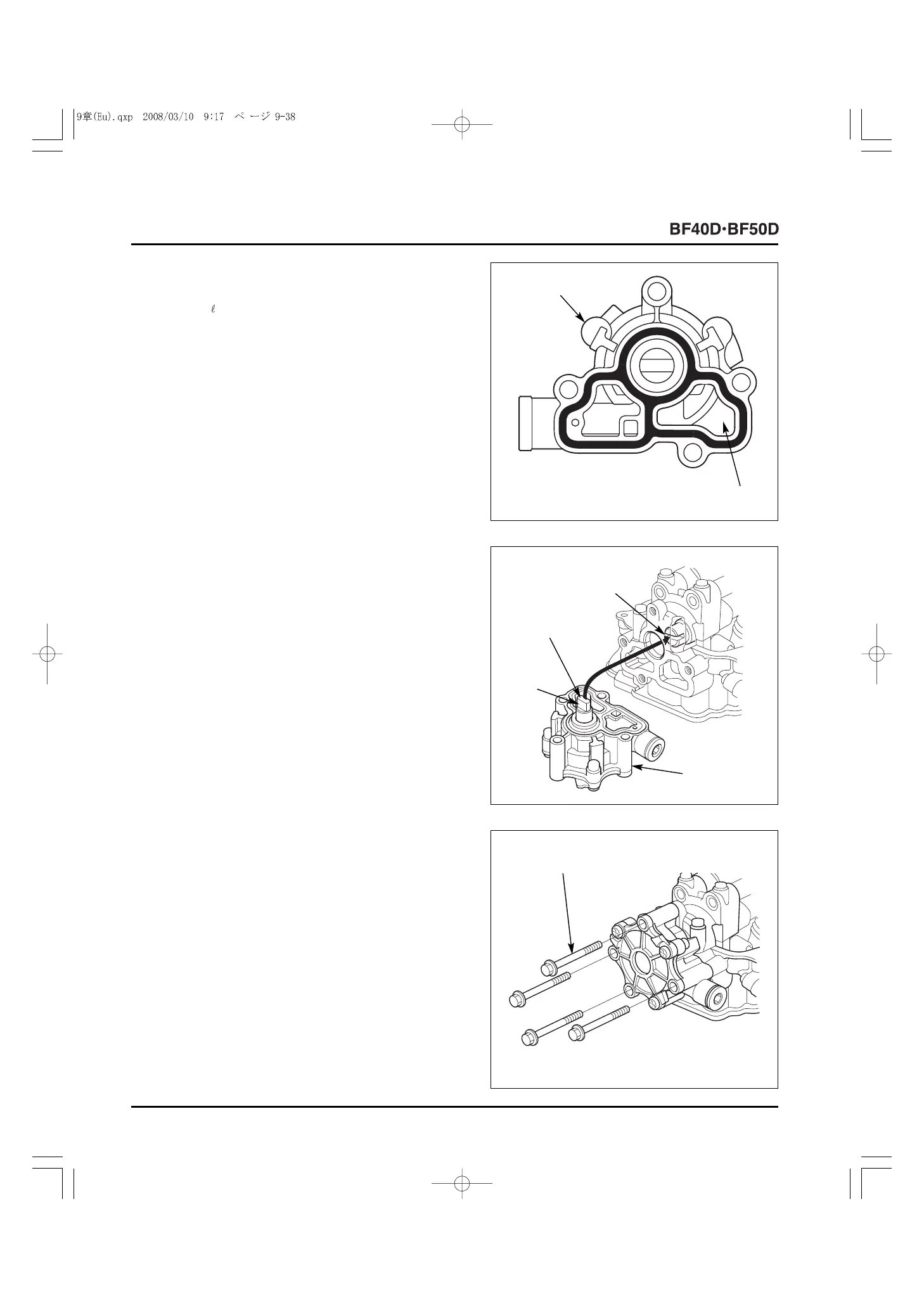

6) Apply engine oil to a new pump cover O-ring and install it
on the oil pump assembly.
7) Pour 0.005 of engine oil into the rotor chamber [suction
side] of the oil pump assembly.
9) Tighten the four 6 x 55 mm flange bolts securely.
TORQUE: 13 N
.
m (1.3 kgf
.
m, 10 lbf
.
ft)
e. INSTALLATION
Install the cylinder head assembly on the outboard motor (P. 9-
29).
8) Install the oil pump assembly on the cylinder head
assembly while aligning the projection on the oil pump
shaft with the recess in the camshaft.
• Install quickly with care not to spill the engine oil from the
oil pump assembly.
[1]
OIL PUMP ASSEMBLY
[2]
ROTOR CHAMBER
[SUCTION SIDE]
[4]
OIL PUMP
ASSEMBLY
[1]
OIL PUMP
SHAFT
[2]
PROJECTION
[3]
RECESS
6 x 55 (4)
