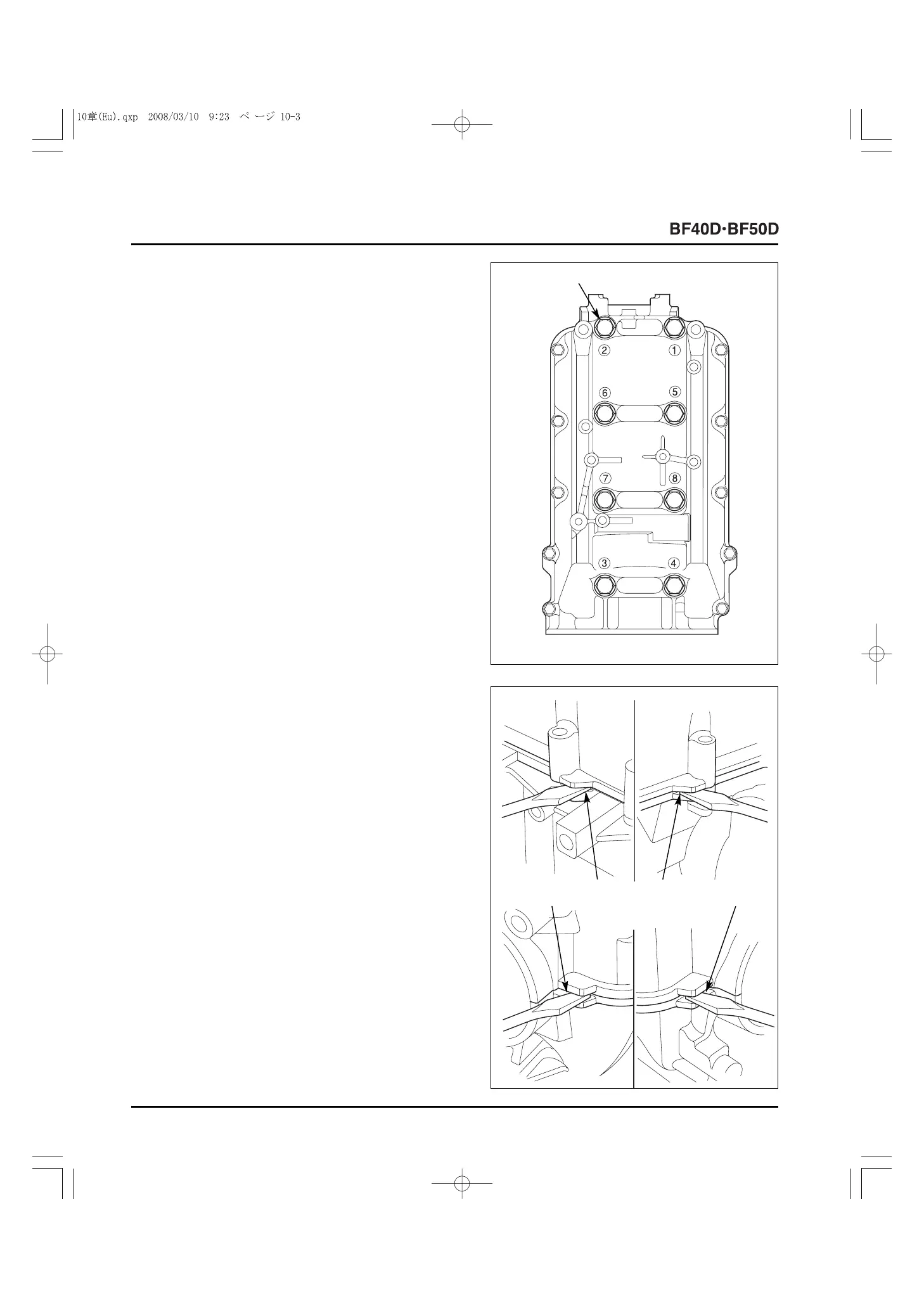

8) Loosen the eight 8 x 94 mm flange bolts in two or three
steps in the numbered sequence shown.
9) Remove the eight 8 x 94 mm flange bolts and the eight 8
mm washers from the crankcase.
10) Insert a screwdriver into the recesses in the crankcase and
separate the crankcase little by little.
• Do not damage the crankcase/cylinder block mating
surfaces.
8 x 94 (8)
[1]
RECESS
[1]
RECESS
[1]
RECESS
[1]
RECESS
