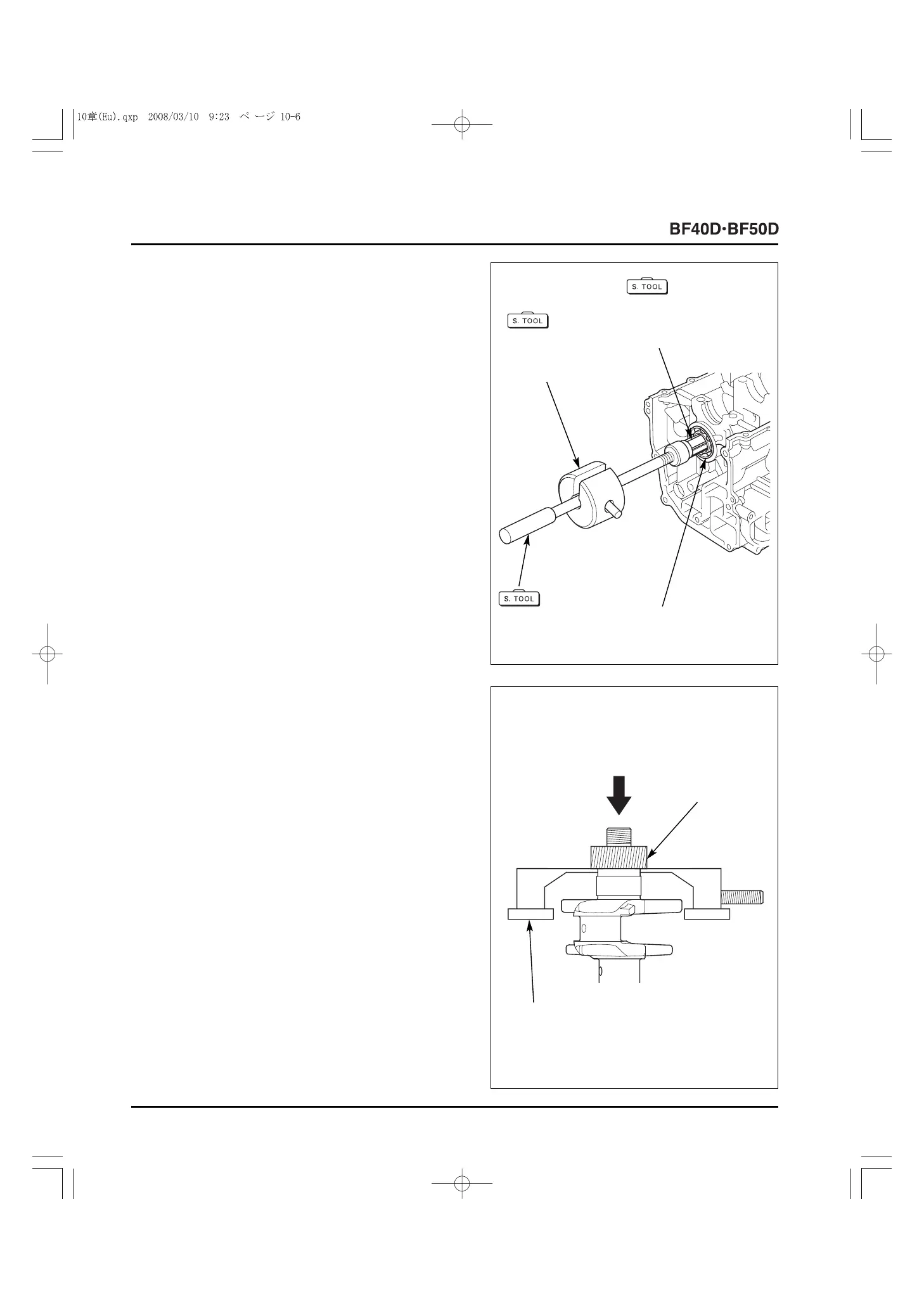

26) Check the 6005 radial ball bearing for abnormal noise and
play, and replace it with a new one if necessary.
Remove the 6005 radial ball bearing from the cylinder block
using the special tools as shown.
Replace the bearing with a new one on reassembly.
TOOLS:
Remover weight 07741-0010201
Bearing remover shaft 07JAC-PH80200
Adjustable bearing puller, 20-40 07JAC-PH80100
b. PRIMARY DRIVE GEAR
Remove the primary drive gear from the crankshaft using the
hydraulic press as shown.
[1]
REMOVER
WEIGHT
07741-0010201
[2]
ADJUSTABLE BEARING
PULLER, 20-40
07JAC-PH80100
[4]
BEARING REMOVER
SHAFT
07JAC-PH80200
[1]
PRIMARY DRIVE
GEAR
[2]
UNIVERSAL BEARING PULLER
(Commercially available)
[3]
6005 RADIAL BALL
BEARING
To Next Page
