Honda BF40D - Page 178

10-8
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

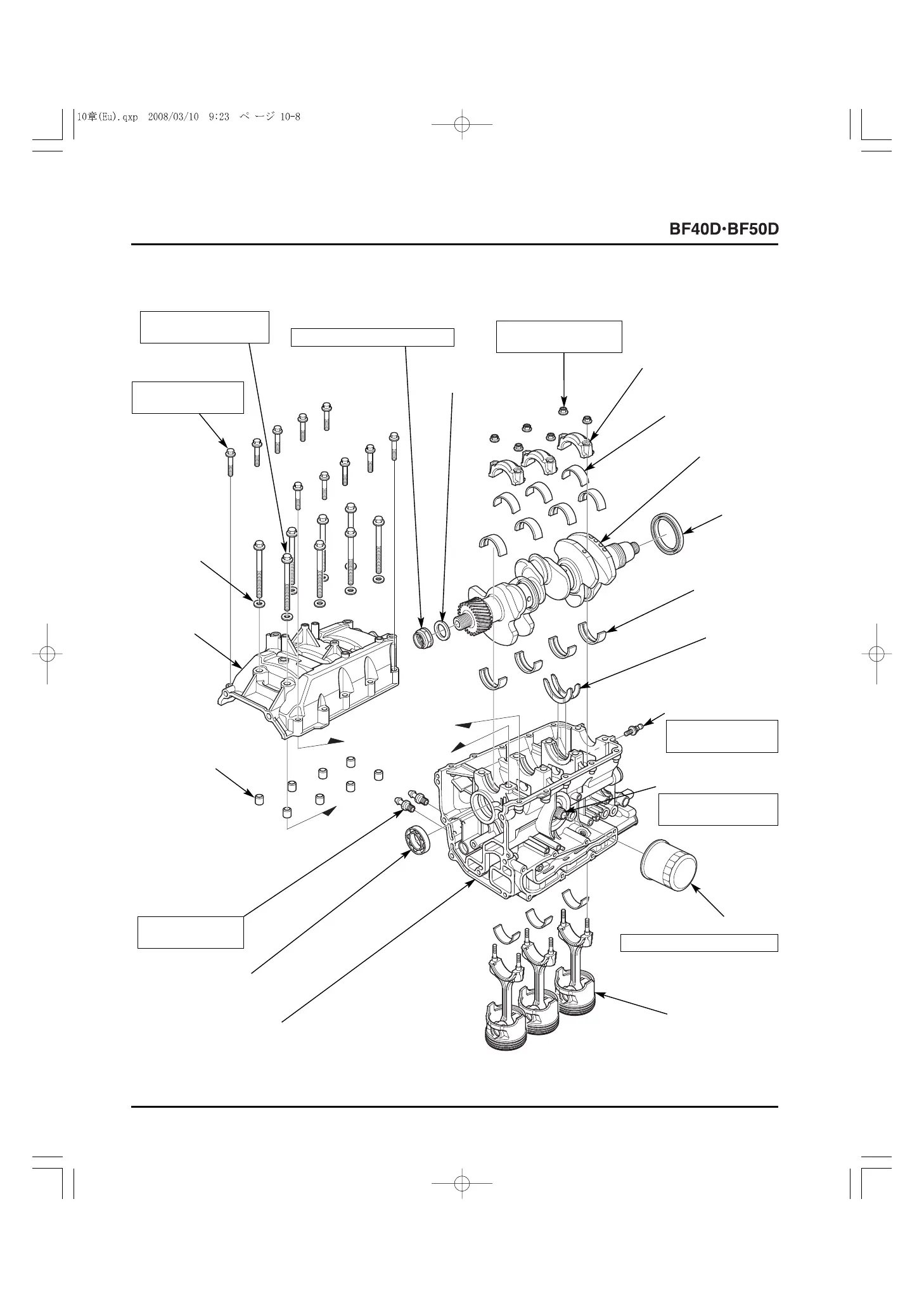

COMPONENT DRAWING
28 N
.
m (2.9 kgf
.
m, 21
lbf
.
ft) + 90
o
- 120
o
8 x 94 (8)
12 N
.
m (1.2 kgf
.
m,
9 lbf
.
ft)
6 x 40 (10)
28 N
.
m (2.9 kgf
.
m,
21 lbf
.
ft)
[3]
CONNECTING ROD NUT (6)
[19]
8 mm
WASHER (8)
[4]
CONNECTING
ROD CAP (3)
[5]
CONNECTING ROD
BEARING (6)
[18]
CRANKCASE
[2]
22 mm WASHER
[6]
CRANKSHAFT
[7]
56 x 70 x 8 mm
OIL SEAL
[8]
MAIN
BEARING (8)
[9]
THRUST
WASHER (2)
[14]
CYLINDER BLOCK
[13]
PISTON
ASSEMBLY
[17]
10 x 12 mm
DOWEL PIN (8)
12 N
.
m (1.2 kgf
.
m, 9 lbf
.
ft)
[12]
OIL FILTER CARTRIDGE
18 N
.
m (1.8 kgf
.
m,
13 lbf
.
ft)
[11]
OIL FILTER HOLDER
12 N
.
m (1.2 kgf
.
m,
9 lbf
.
ft)
[10]
TIMING BELT
ADJUSTING
SPRING BOLT
9 N
.
m (0.9 kgf
.
m,
6.6 lbf
.
ft)
[16]
WATER TUBE
JOINT (2)
92 N
.
m (9.4 kgf
.
m, 68 lbf
.
ft)
[1]
22 mm FLANGE NUT
[15]
6005 RADIAL BALL
BEARING
178
