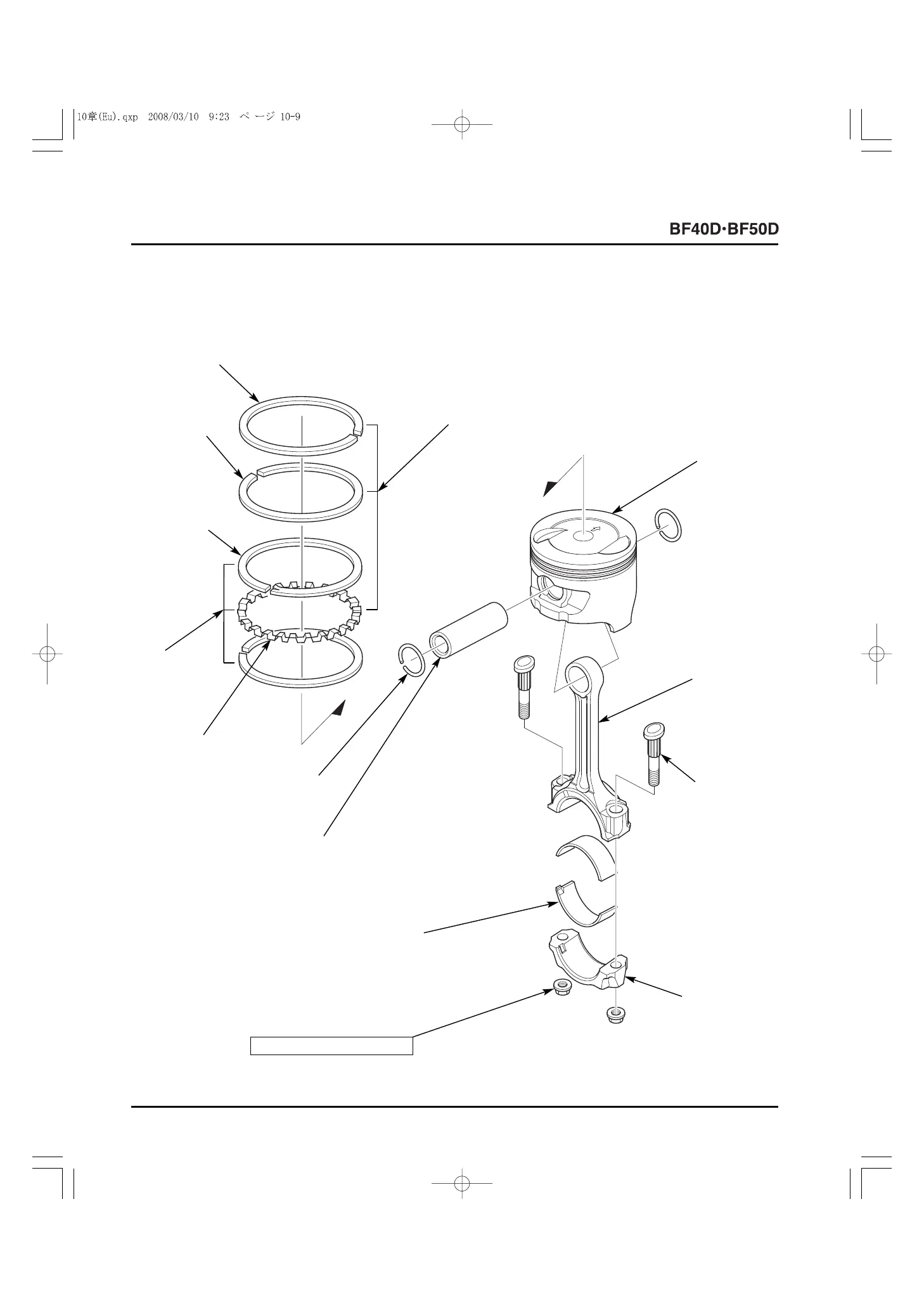

COMPONENT DRAWING
28 N
.
m (2.9 kgf
.
m, 21 lbf
.
ft)
[9]
CONNECTING ROD NUT (2)
[3]
TOP RING
[2]
SECOND RING
[1]
SIDE RAIL (2)
[14]
OIL RING
[4]
PISTON RING
[11]
PISTON PIN
[5]
PISTON
[6]
CONNECTING ROD
[7]
CONNECTING
ROD BOLT (2)
[8]
CONNECTING
ROD CAP
[10]
CONNECTING ROD BEARING (2)
[13]
SPACER
[12]
PISTON PIN RING (2)
