The main bearings are available in the seven I.D. colors (Blue,
Black, Brown, Green, Yellow, Pink and Red in this order) at
intervals of 0.003 mm (0.0001 in) in tolerance.
4) The oil clearance includes the enlargement amount of the
housing caused by crash.
Select the bearings so the oil clearance is 0.028
-
0.038
mm (0.0011
- 0.0015 in).
5) Align the projection on the bearing with the cutout in the
connecting rod and in the connecting rod cap. Install the
bearing with care not to damage the sliding surface.
6) Check the main bearing oil clearance after installing the
selected bearing (P. 10-14).

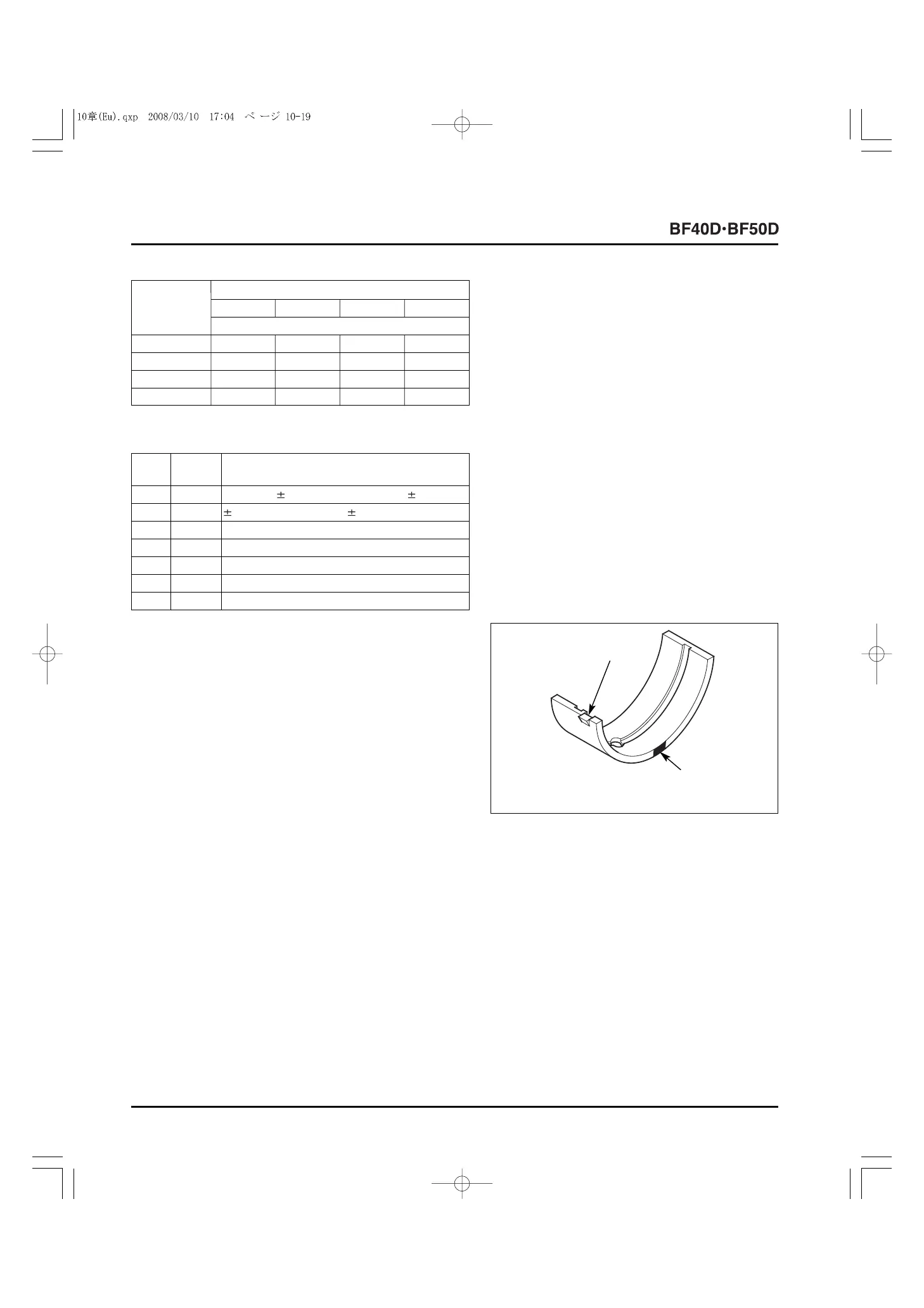

Cylinder block I.D. code letter
ABCD
Bearing identification color
1 Red Pink Yellow Green
2 Pink Yellow Green Brown
3 Yellow Green Brown Black
4 Green Brown Black Blue
Crankshaft
main journal
code number
Crankshaft main bearing selection table:
Selection table:
Connecting rod bearing center thickness: 2.0 mm (0.08 in)
Code
ID color Tolerance
letter
G Red - 0.003 - 0.000 mm ( - 0.0001 - 0.0000 in)
F Pink 0.000 - +0.003 mm ( 0.0000 - +0.0001 in)
E Yellow +0.003 - +0.006 mm (+0.0001 - +0.0002 in)
D Green +0.006 - +0.009 mm (+0.0002 - +0.0004 in)
C Brown +0.009
- +0.012 mm (+0.0004 - +0.0005 in)
B Black +0.012 - +0.015 mm (+0.0005 - +0.0006 in)
A Blue +0.015
- +0.018 mm (+0.0006 - +0.0007 in)
[1]
PROJECTION
[2]
IDENTIFICATION
COLOR
