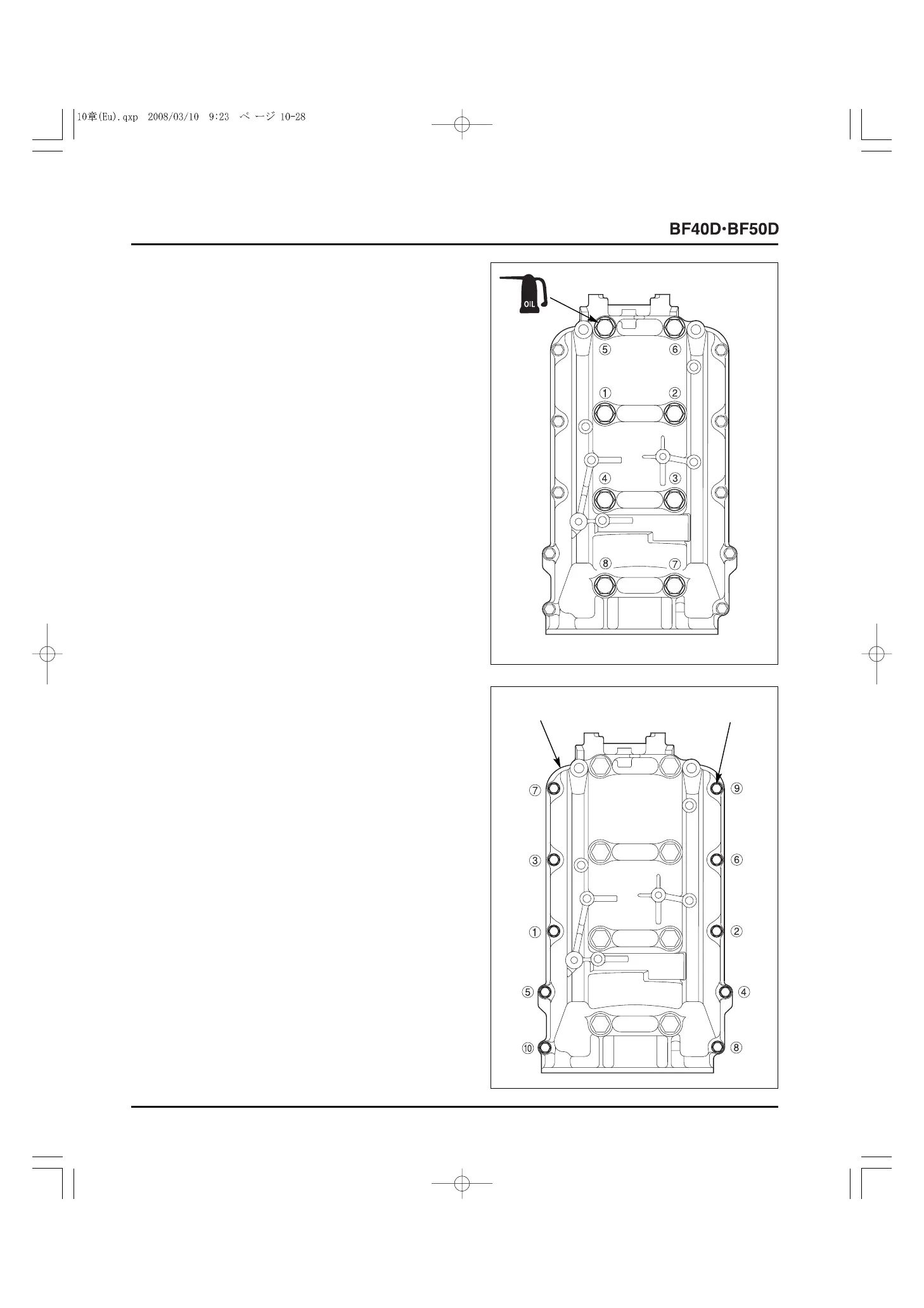

19) Apply engine oil to the threads and seat of the 8 x 94 mm
flange bolts.
20) Loosely tighten the eight 8 x 94 mm flange bolts and the
eight 8 mm washers on the crankcase, then tighten them to
the specified torque in two or three steps in the numbered
sequence shown.
After tightening to the specified torque, tighten the bolts
additionally to 90
o
- 120
o
in the numbered sequence
shown.
TORQUE: 28 N
.
m (2.9 kgf
.
m, 21 lbf
.
ft) + 90
o
- 120
o
21) Loosely tighten the ten 6 x 40 mm flange bolts on the
crankcase, then tighten them to the specified torque in two
or three steps in the numbered sequence shown.
TORQUE: 12 N
.
m (1.2 kgf
.
m, 9 lbf
.
ft)
8 x 94 (8)
6 x 40 (10)
[1]
CRANKCASE
