FLYWHEEL PULLER
(Commercially available)
7-4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

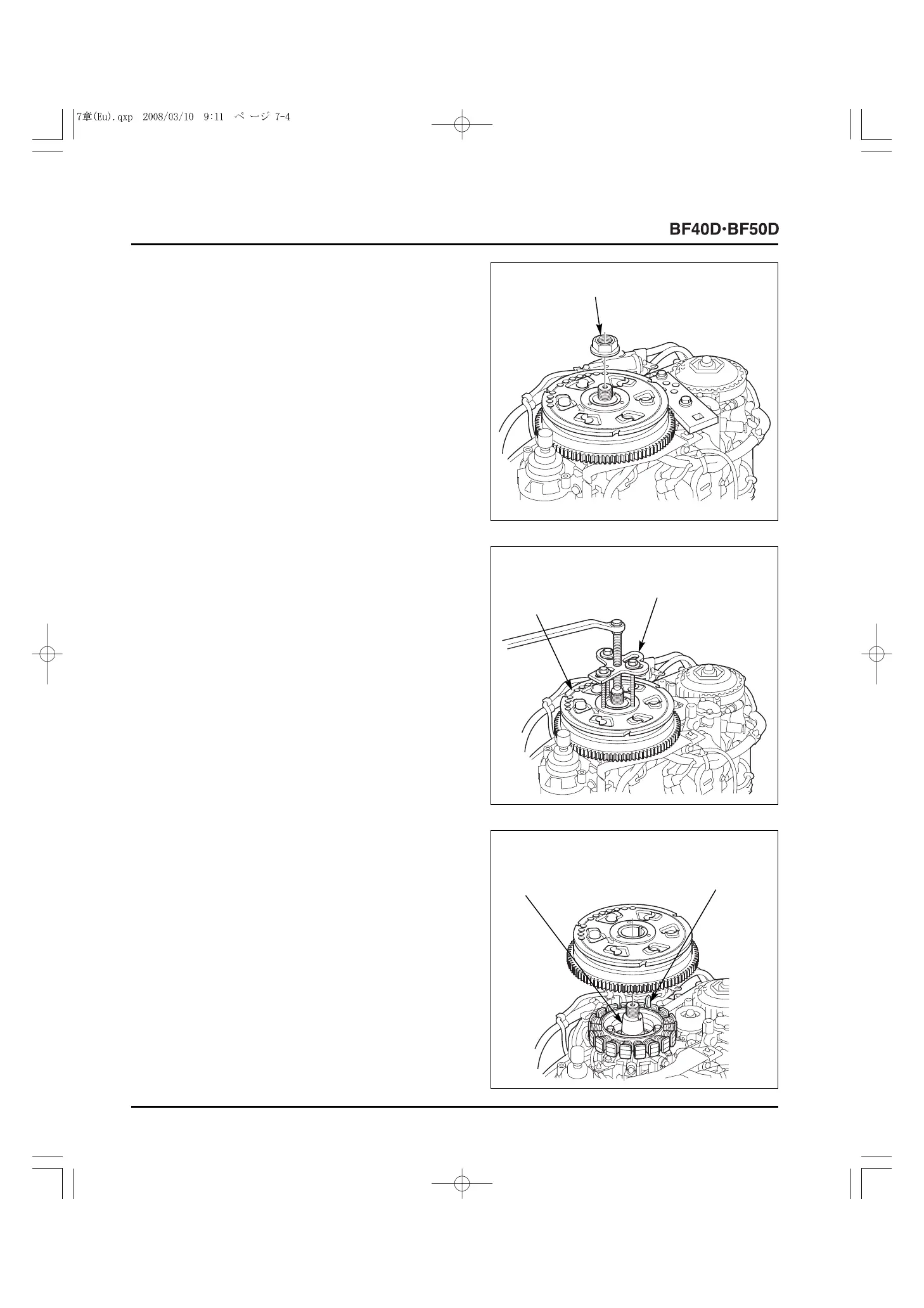

5) Remove the 24 mm special nut and remove the special tool.
7) Remove the 25 x 18 mm special woodruff key from the
crankshaft.
6) Set a commercially available flywheel puller as shown, and
remove the alternator rotor.
• Note that the alternator rotor has very strong magnetic
force. Do not hold the alternator rotor by the ring gear but
hold it by the recoil starter rope winding area not to pinch
your fingers with the rotor.
[1]
ALTERNATOR
ROTOR
[1]
CRANKSHAFT
[2]
25 x 18 mm SPECIAL
WOODRUFF KEY
[1]
24 mm SPECIAL NUT
