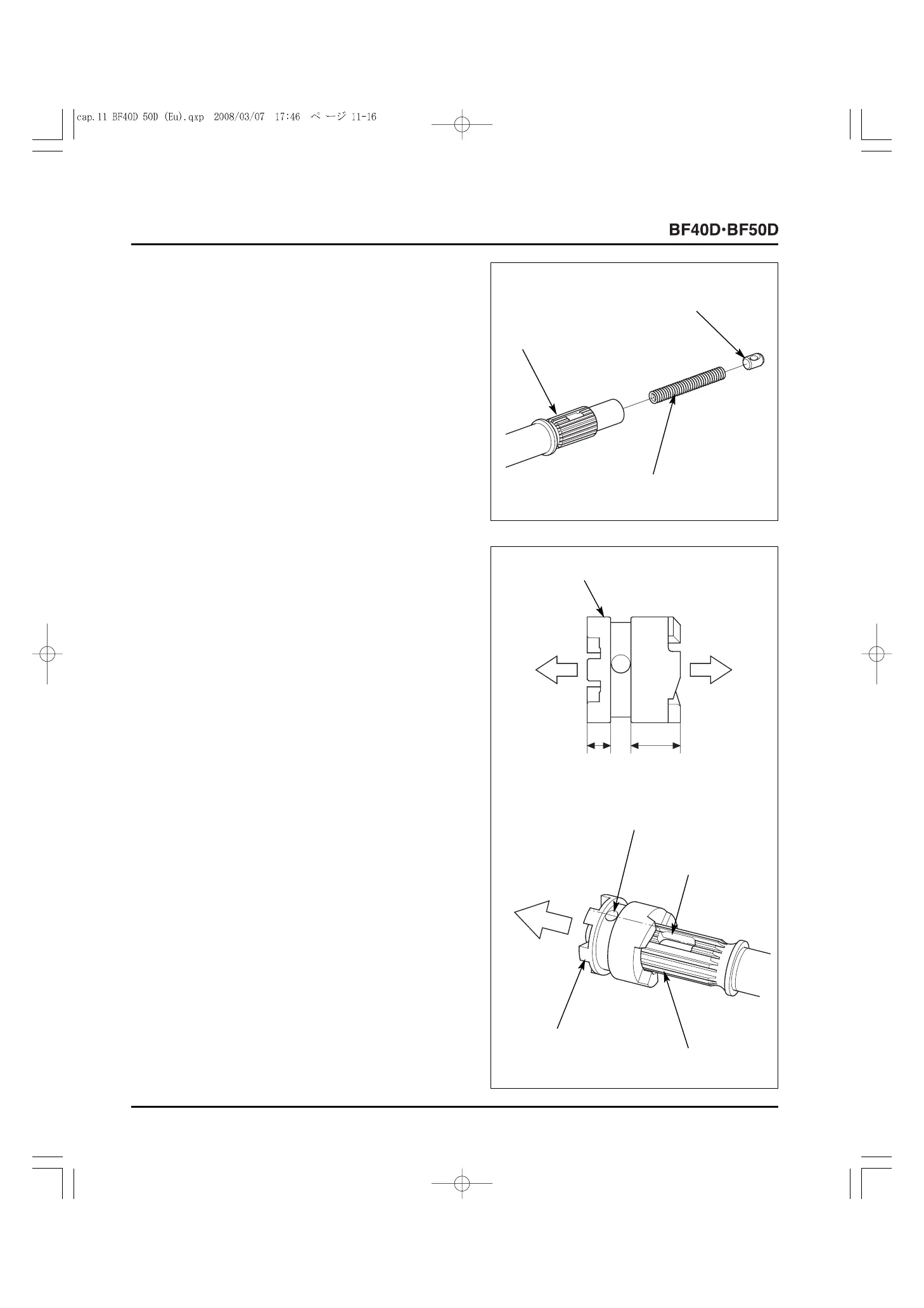

12) Install the shift spring and the shifter pin holder in the
propeller shaft.
13) Install the clutch shifter with the thinner side from the cross
pin ring installation groove to the clutch shifter end toward
the forward bevel gear side (front side) and by aligning the
6.3 x 33 mm shifter pin installation hole with the long hole
in the propeller shaft as shown.
[5]
SLOT IN PROPELLER
SHAFT
[6]
PROPELLER SHAFT
[2]
CLUTCH SHIFTER
[2]
CLUTCH SHIFTER
[1]
To FORWARD
BEVEL GEAR
[3]
To REVERSE
BEVEL GEAR
[4]
SHIFTER PIN
INSTALLATION HOLE
[1]
PROPELLER SHAFT
[2]
SHIFTER PIN
HOLDER
[3]
SHIFT SPRING
[1]
To FORWARD
BEVEL GEAR
