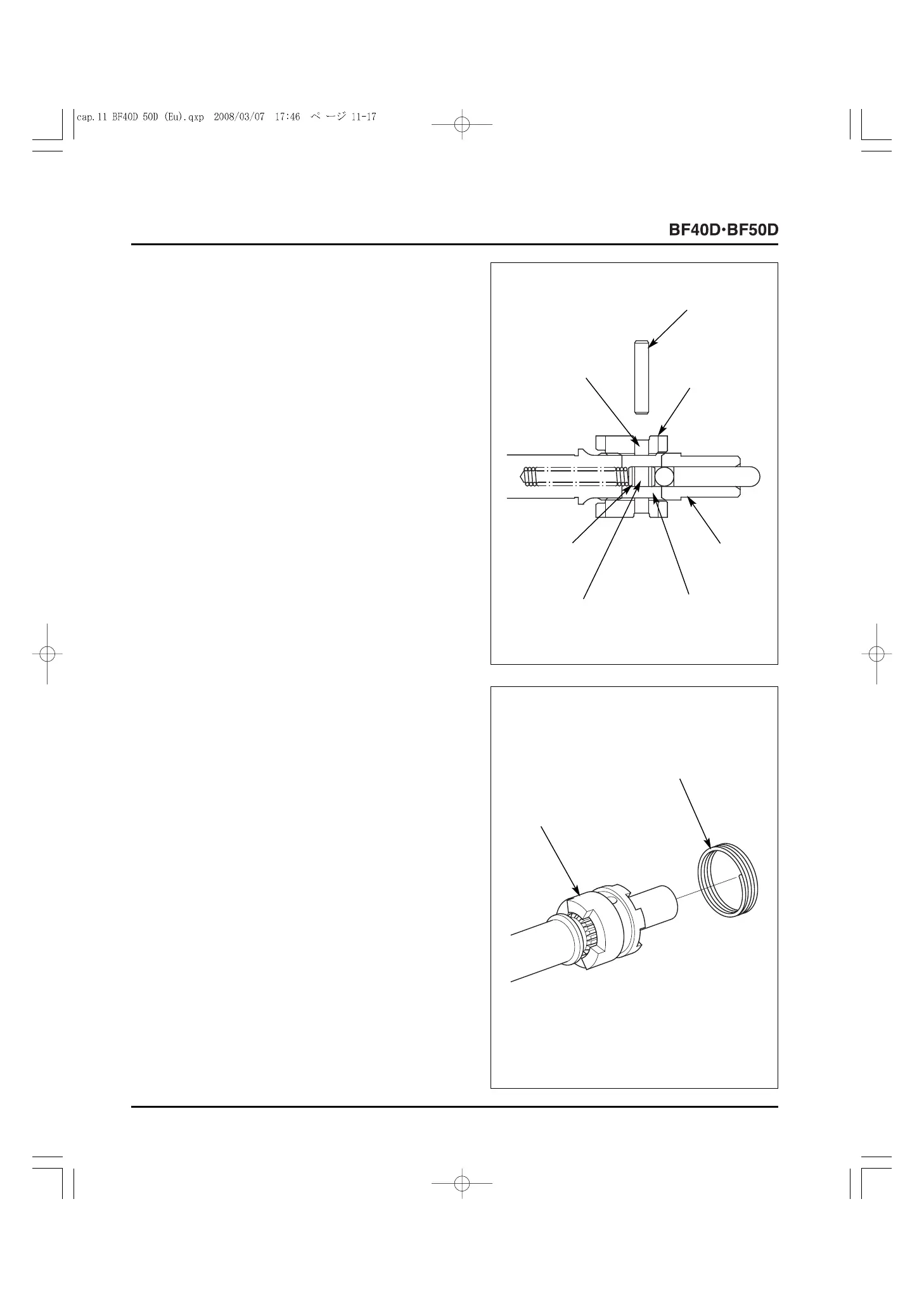

14) Install the 6.3 x 33 mm shifter pin while aligning the hole in
the clutch shifter with the hole in the shifter pin holder.
15) Install the cross pin ring on the clutch shifter.
• Check that the coils of the cross pin ring do not overlap
each other.
[3]
CLUTCH SHIFTER
[7]
SHIFTER PIN
HOLDER
[1]
HOLE IN CLUTCH
SHIFTER
[6]
HOLE IN SHIFTER
PIN HOLDER
[4]
PROPELLER
SHAFT
[2]
6.3 x 33 mm
SHIFTER PIN
[2]
CROSS PIN RING
[1]
CLUTCH SHIFTER
[5]
SLOT IN PROPELLER
SHAFT
