16) Apply marine grease to the outer surface of a new 69 x 3.1
mm O-ring and install it on the propeller shaft holder.
17) Install the 22 mm washer on the propeller shaft assembly.
18) Install the #11 steel ball and the shift slider in the propeller
shaft assembly.
• Install the shift slider with the flat end toward the
propeller shaft.
19) Install the propeller shaft assembly in the propeller shaft
holder.
20) Install the following parts.
- Propeller shaft holder assembly (P. 11-7)
- Propeller (P. 11-2)

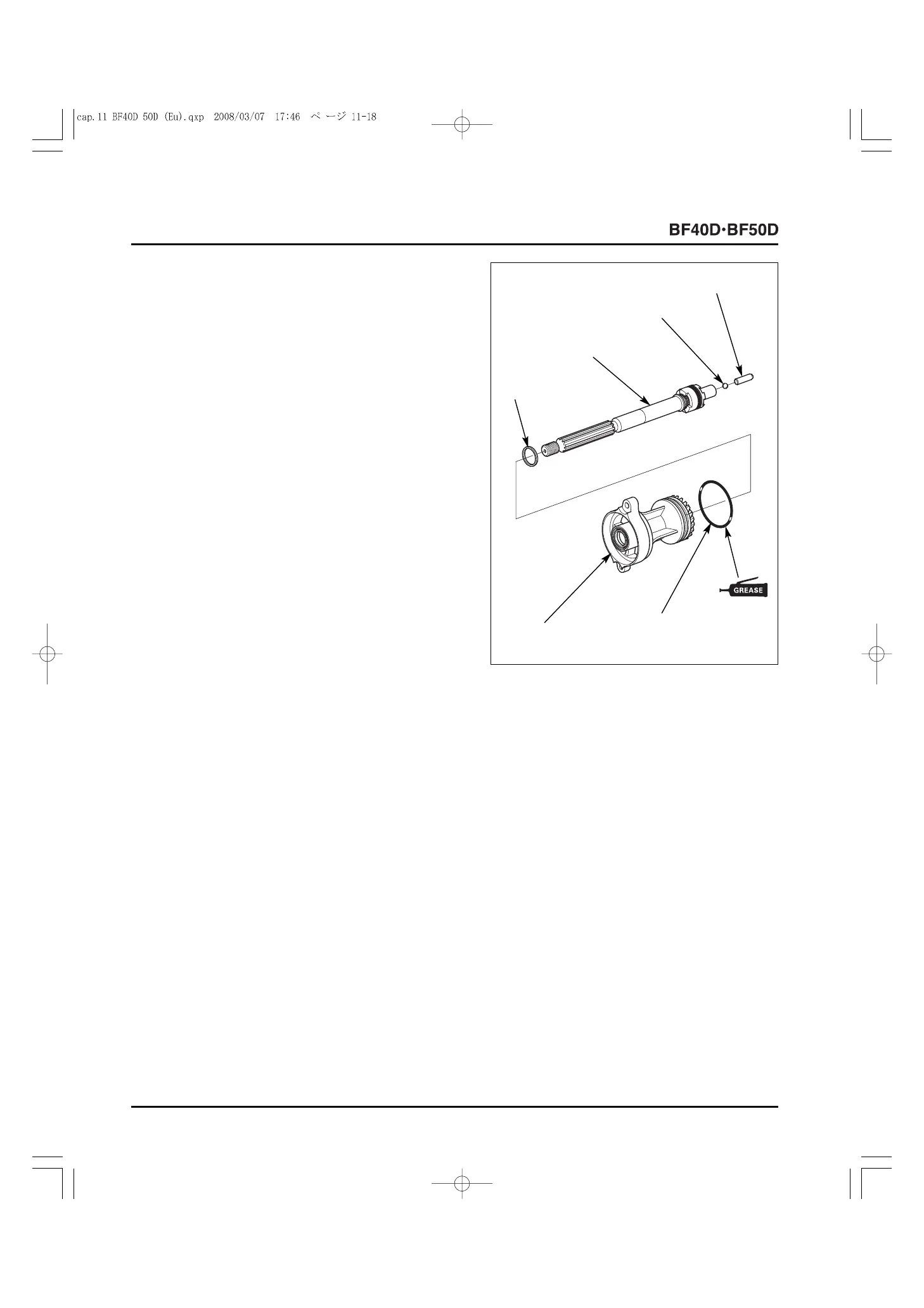

[2]
PROPELLER SHAFT
ASSEMBLY
[3]
#11 STEEL BALL
[4]
SHIFT SLIDER
[1]
22 mm WASHER
[6]
69 x 3.1 mm
O-RING
[5]
(MARINE
GREASE)
[7]
PROPELLER
SHAFT HOLDER
