7-5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

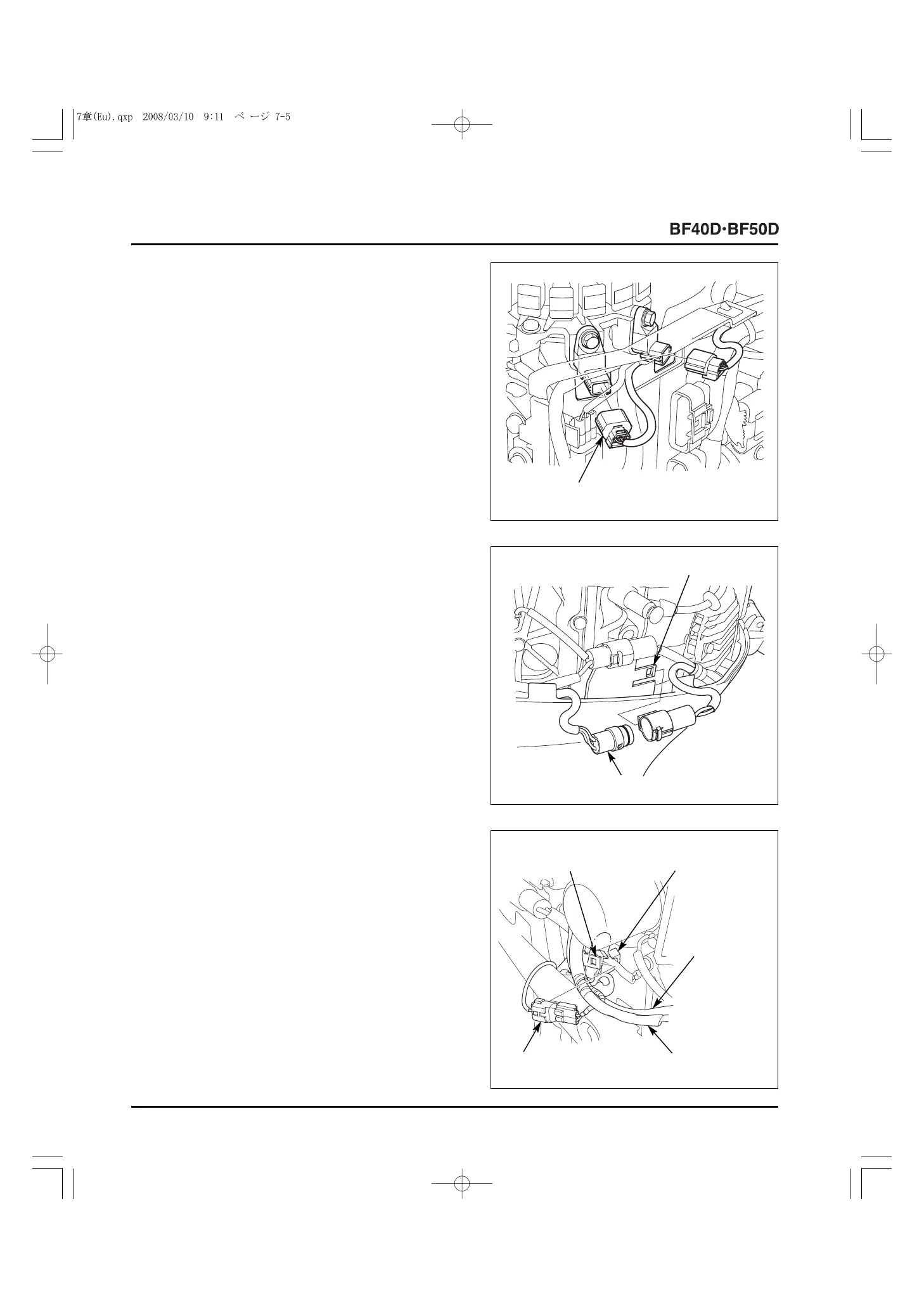

8) Disconnect the two CKP sensor 3P connectors.
9) Remove the alternator stator 3P connector from the
connector bracket B, and disconnect the connector.
10) Remove the power tilt relay 2P connector from the harness
clip bracket A [Power trim/tilt type only].
11) Release the alternator stator wire and the main wire
harness from the wire harness clip.
[2]
ALTERNATOR STATOR 3P CONNECTOR
[1]
CONNECTOR BRACKET B
[1]
HARNESS CLIP
BRACKET A
[5]
POWER TILT RELAY
2P CONNECTOR
[3]
ALTERNATOR
STATOR WIRE
[4]
MAIN WIRE
HARNESS
[2]
WIRE HARNESS
CLIP
[1]
CKP SENSOR 3P
CONNECTOR (2)
26
