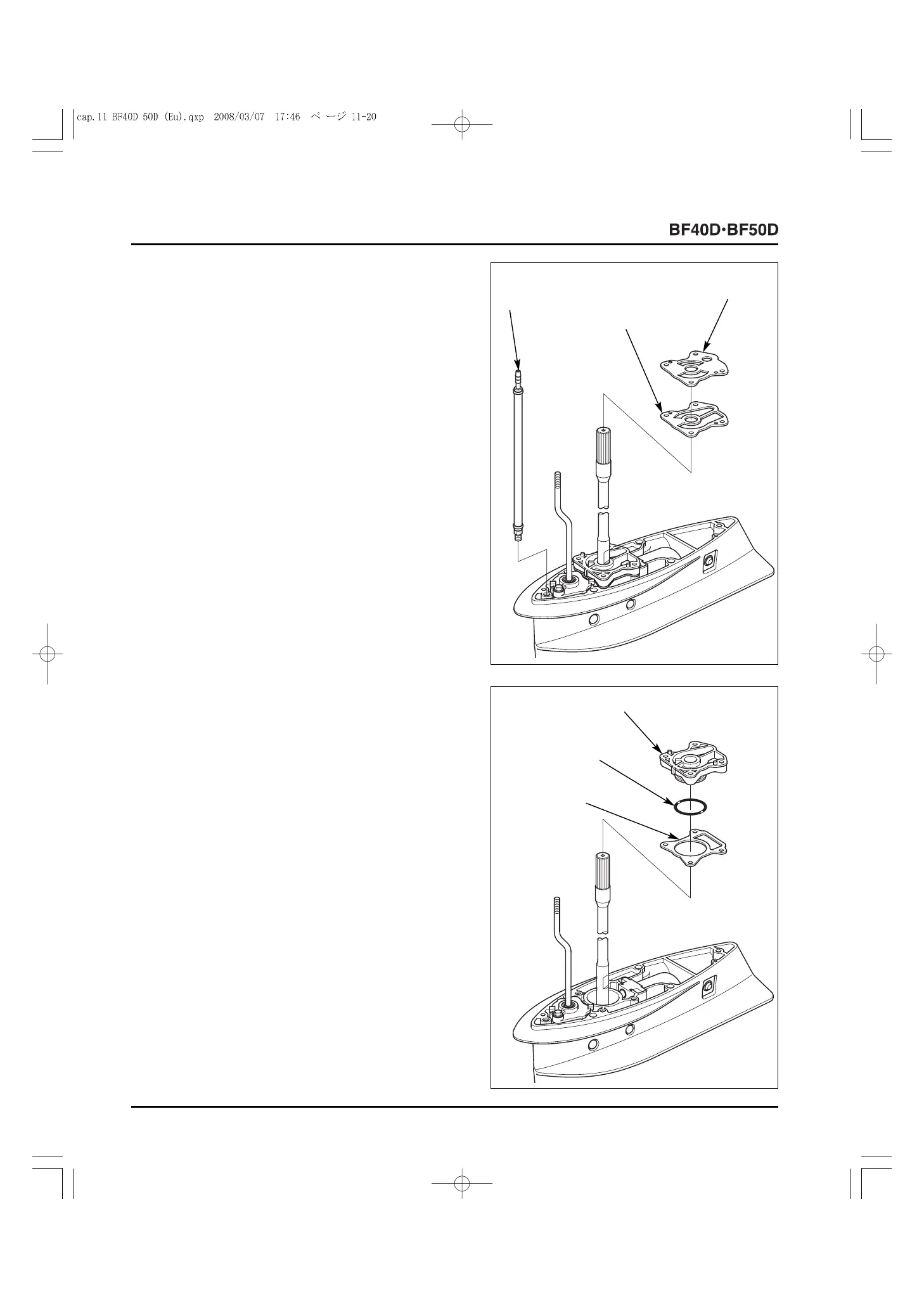

7) Remove the water pump housing and the water pump
gasket.
Replace the gasket with a new one on reassembly.
8) Remove the 41.7 x 3.5 mm O-ring from the water pump
housing.
Replace the O-ring with a new one on reassembly.
[2]
41.7 x 3.5 mm
O-RING
[1]
WATER PUMP
HOUSING
[3]
WATER PUMP
GASKET
6) Remove the impeller cover and the impeller gasket B.
Replace the gasket with a new one on reassembly.
Remove the 5 x 200 mm tube assembly from the gear case
assembly.
[3]
IMPELLER COVER
[2]
IMPELLER
GASKET B
[1]
5 x 200 mm TUBE
ASSEMBLY
